Hotfix 1: May 25, 2026
Bug Fixes
- Fixed crash when closing the Custom Material dialog.
- Fixed problem with reports not being uploaded automatically after the CET Report Uploader crashed and restarted while crash logs were still being processed.
- Fixed problem where some users could experience login issues in CET when using networks configured with default system proxy settings.
Crash Fixes
-
Fixed issue with panel specification options that could cause CET to crash when generating parts for Troax panels.
CET 17.0 Major: May 18, 2026
All Editions
News & Changes
New browser based login
- CET now uses a secure browser-based login for signing in.
Your Guide to the New Login and Sign Up Experience
Drawing Tool changes
-

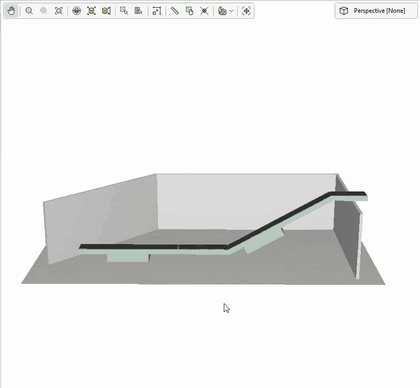

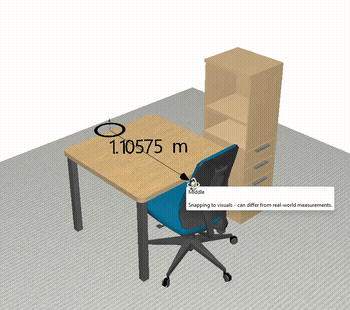

The Ruler tool in the 3D view has been improved. It now shows more clearly where it’s pointing, and the Z value is displayed separately, making it easier to measure height differences between objects.
Using Drawing Aids -
Snapping in 3D has improved. Previously, it often failed to detect 3D objects, but it now finds them automatically by default. Keep in mind that snap points are only as accurate as the 3D models themselves, unless the manufacturer provides more precise data. A helpful note appears when snapping to points that haven’t been explicitly defined by the manufacturer.
-

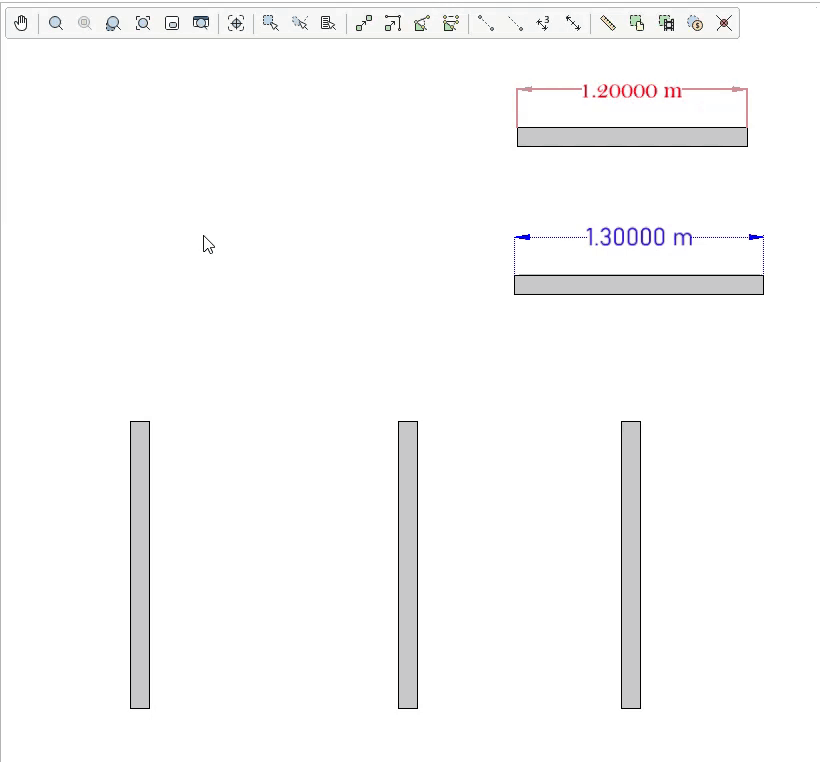

Reusing your dimension settings is now as simple as copy and paste. When you paste a single (non-chain) dimension, you can adjust its length while keeping other properties, such as style and categories. This also works when inserting a favorite that contains a single dimension. If you want to keep the original length and orientation, you can enable the “Keep length” option in the properties box.
- 3D Drawing tools from the Tools Extension now show a preview in the 3D view while being drawn.
- Updated the Help dialog text in the Tools Extension for 3D Drawing tools, Construction, and Replicate to make it clearer and more accurate.
Error Load dialog
- Introduced a redesigned and unified error dialog with clearer crash information, improved diagnostics and support tools, resizable layout, text wrapping, and consistent behavior for load and background errors.
Office Accessories - Visual & Catalog changes
-
We’ve significantly improved the Office Accessories Extension to deliver a more modern and realistic visual experience, along with a broader product selection.
What’s new:
• Enhanced graphics for many accessories
Updated models and materials better reflect real-world products.
• Built-in lighting and shading
Objects now include built-in lighting and shading effects, creating more realistic depth and lighting in typical office layouts.
• Updated designs for existing products
Outdated accessories have been refreshed to match current design trends.
• New office accessory products
Additional decorative, stationery, and appliance items have been added to expand design options.
• More color and material options
Many accessories now include additional color and material choices, giving designers more flexibility to match brand and interior schemes.
Navisworks available without separate License
Now possible to export to Navisworks from the ‘Export Drawing’ dialogue in all CET editions without installing the Navisworks Extension or adding a separate license.
Improvements
Calculation related enhancements
- Added a new validation for order exports in Calculations that can show a warning in the System Validation dialog when the List Price does not match the Base Price plus total option upcharges. This warning is only shown when the corresponding setting is enabled in the Control Panel.
- Calculations tab in CET Control Panel now has a Help Hialog.
- Added a checkbox setting to hide the summation type label in the Article View Summary. The option can be enabled in View Settings (Calculations) and in the Article Views section of the Print Reports dialog.
Catalog downloader Improvements
- Updated the Catalogue Downloader UI to keep the Recently Completed section expanded, show up to 100 recent items, and allow all completed items to be cleared at once.
- The previous “Catalogs Not Yet Downloaded” dialog has been replaced with a non-blocking warning banner to improve how missing catalogs are communicated and reduce user disruption.
Improvements to Walls and Architectural tools
Improved texture mapping for symbols in the Walls Extension so materials align and scale more accurately with the models. The following symbols are affected to varying degrees:
• Arched walls
• Doors (all types)
• Windows (all types)
• Windowsill
• Venetian blinds
• Curtains
• Radiator
• Drain
• Picture frame.
Below is a sample comparison showing the appearance before (left) and after (right) the change:
- Split the Accessories section in the Walls Extension into two sections: Doors & Windows and Accessories.
- Renamed 'Place text on wall' to '3D Text' and 'Place image on wall' to 'Picture frame' to better describe what these components do."
- Updated terminology in the Walls component tab by renaming several states in the Wall settings Appearance dropdown (for example, Normal to Solid, Transparent to Outline) to make them easier to understand.

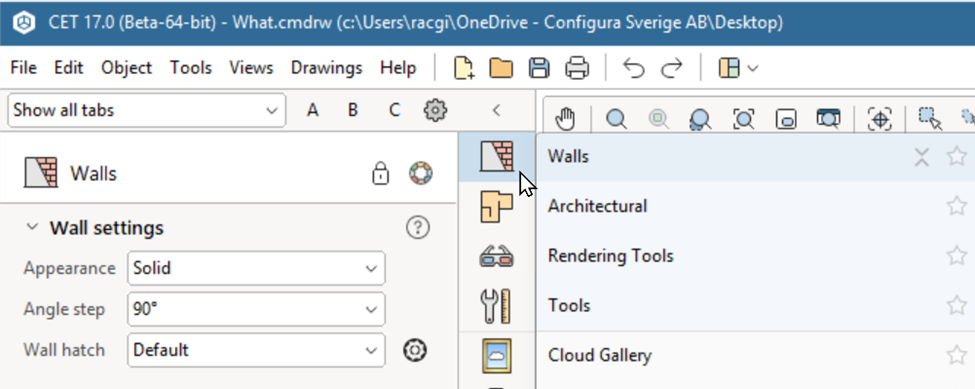

- Improved the Wall component tab's Angle step and Wall hatch dropdown menus by replacing technical or unclear terms (such as 0° and Normal) with more descriptive names like None, Crossed, and Lined.
- Renamed DWG Tools to CAD Tools for consistency with the Tools Extension.
-

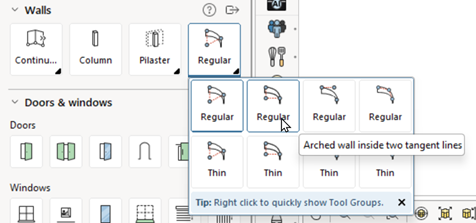

While placing Straight walls or Arched walls specified by a radius and angle, the Alignment setting is now higher in Quick Properties and includes clearer Left and Right toggle options.
Drawing Straight Walls
Drawing Arched Walls Specified by Radius and Angle -
Updated the icons for Mirror & flip tools in the Walls Extension to adhere to current design standards.
- Improved Swedish translations in the Walls, Architectural, and Tools Extensions for clarity and consistency.
Other Improvements
- Added missing degree symbols to the camera step angles in the Views tab of the Control Panel.
- Added the ability to crop photo renderings when using Insert Rendering and Load Image in Paper view.
- Removed the ability to scale manufacturer-provided materials in the Option Select dialog within Schemes and Quick Properties.
- Improved IFC export to include mezzanines, and user placed floors when the "Include architectural objects on exporting" setting is enabled.
- The Ind. Tag column now supports group editing for merged line items.
- Split by is now enabled by default for the Ind. Tag column.
- Added a new setting to the Calculation tab in the Control Panel to standardize Ind. Tag reset behavior. The following options are available:
• Legacy: Original behavior based on manufacturer code
• Part Number Only: Resets the Ind. Tag content when any part of the part number changes
• Part Number or Options: Resets the Ind. Tag content when any part of the part number or a specification option changes
See the CET Calculation Control Panel Help dialog for more details.
Working with Tag Text
The Calculation Tab - Added a new “Check Drawing” option to the Tools menu in the CET menu bar, providing access to the System Validation dialog.
- Photograph setup and Post processing now switch independently between Simple and Advanced modes
- Removed Filmstrip view option from Save and Load dialogs.
Saving a Drawing - Added a new “Validate before export” setting for order exports in the Calculations tab of the Control Panel.
Exporting Article Views to SIF -
Removed the Set password option from the Info tab in the File menu.
Drawing Information -
Redesigned the File > Info menu to align with other menus, including relocating the Set State and Recover buttons and updating the layout for Extension dependencies.
Drawing Information - Removed the Protect Document option from the File > Info menu in the Drawing Info Page.
-
Updated Japanese translations in the Architectural and Tools Extensions and Material Lab for clarity and consistency.
Fixes & Enhancements
Crash Fixes
- Fixed issue with rendering preview images in Calculations.
- Fixed a problem where option rows in the Upcharge column in Calculations did not convert currency correctly.
- Fixed issue where extensions could update the picklist after it had been closed, resulting in a crash.
- Fixed issue with cropping outside of image in PhotoLab causes crash.
- Fixed issue that could cause CET to crash when starting Twinmotion from certain material handling drawings.
- Fixed issue where Elevation view causes CET to crash when performing undo action.
- Fixed issue where a background crash warning could be shown when adding or changing components in a drawing with the "Assign objects to nearest level" setting enabled.
- Fixed issue where CET would crash if the rightmost tick of a Chain Dimension was removed by the edit tool accessible through double-clicking it.
- Fixed issue where Undo after cancelling a Chain Dimension could unexpectedly clear the Undo history or cause a crash.
- Fixed issue where the notification banner could be updated after being closed, resulting in a crash.
- Fixed issue that could occur when importing a CAD file into a drawing with Autodesk DWG TrueView 2026 installed, where the Import File dialog could crash CET to desktop without warning.
- Fixed issue where CET would crash if the file path in PMX export was empty.
- Fixed issue where CET could get stuck during startup due to issues with the Windows Background Intelligent Transfer Service (BITS).
Bug Fixes
- Fixed problem where hatched wall sides in Elevation views were not assigned to the Architectural category causing hatching to remain visible when the Architectural category was filtered out. The hatching is now correctly categorized and will be hidden when the Architectural category is hidden.
- Fixed problem with incorrect Japanese translation in ‘Wall Scheme’ to ensure accurate text display for users.
- Fixed problem with walls not following the selected ‘Outline’ appearance after restarting CET, ensuring the drawn wall matches the dropdown setting
- Fixed problem where repeatedly placing doors and windows with double‑click could make new ones “stack” at the elevation of the last inserted object instead of staying at the default height.
- Fixed problem where section labels used “and” instead of “&” and changed “Windows” to “windows” in Doors & windows and Image & text, matching our design system guidelines.
- Fixed problem where the Window Elevation settings in Wall schemes could not be set to 0". This fixes a problem where the wall base trim did not get correctly removed when a window was placed on the floor.
- Fixed problem where using Level Split in an invalid area could incorrectly add a 3D Custom Shape.
- Fixed problem where overlapping curved walls could generate strange ceiling and floor surfaces. Curved walls now behave like straight walls when they intersect, reducing glitches in corners and along the ceiling and floor, in both new and existing drawings.
- Fixed problem where the Elevation View mark was hidden by Floor coverings.
- Fixed problem where some DWG lines are missing in 2D after import.
- Fixed problem where model lab fails to load certain Gltf models.
- Fixed problem with copying images from Photo Lab into Drawing View and Paper View.
- Fixed a problem where Dimensions in Paper View, except the first inserted, would become huge during insert.
- Fixed problem where renderings become overexposed after reopening Photolab.
- Fixed problem with top-level feature options appearing with their own line in the Query dialog.
- Fixed problem with not being able use a comma ',' in the Quantity column in a picklist.
- Fixed problem with unable to apply custom Ind. Tags for a grouping applied with Split By settings in Calculations.
- Fixed problem with special prices not updating when a Part’s pricelist currency differs from the special's currency.
- Fixed problem with parts that contain custom options in the Query dialog not showing in the Article Views in Papers.
- Fixed problem with Ind. Tags in 2D view resetting position when the tag lock is on.
- Fixed problem where dimensions inserted directly in a 2D View Clip in Paper Space were not clipped correctly by default. Also fixed a problem where IND tags outside of the View Clip would incorrectly become visible after inserting a dimension directly in a 2D View Clip.
- Fixed problem where 2D View Clips would move erratically when resized while it had the "Show scale" add-on.
- Fixed problem where the 'Show hidden components in selection' feature would display graphics from all view modes, making selections look cluttered. The graphics will now reflect how objects appear in the Normal view mode, only falling back to all graphics when a object has nothing visible in Normal.
- Fixed problem where part tags that do not exist in the Part Tag dialog could appear in Calculations after copying part-tagged components from another drawing.
- Fixed problem where certain objects were not shown correctly in the Colored Tags view mode. The Colored Tags view mode now also displays tag colors in 3D, in addition to the 2D.
- Fixed problem where the Catalogue Downloader could become unresponsive during synchronization or download.
- Fixed problem where Catalogue downloads could fail due to port conflicts. Catalogue downloader now automatically switches to available ports.
- Fixed problem where on-demand catalog downloads could be delayed, causing required files to start downloading later than expected.
- Fixed problem with certain catalogs getting stuck during download, preventing missing symbols from downloading until CET was restarted.
- Fixed issue where the Catalogue Downloader could crash when encountering invalid or unexpected data during catalog synchronization.
- Fixed problem where manually entering a radius value for corners in the Custom Shape tool did not apply the typed value but instead kept the previous radius from the animation.
- Fixed problem where the Measure Tool ruler flickered or disappeared due to Z-fighting when measuring flat surfaces.
- Fixed problem where many line tools, such as 'Help line', did not snap to other symbols when the 'From XY' (pitch) property was locked to 90 or 270 degrees.
- Fixed problem where 3D Dimensions had noticeably different snapping geometry compared to 2D Dimensions.
- Fixed problem where Draw Text padding changed based on how far you were zoomed in or out when starting the insert animation. Padding is now consistent in both model space and paper space, so your text gets the same clean margins no matter your zoom level.
- Fixed problem where CET could freeze or become unresponsive when using Lasso Selection or Lasso Calculate on a large area of many symbols.
- Fixed problem with IFC symbols being incorrectly positioned on import.
Fixed problem with Extensions not remaining turned off after restarting CET. - Fixed problem where the Quick Properties would disappear when a user used the PAGE UP / PAGE DOWN hotkeys to move an object vertically.
- Fixed problem where vertical scrollbars in resizable dialogs did not update their scroll range when the dialog was maximized, resulting in empty space at the bottom until the user scrolled again.
- Fixed problem in the Lights Extension where saving a Global lights preset appeared to succeed but did not actually create the preset file. Global lights settings are now correctly saved to file when using the Save option.
- Fixed problem causing camera updates to be counted as undo steps, which previously limited the effectiveness of the Undo feature.
- Fixed problem where cmsym and cm3d are missing LODs after exporting from model lab.
- Fixed problem with a Flooring transition tile not printing correctly in PDF prints
CET Edition Specific Release Notes
CET Commercial Interiors
News & Changes

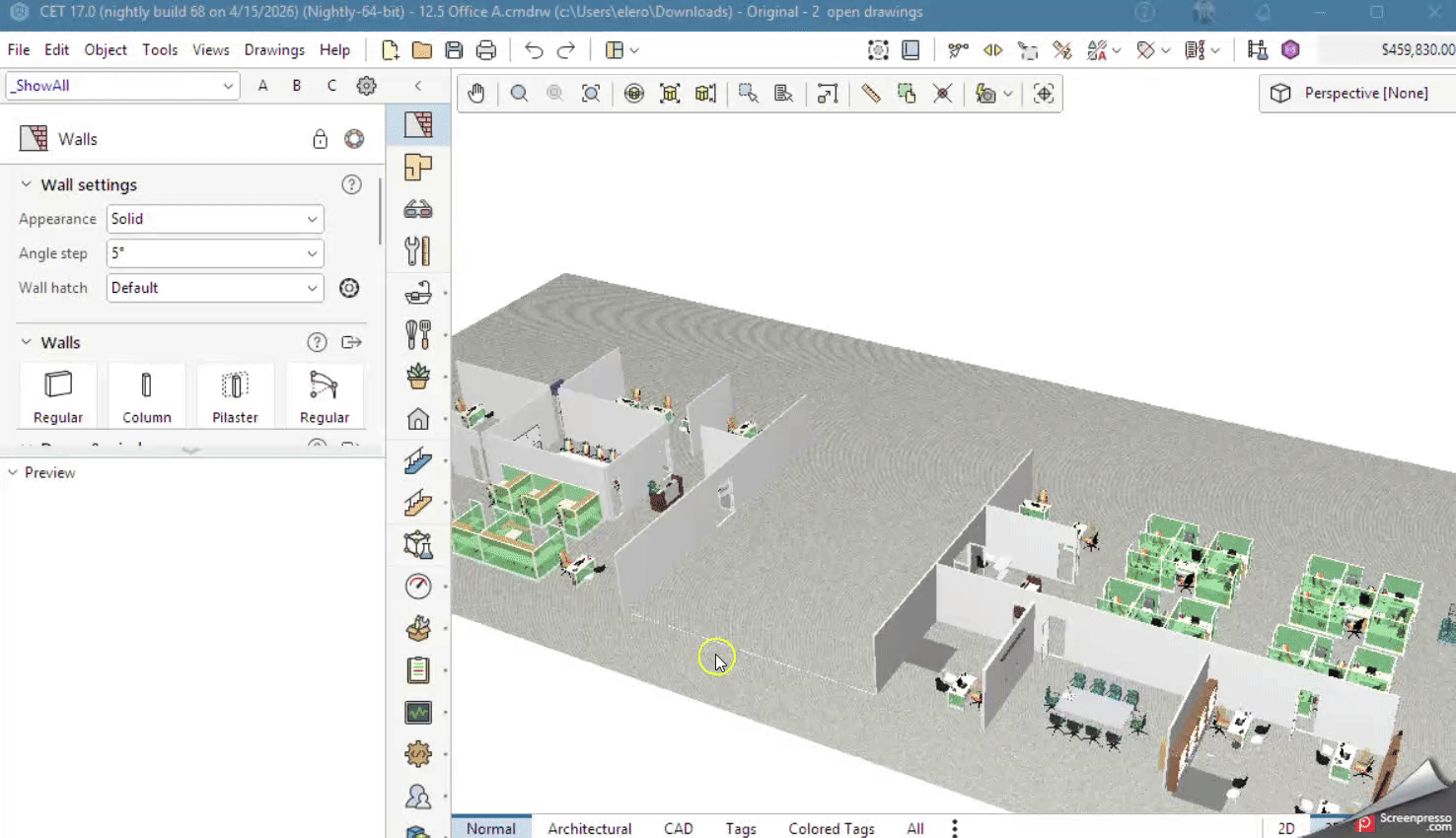

Web Viewer for CET drawings:
-
Added a new Web Viewer Exporter that allows exports of CET drawings in a format viewable directly in a web browser. Note that the Extension requires a separate license available in the Marketplace for the Kitchen & Bath and Commercial Interiors industries.
Web Viewer Export Extension for CET
Export & Integration Updates

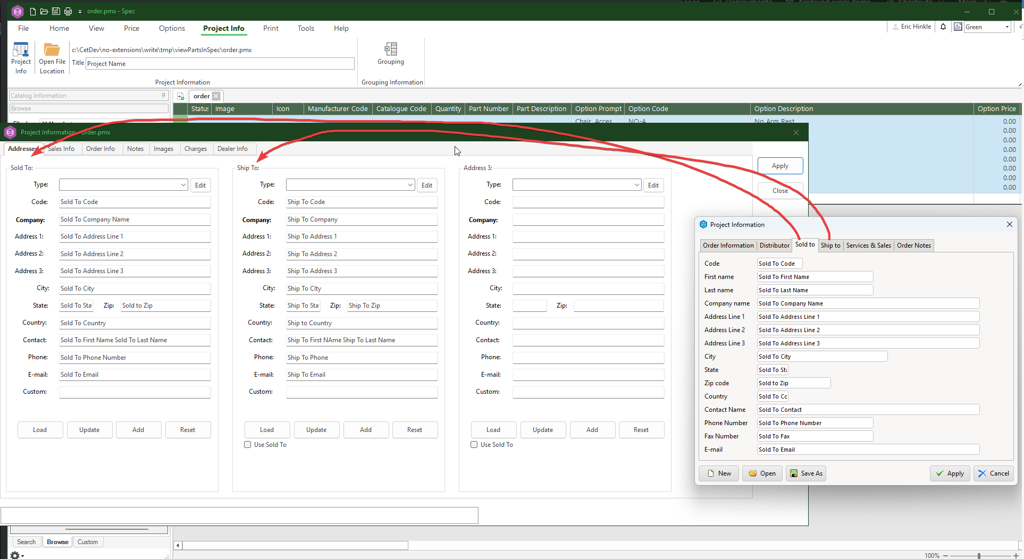

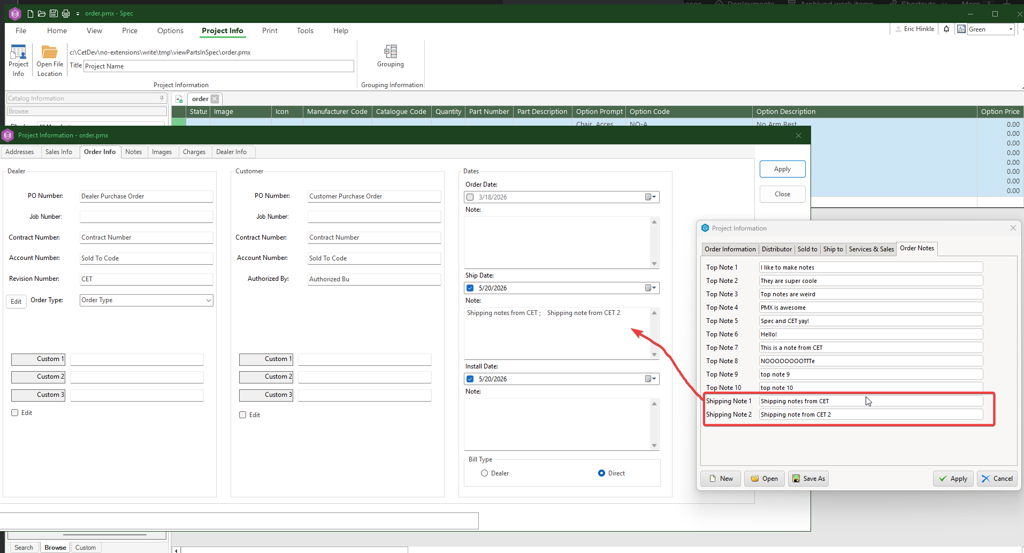

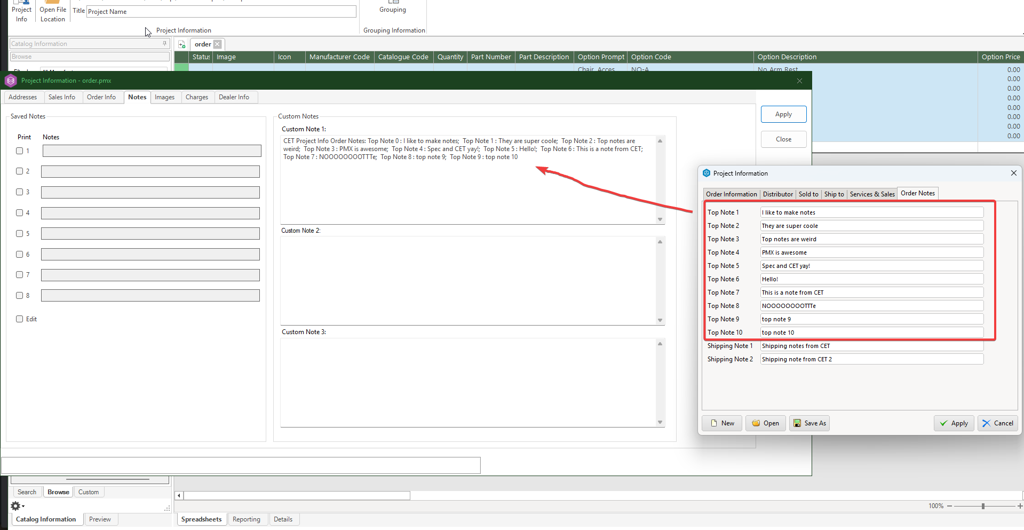

- PMX order exports will now support CET project information and appear in the Project Information section in Spec.
The Project Info Extension
View Parts in Spec
Exporting in Commercial Interiors Library

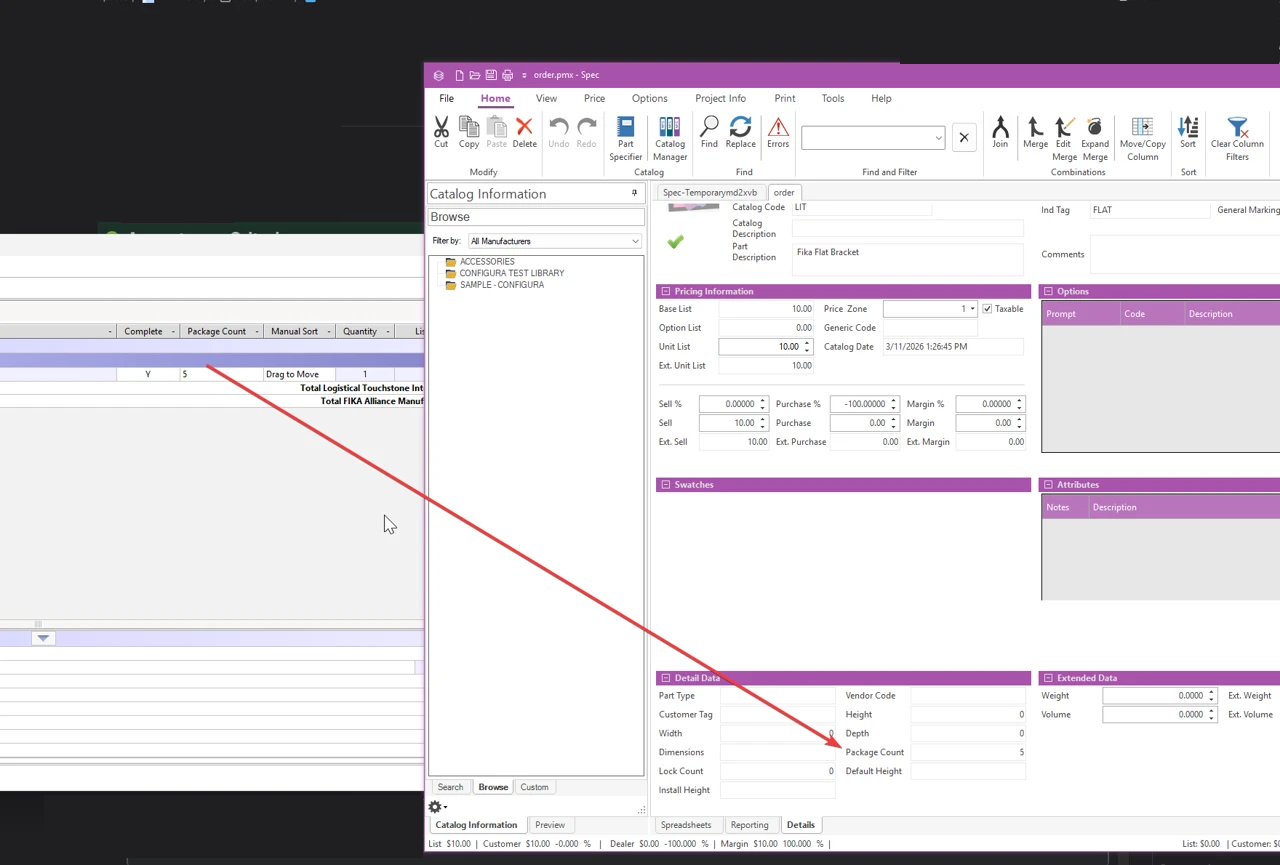

- Package Count from Calculations in CET will now export to Configura SIF, PMX, and OFDA XML. PMX will import Package Count in the Details tab of Spec for products with an entry

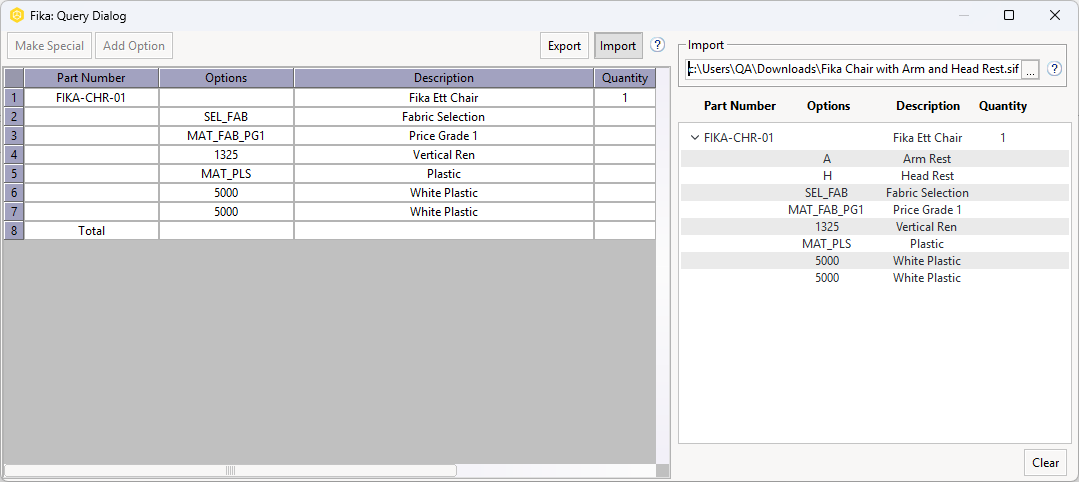

Query Import

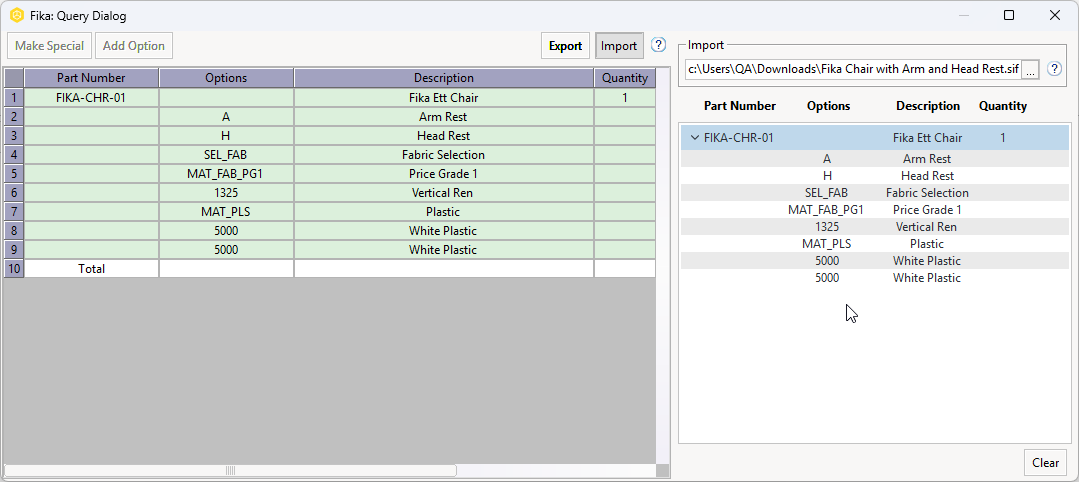

- The Core Query dialog now includes a robust import feature for importing and applying custom special data to an object. Supported import formats include SIF, OFDA XML, and PMX.
Improvements
We’ve introduced a new Ind. Tag feature to help standardize reset behaviour. A new setting has been added to the Calculation Control Panel for Ind. Tag reset behaviour, with three options: - Legacy – The original behaviour. In an Extension, reset behaviour depends entirely on the manufacturer code. - Part Number Only – Resets the Ind. Tag content when any part of the part number changes. - Part Number or Options – Resets the Ind. Tag content when any part of the part number or a specification option changes. See the CET Calculation Control Panel Help dialog for more details.
Added Help dialogs to the Query dialog.
Query Dialog & Making Specials-
The Query dialog now includes horizontal and vertical scrollbars and uses a fixed dialog size for products with many components and options, preventing dialogs from automatically expanding in size.
Query Dialog & Making Specials -
The “Make/Change Special” and “Create Special” dialogs now display the current currency next to the Amount field.
Query Dialog & Making Specials
Fixes & Enhancements
Bug Fixes
- Fixed problem with custom options added in the core Query dialog not exporting to PMX in Order Exports.
- Fixed problem with Flooring transition tile not printing correctly in PDF prints.
- Fixed problem with the Manufacturer data field not importing in the Custom Materials tab for COMs when loading a downloaded material from Material Portal.
CET Material Handling
News & Changes
Mezzanine Beta Feature to fully supported feature:
Introduced Essential Mezzanine Extension, now available to all CET Material Handling users on Configura Marketplace.
New Mezzanine Improvements
- Added a new Chain Gate under Gate section in Essential Mezzanine, featuring railing and a chain safety barrier as an alternative to the tilt gate, using the same gate size and dimensions. .
- Added support for stairs to integrate with racking mezzanine systems, where inserting stairs now automatically creates floor cut-outs.
CollabPro Improvements & Changes
- Added support for logging all CollabPro error responses and events related to loading and closing projects and customers, both local and remote.
- Added support for automatically attaching the CollabPro log files to the Send Feedback dialog when submitting a bug report.
- Improved the CollabPro Project Dialog to use a different highlight color for reference files in the Open files list, distinguishing them from selected parent files.
- Added maximize and minimize buttons to the CollabPro File Manager dialog.
- Removed the Mini Dialog from CollabPro.
Sketch&Build - Custom Profiles
- Added support for importing custom profiles in Sketch&Build, allowing users to name and apply imported profiles to S&B lines alongside standard profiles.
- Added ability to rename or copy custom profiles within the user’s profile library in Sketch&Build.
- Improved profile import workflow to handle cases where an imported profile shares a name with an existing profile by using a global unique ID (GUID) for identification.
- Added functionality to save profiles contained within imported drawings to the user’s profile library in Sketch&Build.
- Added option to delete custom profiles from the user’s library without affecting profiles embedded in drawings.
- Improved workflow for creating a custom profile and applying it to drawings in Sketch&Build.
Other Improvements
Improved Navisworks export to exclude floor snappers that are not visible in the 3D view, ensuring consistency with DWG export behaviour.
Updated toolbox icons for Spread Tools and Unit Load Legend icons in Essential Pallet Racking, Essential Deep Racking, Essential Shelving, Essential Cantilever, and Essential Racking to match the new visual design.
Fixed problem causing block snappers to become share blocks after saving a section as favorite in CollabPro.
Improved beam generation logic to prevent vertical columns from being added to aisles and prevent placing any purlin at cut-outs, ensuring only crossbars are present between racks as per construction standards.
Improved the ability to select individual beams and columns by updating all structural beams to be separate objects.
In Sketch&Build, removed snapping to profiles in the Sketch view mode to improve placement accuracy when adding upright columns at intersections.
- Fixed problem in the Sketch & Build extension where the tooltip for the Flat Bracket was shown as ‘Bracket’ instead of ‘Flat bracket’.
- Fixed problem in Sketch & Build where using the Block dialog to convert an assembly to a Block using the 'to Normal Block' button had no effect.
- Fixed problem where clicking on structure lines at distant zoom levels did not reliably open the Profile Alignment dialog, causing clicks to be interpreted as zoom actions instead.
Combined the 'Apply profile' and profile preview buttons into a single button in the Sketch & Build component tab to streamline profile application workflows.
- Added a shortcut to open the help article for Sketch & Build directly from the Sketch & Build component tab header.
- Renamed the Sketch & Build component tab header from ‘Sketch and Build’ to ‘Sketch & Build’ to align with the design system.
- Renamed the ‘Favourites’ section in the Sketch & Build profile window to ‘Favourites’ for consistency with American English spelling.
- Introduced a 2D view for the preview in the Preconfigurator with front and side orthographic views to make it easier to review configurations from different angles.
- Added support for inserting decking on top of shelving and wide-span racking to increase storage capacity.
- Added option in Bay Editor and Frame Editor to toggle the visibility of dimensions and facing direction arrows.
- Added support for changing beam height in Deep Racking. Only applicable for Pallet Live and Push back rails
- Added new vehicle symbols, including Fire Trucks (US and EU), Vans, Industrial Trucks, and Semi-Trailer/Semi-Truck, under Industrial Equipment extension > Vehicles.
- Added support for user‑uploaded logos on both sides of Vans and Industrial Trucks, and updated trailer‑only mode to extend the support in the middle down to the ground.
- Added a shortcut to open ‘Material Explorer’ directly from the Sketch & Build section header for quicker access.
- Added support for placing decking on the upright foot in Essential Cantilever.
- Improved CollabPro project loading to ensure only one subscribe request is sent per project load, preventing redundant subscribe requests.
- A new feature has been introduced to support stacked pallet patterns for unit loads. This enhancement is available exclusively for the Beumer Edition.
Fixes & Enhancements
Crash Fixes
- Fixed issue that could occur when ending the remover animation with the Escape key in the Essential Deep Racking Frame Editor after starting an insert animation.
- Fixed issue that could occur with duplicate subscribe requests resulting in a background crash when syncing a CollabPro project with interrupted internet connectivity.
- Fixed issue crash causing block snappers to become share blocks after saving a section as favourite in CollabPro.
- Fixed issue with a crash when reloading a CollabPro section after saving and importing normal block as a favourite.
Bug Fixes
- Fixed problem where Navisworks export included additional floor spaces not present in the 3D view
- Fixed problem where the offline status indicator remained visible after reconnecting to the internet if the connection was lost during the initial loading and syncing of a project in CollabPro.
- Fixed problem causing tooltips to be hidden during dialog syncing in the CollabPro dialog.
- Fixed problem causing duplicate part tag categories with the same name to appear in the Part Tag dialog after syncing in CollabPro.
- Fixed problem causing users to be removed from the project after reconnecting to the internet in CollabPro.
- Fixed problem causing multiple Project Info entries to be created in CollabPro during file copying and upload operations.
- Fixed problem where CET would create copies and backups of Data Files when editing or releasing the file from edit in CollabPro.
- Fixed problem where renaming a part tag in the Part Tag dialog did not update the tag name correctly in the dialog and in the Activity Log on the web when quickly creating and renaming a new part tag.
- Fixed problem causing the frame in 2D elevation to go missing after undoing property changes in Bay Editor.
- Fixed problem causing bracings to pop out of the rack when using Frame Apply on Essential Cantilever racks with differing Section Depths in both single-sided and double-sided configurations.
- Fixed problem where the Move row function was unavailable when using All Double layouts.
- Fixed problem where stretching the width or depth of large racking systems could cause significant system slowness.
- Fixed problem where the Pallet Racking Legend background could cover the selection outline.
- Fixed problem where previously configured pallet racking bays could not use Support Bar runners with the 3‑runner option when loading old drawings.
- Fixed problem where dragging a backfence in group select mode could unintentionally move the entire racking row.
- Fixed problem where shelf configuration names did not rotate together with the shelving.
- Fixed problem in the Sketch & Build extension where copy-pasted Flat brackets would sometimes get the wrong dimensions.
- Fixed problem in Sketch & Build where objects inside assemblies (or blocks created via right‑click → Create block) would in some rare cases appear at the wrong elevation.
- Fixed problem causing lines to continue downwards below the floor when stretching or drawing from a start point above z=0 with a fixed length set in the Quick Properties, resulting in the line being offset by the elevation value.
- Fixed problem where Sketch & Build extrusions did not show insertion feedback in the 2D view when added to a closed ring of sketch lines, so insertion graphics is now visible in both 2D and 3D.
- Fixed problem in the Sketch & Build extensions where sketch lines did not display correctly in the 2D when placed vertically.
- Fixed problem with beam textures displaying as stretched instead of showing properly.
- Fixed problem where elevation animation in 3D did not work for Marking & Signage objects that snap to walls.
- Fixed problem where Quick Properties selected the hint instead of the first input field in Sketch & Build tools. Also added hints to all tool animations.
CET Kitchen & Bath
News & Changes
General Changes
Web Viewer for CET drawings:
-
Added a new Web Viewer Exporter that allows exports of CET drawings in a format viewable directly in a web browser. Note that the Extension requires a separate license available in the Marketplace for the Kitchen & Bath and Commercial Interiors industries.
Web Viewer Export Extension for CET
- When importing IFC files in Kitchen & Bath, CET now allows only one floor to be selected. This prevents issues caused by importing multiple floors in a single-floor workflow.
- Added validation to detect missing supplier pricing in an Extension.
- Improved automatic placement of adaptation texts.
- Improved order management for suppliers.
- Added support for NCS colors.
NCS Extension for Kitchen & Bath Industry
Essential Kitchen backend
- Added position numbers on cabinets to help connect printouts with calculations.
- Now possible to click and drag worktop edges without releasing the mouse for easier adjustments.
- Added support for NCS colors.
Fixes & Enhancements
Bug Fixes
General Changes
- Fixed problem with adaptation text and graphics not being visible in printouts.
- Fixed problem with built-under fans not cutting away the bottom of wall cabinets correctly.
- Fixed problem with edge texture alignment on corner worktops.
Essential Kitchen backend
- Fixed problem with inserted cabinets not aligning plinth height with existing cabinets.
- Fixed problem with cabinet measurements being visible in worktop view mode.
- Fixed problem with cutouts being removed when rotating a group of worktops.
- Fixed problem with splitting and stretching worktops resulting in incorrect worktops.
- Fixed problem with cabinet chooser search not working for certain words.
- Fixed problem with incorrect icons shown in the cabinet chooser dialog for certain cabinet widths.
- Fixed problem with sink icons not being included correctly in the Extension.
Comments
0 comments
Please sign in to leave a comment.
