The Flooring products section on the Flooring tab houses all available products for use within your projects.
It is separated into a Catalogue tab, which shows the available manufacturer catalogues, and a Palette tab, where products that you have selected will appear for use within projects.
Two catalogues come with the Flooring Extension itself: one based on Metric measurements, and one based on Imperial measurements. These products cover the majority of tile sizes used in the US.

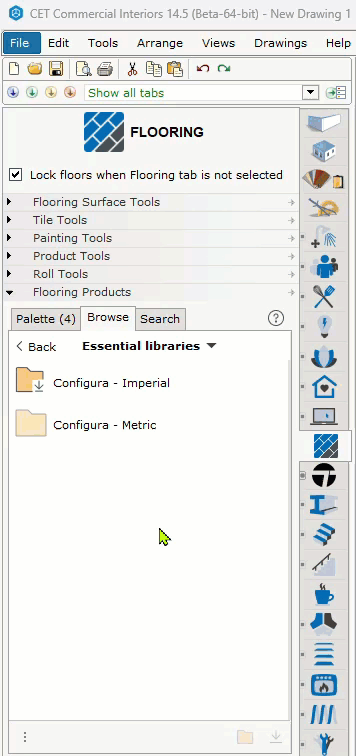

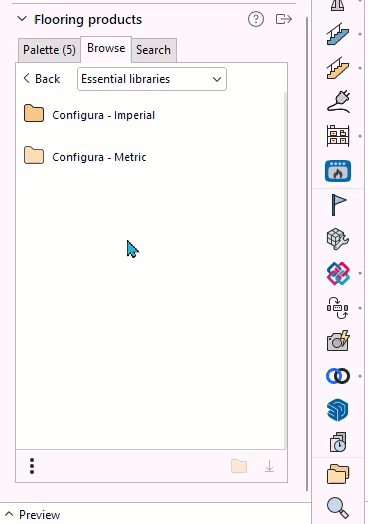

The Catalogues tab
On the Catalogues tab, there is a top-level catalogue with products underneath. Each product then contains different colors/finishes. Hovering with the cursor over a color shows a larger preview with information such as size and part number.
- Checking the box to the right of a color makes it available in the Palette within the current drawing.
- Clicking the star makes it a favorite and as such available within all instances of CET during and outside of the current session. The color will stay in the Palette until it is removed from your favorites.
The Search field makes it easy to find a specific product, for example searching by product number, or keywords.

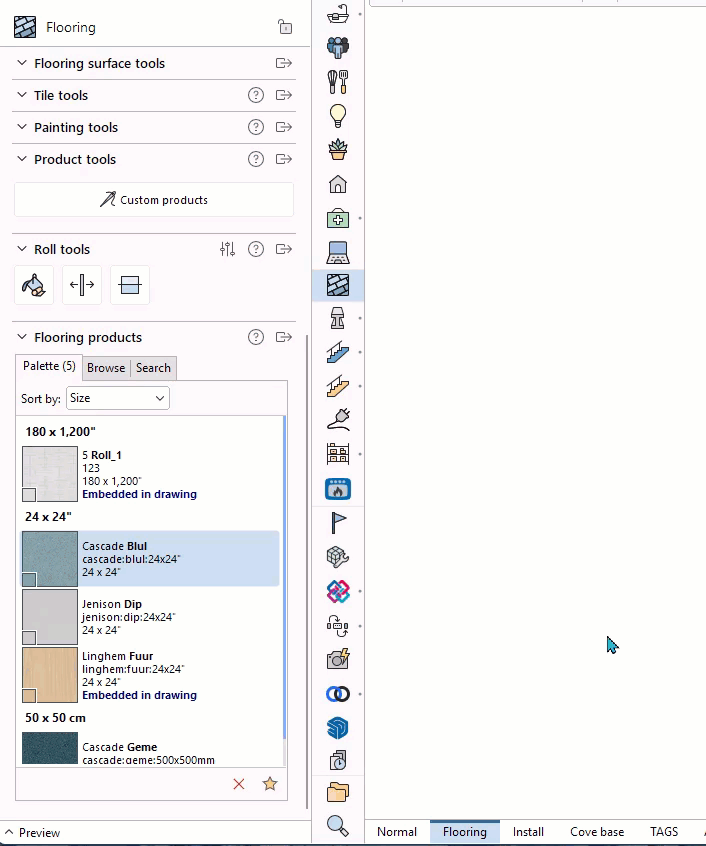

The Palette tab
For easy access, you can sort the products on the Palette tab by Name, Size, Color or Group, as shown in the video above.
For each product in your Palette, you can click the little square in the lower-left corner to set a schematic product color.
Once you have added the products you want to use in your project to your Palette, use the Painting Tools to apply them to your flooring surface.
If you want to remove a product from the Palette, simply right-click and pick Remove from palette.
