Windowsills can be added to existing windows in the drawing. Once the window is in place, follow these steps:

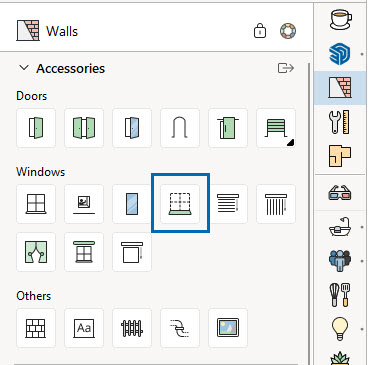

- Go to the Wall Drawing tab and pick the Windowsill tool:
- Move the cursor to an existing window in the drawing area. The sill snaps to the window.
- Click the sill to attach it.

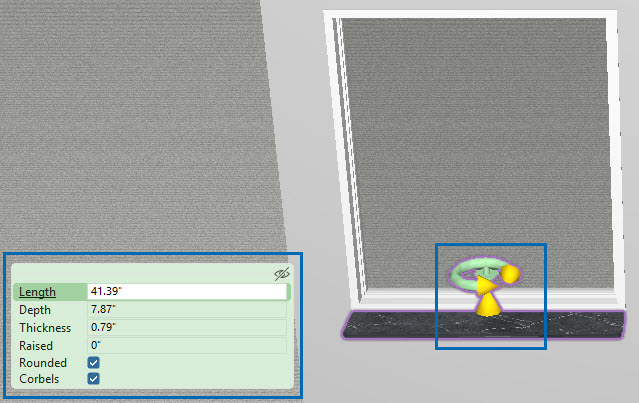

After you have placed a windowsill, you can still change its length, depth and other values by selecting it in the drawing and changing settings in the quick properties box that appears.
You can remove a windowsill by clicking the yellow, cone-shaped snap point shown at the component’s top edge in 3D view.
