To add curtains or blinds, you must first have a window in your drawing. Once the window is in place, follow these steps:

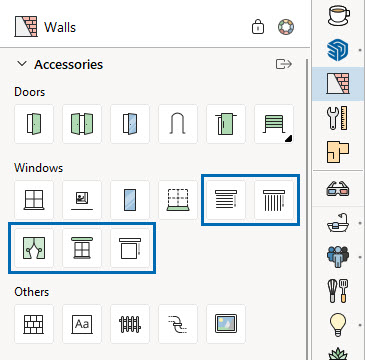

- Go to the Wall Drawing tab and pick one of the many curtain or blind options:
- Move the cursor to an existing window in the drawing area. The curtain/blind snaps to the window.
Curtains and blinds will snap to the opposite side of the blue triangle in the 2D drawing view, which represents the exterior side of the window. To reverse the window direction, click the green arrows that appear on a selected window. - Click to attach the curtains or blinds.
- You can remove a curtain by clicking the cone-shaped snap point shown at the curtain’s top edge.
When selected, all curtains and blinds have stretch nodes as well as a properties box to adjust length, width, and appearance.
Use the Material Explorer to change the texture and material of curtains and blinds.
