Have you ever wished there was a quick way to find out what category an object belongs to so that you can know which categories to filter or add to a Custom View Mode? Or wanted to make sure things are on the right level in a drawing with multiple stories? Or wanted to check what Part Tags have been applied?
By activating detailed tooltips on your toolbar, you have that information at your fingertips immediately without needing to go into the Categorization or Part Tagging dialog boxes.
To enable detailed tooltips, click the icon on your 2D or 3D toolbar. It's that simple!

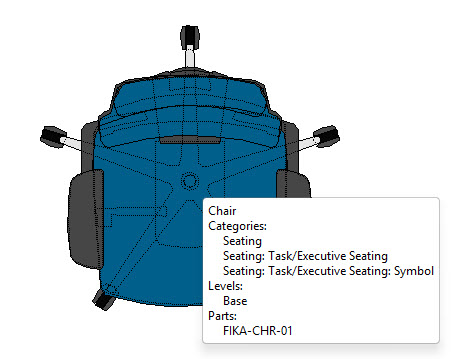

Once it is enabled, hover over a component in your drawing to see all categories, levels, and Part Tags, and sub-parts associated with it.

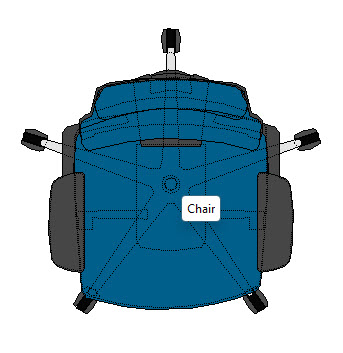

Click the icon on the toolbar again to deactivate detailed tooltips so that they do not take up so much of the drawing space while working. When deactivated, tooltips will only include the default information (product name, number, etc.).
