The Top area of the CET user interface contains the following standard items (starting from top):

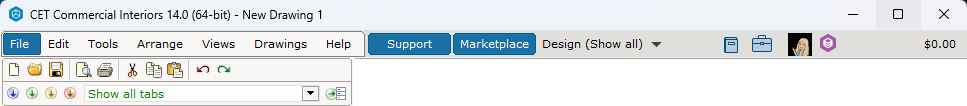

Alt 1.

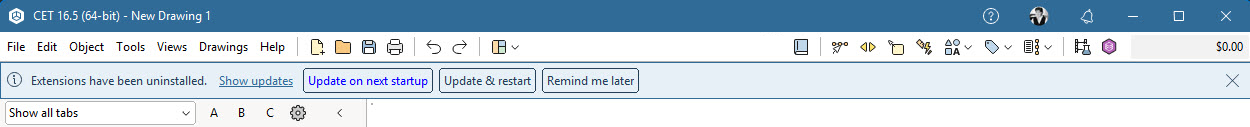

Alt 2.

• Title bar: Shows the current version of software, the name of the current drawing, and how many drawings are opened. If there are alternatives in the drawing, the current one will be listed as well.
• Your profile photo: Quickly link to your account or your dashboard on MyConfigura, visit the Marketplace or Sign Out from the drop-down menu.
• Notifications: Will show a red dot if you have updated posts in a briefcase.
• Download icon: If there are updates downloading the progress bar will be shown at the right.
• Menu bar: Many tools and functions are available through the menu options: File, Edit, Tools, Arrange, Views, Drawings (if multiple drawings are enabled) and Help.
• Quick Toolbar: Standard program icons (New, Open, Save, etc.)
• Work mode: Change the current Work Mode, or create your own.
• Catalogue downloader icon: Opens the Catalogue downloader.
• Toggle Toolbar: Quick access to tools that are eighter enabled or disabled, or turned off or on. For example Single/Group select, Disable/Enable snapping, Disable/Enable tooltips, and more.
• Photo Lab: Quick access to PhotoLab
• Spec Export: Export to Spec (Only available in CET Commercial Interiors)
• Calculations & Current Price: Shows total for all products in the current article view. The price is automatically updated when products are placed or edited in the drawing area. The preview can be turned off in the General tab of the Control Panel. Click to access Calculations.
• Top Banner: Will display messages regarding updates/installations and information from manufacturers. (Alt 2.)
