Before beginning to use CET, it is a good idea to familiarize yourself with the program’s user interface, which is designed to give you a clear overview of the available options. The program window is divided into four major areas as seen in the overview below. Click each link for more information:
| Top area | |
| Components area | |
| 2D View of the drawing area | |
| 3D View of the drawing area |

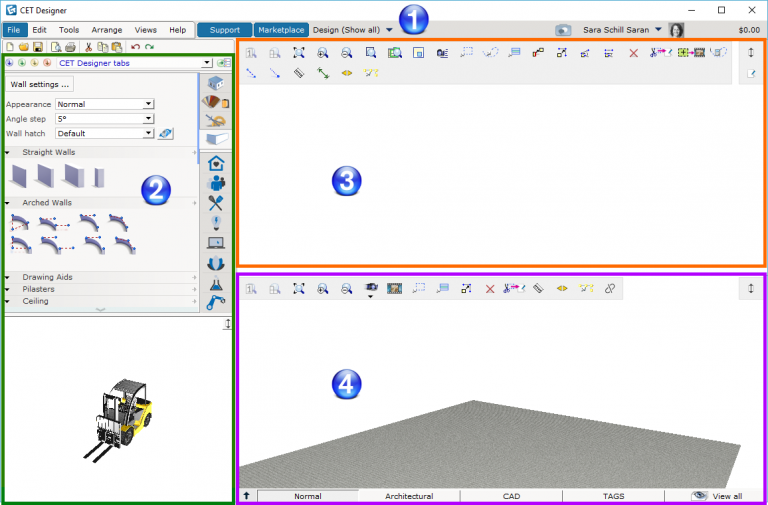

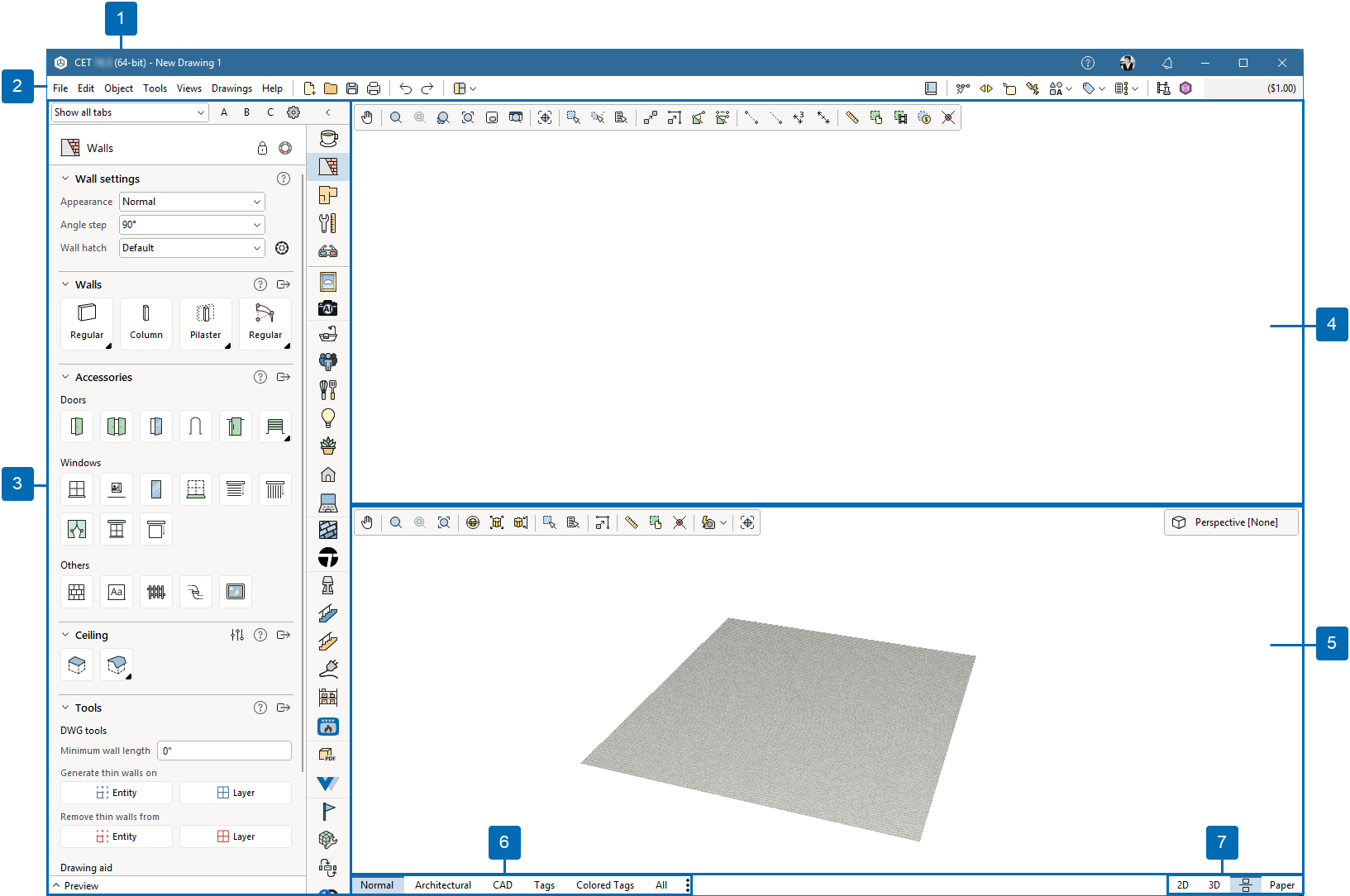

The CET main window
Split screen – Resizing the 2D/3D view

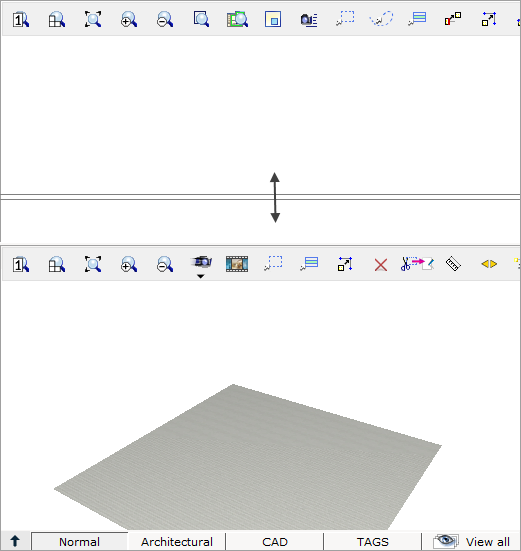

You can resize the 2D and 3D view. Click and drag the border between the two views to the desired size. You can also design in only 2D or 3D view instead of using the split view. Learn more here.

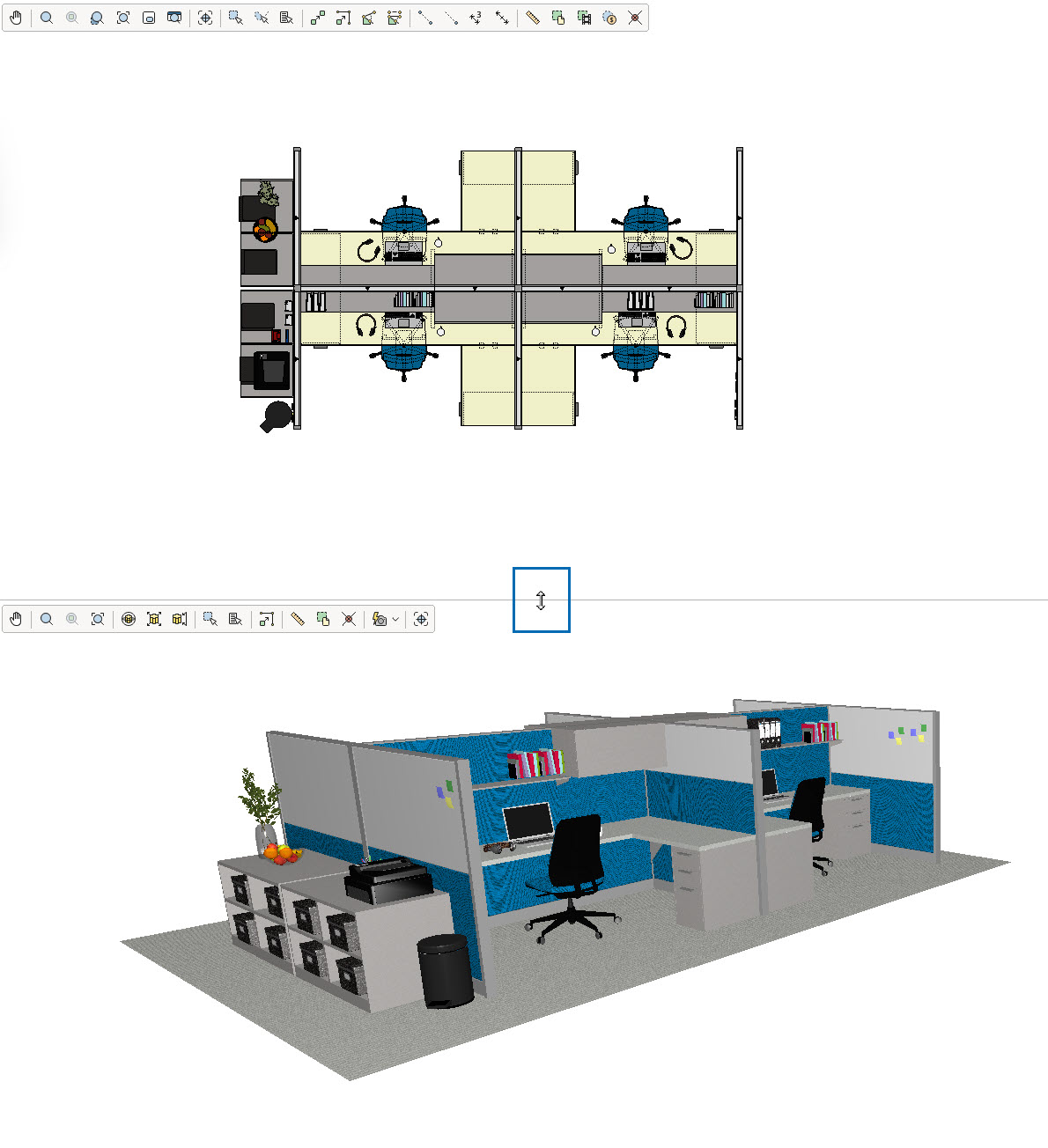

Resizing the 2D/3D view
Comments
2 comments
How do I split my screen so 2D and 3D views are side by side?
Hi Alex,
By default, the main 2D and 3D views you see in this article, cannot be separated to show left and right.
But you can open additional 2D/3D views following this article here, and arrange these windows left and right.
Or:
The main window only show 2D, and open an additional 3D view and place it like this:
