The CET drawing area is separated into a 2D and a 3D view. You can design in whichever view suits you best. The actions you perform and changes you make are shown simultaneously in both views. Certain actions, such as adjusting a product's height, are easier to perform in 3D view.
You can work with both views in one window or expand either view to fill the drawing area. Use the buttons in the lower-right corner of CET to choose a horizontal split, a vertical split, or a full view. The vertical split button displays the 2D and 3D views side by side.
Simultaneously designing in the 2D and 3D views (Shown in Vertical Views)

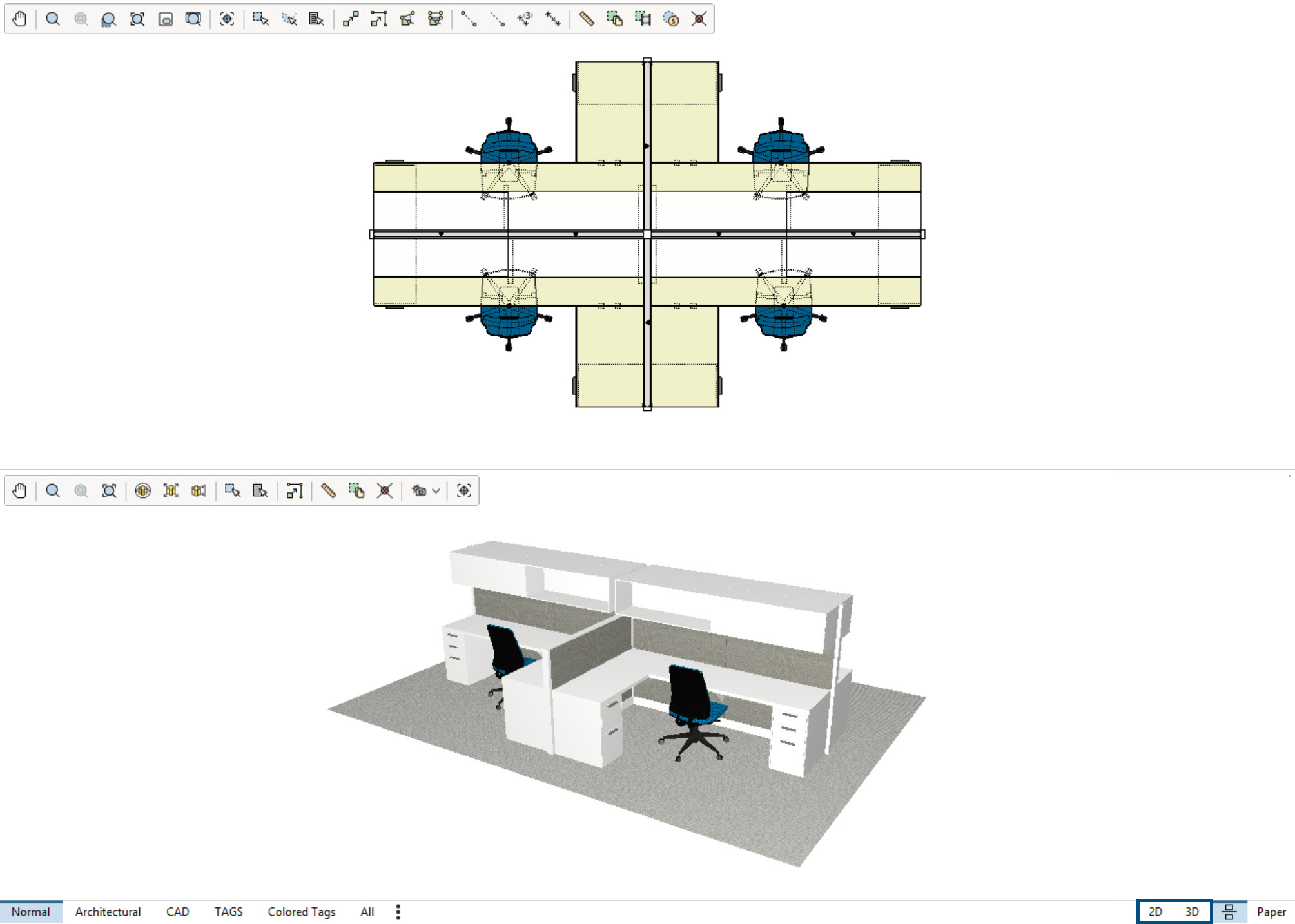

Simultaneously designing in the 2D and 3D views (Shown in Horizontal Views)
You will soon notice that an advantage of drawing and designing in 3D is how it captivates the customer’s attention when doing live design. The various drawing stages are easy to follow, and the customer recognizes the layout you create. In the 3D view, you get an instant response to all actions you perform, and it is easy to quickly rearrange the design according to the customer’s wishes.

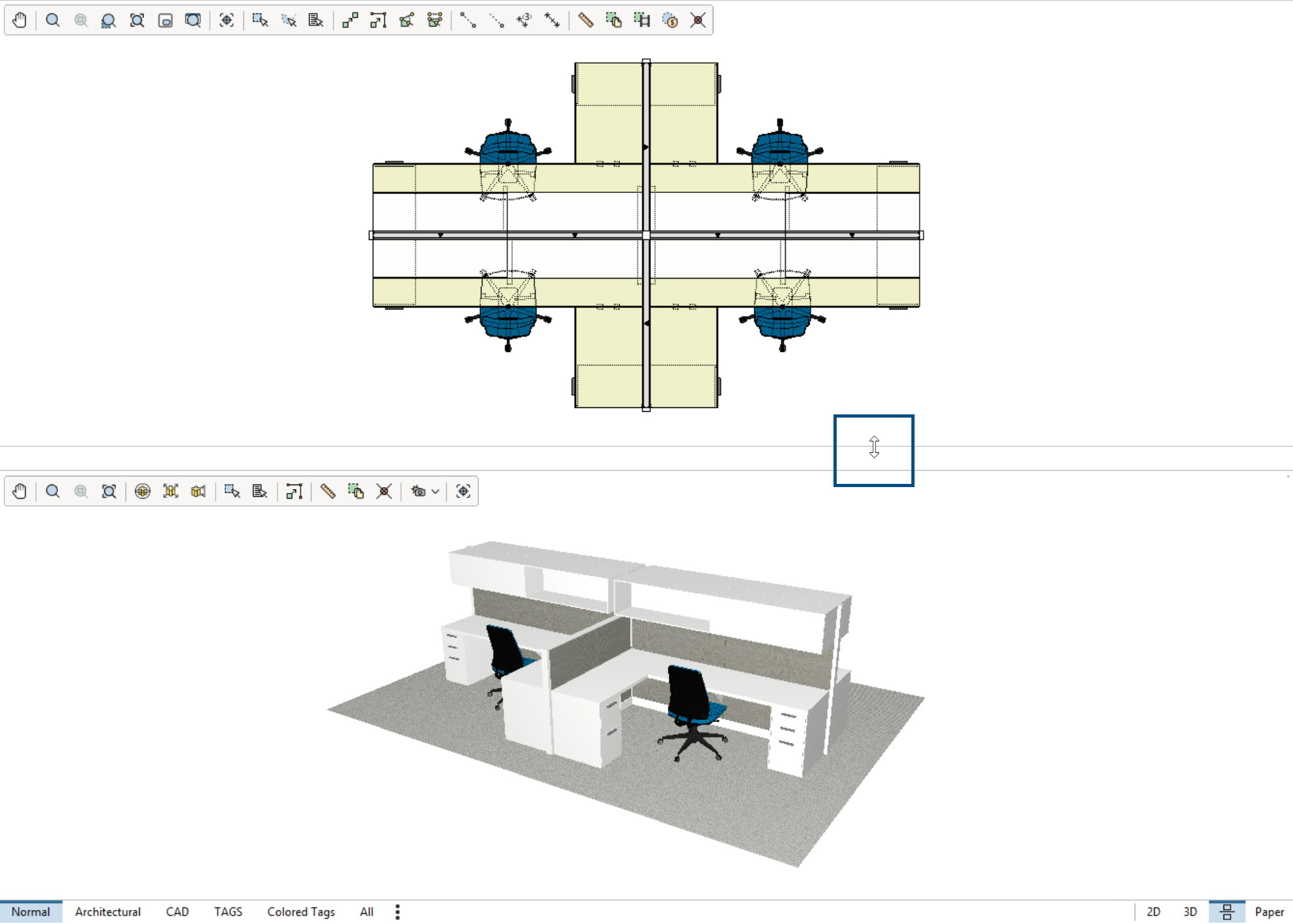

You can change the proportions of the 2D and 3D views by clicking and dragging the border between the two views as shown below.
