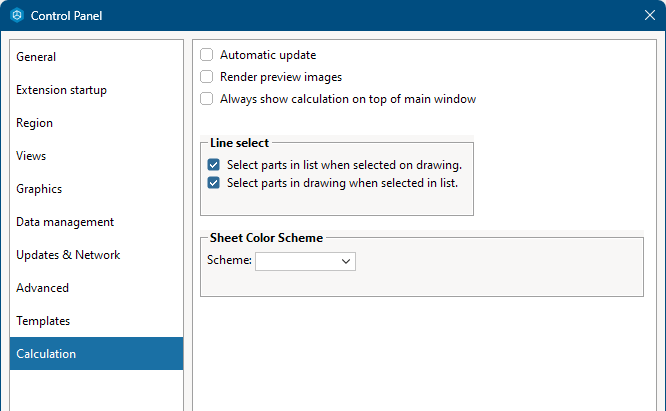

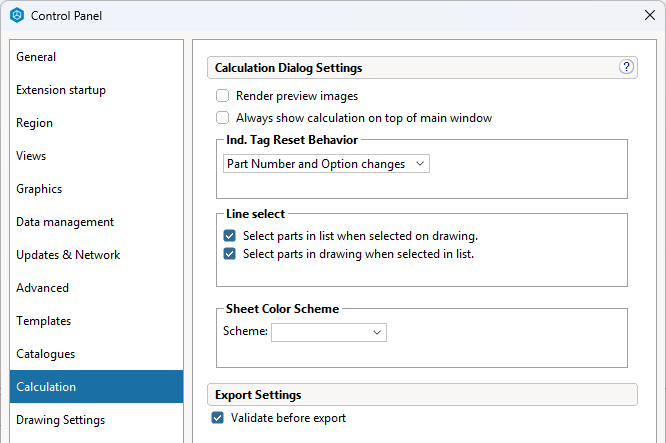

You can edit settings for the Calculation dialog by clicking the Calculation tab of the Control Panel.

On this tab, you will find the following options:

• Render preview images: Shows Preview Images with a rendered view. This will increase the amount of time it takes to fully load the views.
• Always show calculation on top of main window: Ensures that the Calculation window is always on top of CET when it is not minimized.
• Ind. Tag Reset Behavior: Allows for the selection of different behaviors for when to reset Ind. Tags modified in Calculation. Behavior descriptions can be found in the Help Dialog by clicking on the ? icon.
  • Legacy reset behavior: Retains the historical Ind. Tag reset behavior in CET. Typically, the Ind. Tag resets when a Part Number or Option is modified, but this behavior is entirely dependent on the manufacturer's extension code.
  • Part Number changes: A more restrictive reset approach for extensions, where the Ind. Tag resets only when a Part Number is modified. It will not reset when an option changes that does not affect the Part Number.
  • Part Number and Option changes: The Ind. Tag resets only when a combination of the Part Number or its options changes on the part.
• Line select: Select these options if you want objects selected in the drawing area when a line is selected in the Calculation dialog and vice versa.
• Sheet Color Scheme: Select the desired color scheme for the Calculation dialog.

• Validate before export: Runs a drawing validation and displays the results when exporting an Article View from Calculation. The Drawing Validation Summary provides buttons to Validate Drawing, which opens the System Validation dialog, or Export Anyway, which will continue with the export.



Choosing Currency

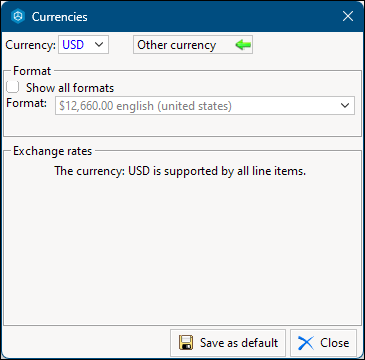

In the Calculation dialog you can choose which currency prices are shown in. Click the button Currency in the upper right corner in the Calculation dialog:

The options in the Currency drop-down menu are the ones the components placed on the drawing area support. To add another currency, click the button Other currency. Then set the current exchange rate for the currency.

In the Format drop down-menu, choose how to display the currency.
