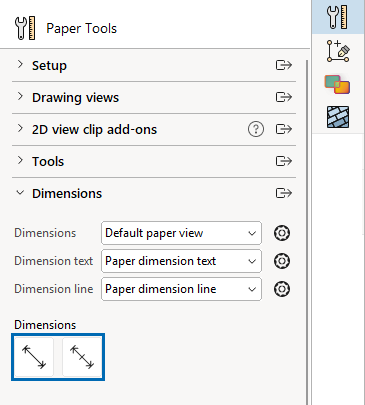

There are two dimension tools that can be added to your Paper View:

• Three-click Dimension: Places a dimension line using 3-clicks for increased control of the extension length.

• Chain Dimension: Allows input of multiple dimensions and makes it easier to measure several distances while displaying a running total of the distances.



Style Editor in Paper View

You can edit Dimensions, Dimension Text, and Dimension Lines directly from Paper View using the Style Editor. The Style Editor lets you control the appearance of dimensions in a consistent and efficient way across your drawings, including adjusting visual properties such as font size, height, and color, and saving styles for reuse.

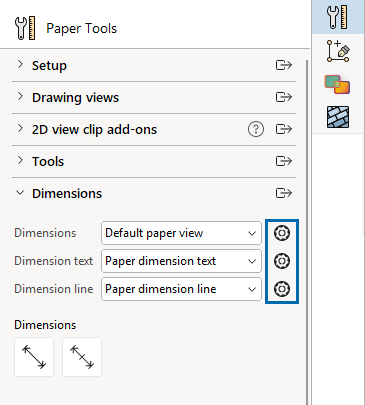

Open the Style Editor to a specific tab by clicking one of these icons on the Tools extension tab.

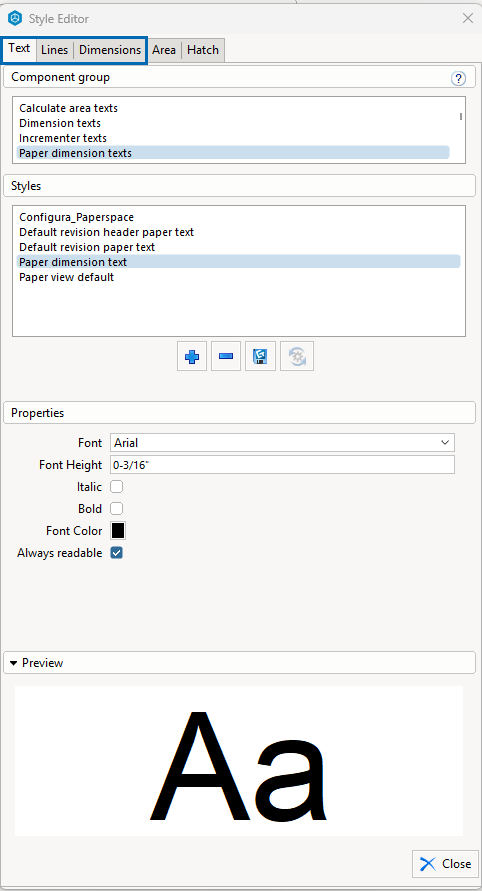

The Style Editor window is organized into separate tabs, with each tab corresponding to a specific group of styles.

• Style Editor: Dimension Text

  Create and modify styles for text groups. You can change font, font height, bold, italic, and font color.

• Style Editor: Dimension Line

  Create and modify styles for line groups. You can change line type, width style, width, and color.

• Style Editor: Dimensions

  Create and modify styles for dimensions. You can adjust text alignment, distance units, unit precision, arrowhead size and shape, gap and end line length.
