Found In

CET 16.0 Major

CET 16.5 Major

Summary

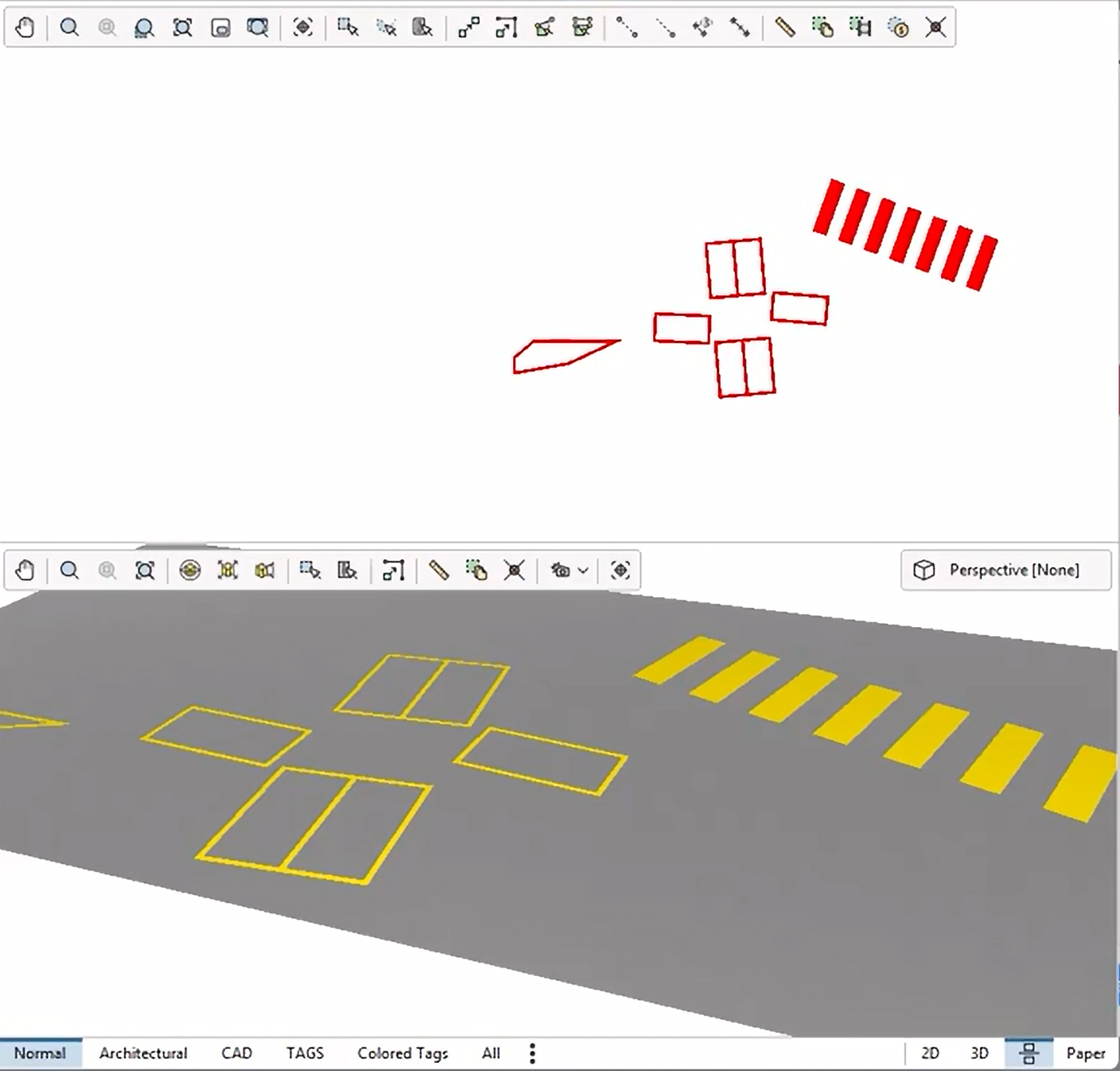

After saving a drawing and reopening it, all industrial markings appear Red in the 2D view, even though the selected material is Yellow. Refreshing the drawing does not resolve the issue, and any new markings inserted afterward also appear Red.

Steps to Reproduce

1. Insert industrial markings (e.g. tape, parking, crosswalk)

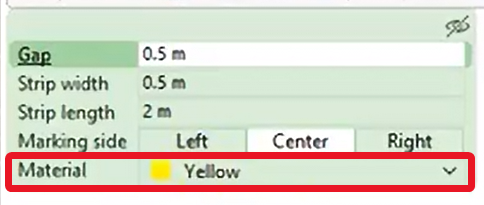

2. Ensure that they all have Yellow selected as Material in the Quick Properties



3. Save the drawing
4. Restart CET

5. Load the saved drawing and observe the markings material in 2D and 3D.



Workaround

We currently do not have a workaround for this issue. Our development team is reviewing it, and updates will be shared as soon as they are available.
