Found In

CET 16.0 Major

CET 16.5 Major

Summary

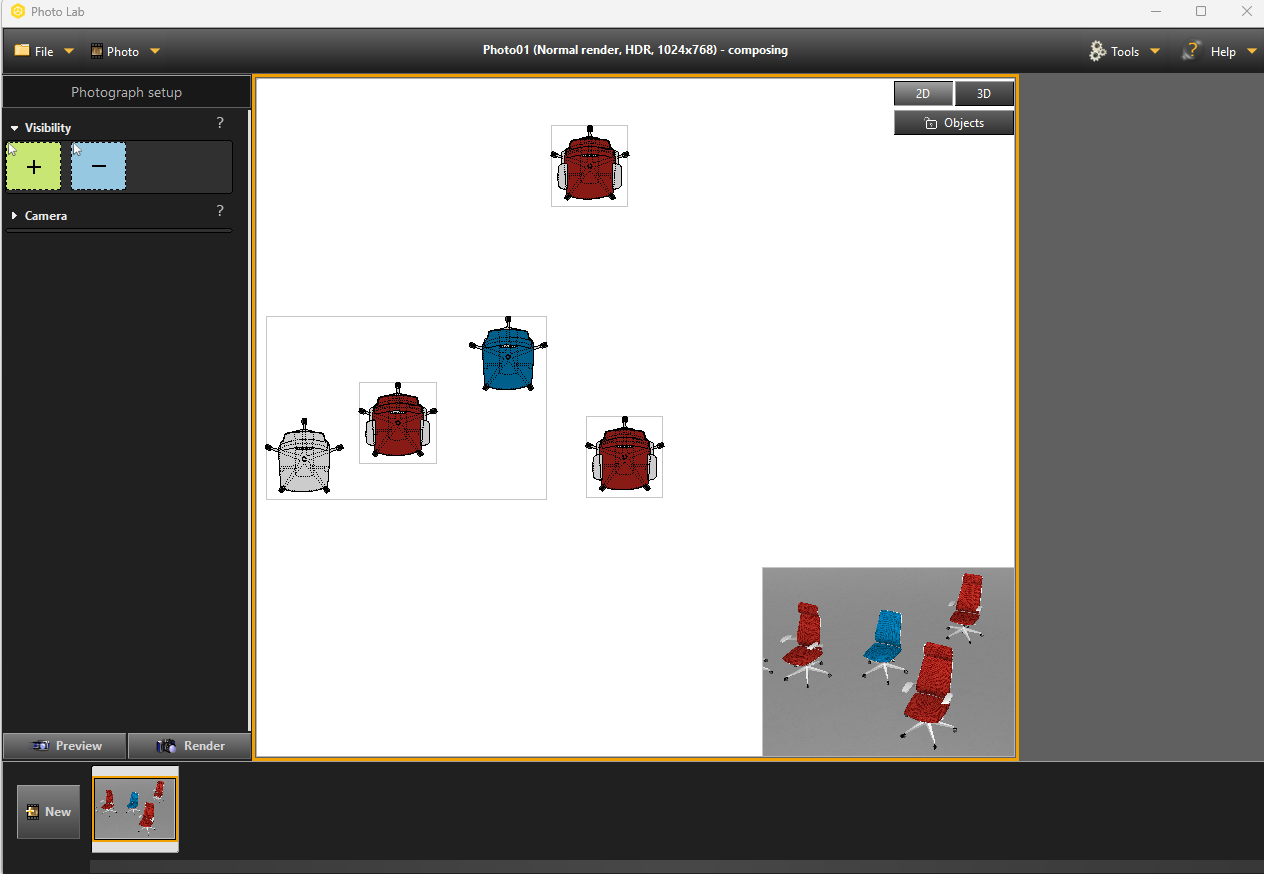

Visibility boxes (pictured below) drawn in Photo Lab occasionally disappear from the drawing after reopening the drawing and need to be redrawn.

Error Details

Steps to Reproduce

For now, there are no specific repeatable steps to reproduce this issue. We suspect it is related to using Undo (Ctrl+Z) within Photo Lab. Please send us a Bug report via Help > Send Feedback if you notice a common scenario resulting in this issue!

The steps below will likely result in this occurring:

1. Open Photo Lab

2. Try creating lots of render images

3. Place 3D clipping/ 2D visibility boxes in them

4. Switch between photos, and move objects around, or delete some 3d clippings

5. Use the "undo" and "redo" actions

6. Save then Load drawing

Workaround

If you experience this frequently, especially within a particular drawing, you can go to the File menu within Photo Lab, choose Save photo series, which will save the photos and their visibility boxes. You can then reload the Photo series (File > Load photo series) in the event you experience this issue in this same drawing.
