Found In

CET 16.0 Major

Summary

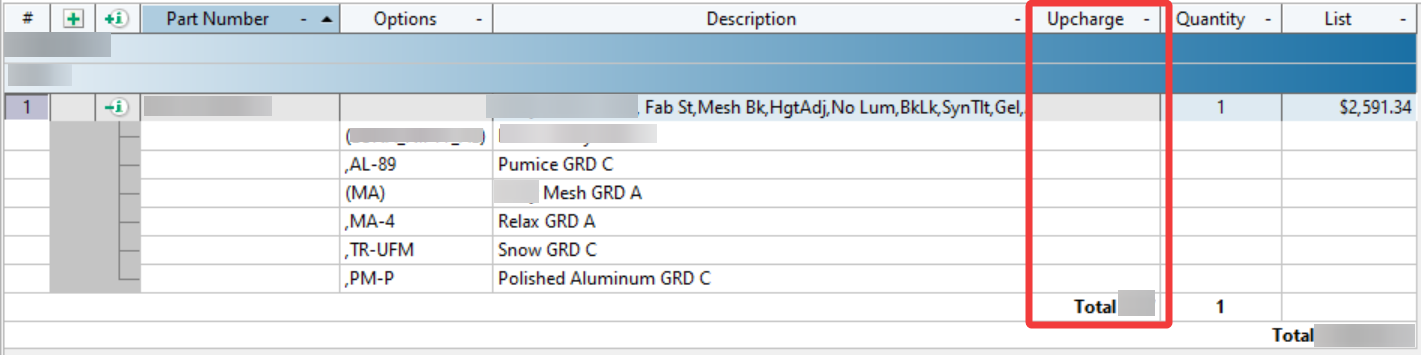

When a Commercial Interiors Library (CIL) symbol is inserted in a drawing with all options applied, the option pricing does not appear in the Upcharge column of Calculations:

Note: Even though the upcharge is not visible, it is still be applied to the Total in Calculations.

Steps to Reproduce

1. Go to the CIL Catalogue Reader or Catalogue Search tab

2. Find a CIL part

3. Double-click the part to specify options

4. Add part to drawing

5. Go to Calculations

6. Add the Upcharge column if it was enabled already

7. Expand the options of the CIL product

8. Observe the Upcharge column for each option. The column will not have any values listed.

Workaround

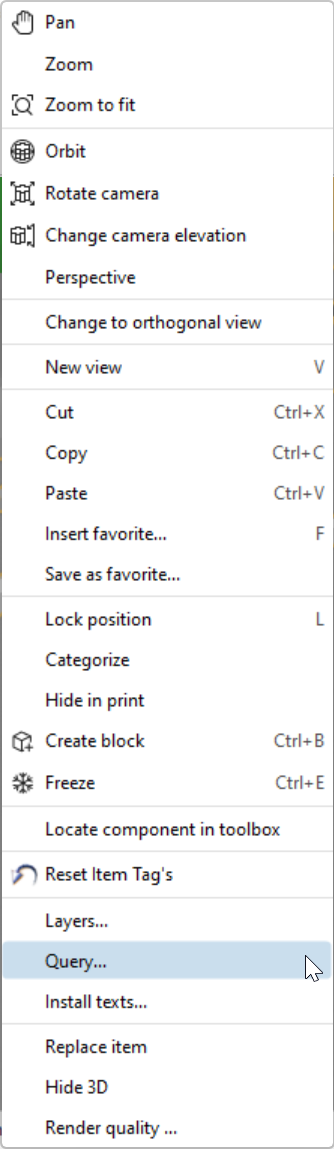

In the drawing, right-click the CIL symbol and select Query from the drop-down menu:

The Query dialog should open. From within the dialog, you will be able to see the upcharge price for each option:
