With the Quick text editor you can rapidly switch between multiple texts in the drawing view which you can edit. You can cycle through all visible text boxes in the 2D view or Paper View by pressing the TAB key on your keyboard. You can use the arrow keys to navigate inside a text box, and the Enter key to create line breaks. This tool is accessed from the Tools component tab.
To edit texts with the quick text editor, follow these steps:

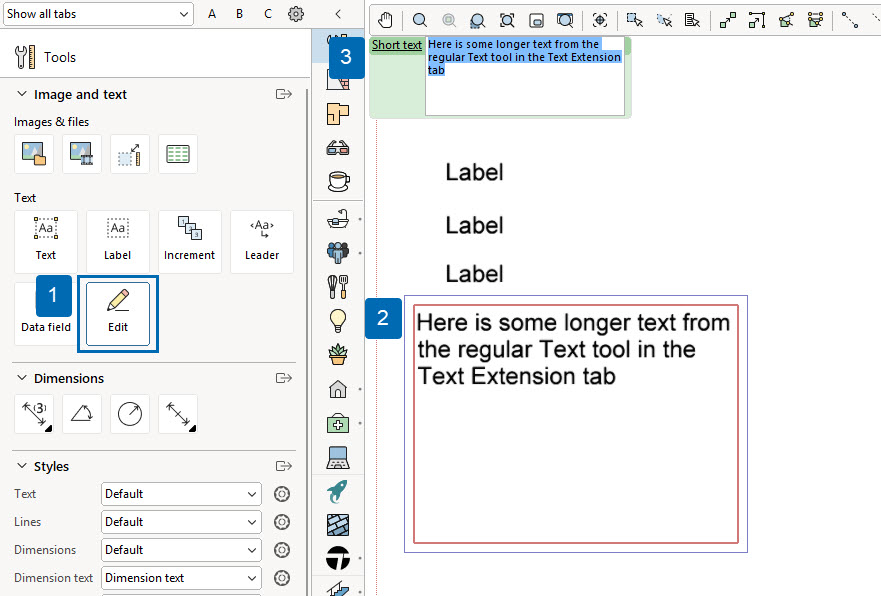

- Go to the Tools component tab and select the Quick text editor tool.
- Click either a Text or a Label in the 2D view or the Paper View.
Notice the red line around the drawing view indicating that you are in edit mode, and which encompasses the area in which texts are to be edited. - Edit the text in the green properties box, then use the Tab key to move from text to text.
- To escape the tool, hit Esc on your keyboard or move your cursor outside of the drawing area.
