Found In

CET 16.0 Major

Summary

When cutting tiles in the Installation patterns and stamps dialog, the material on tile is lost after cut.

We've also identified that the pattern repetition will lose material after the cut as well. If you save the pattern, it will not show the material when the pattern is used in a drawing.

Steps to Reproduce

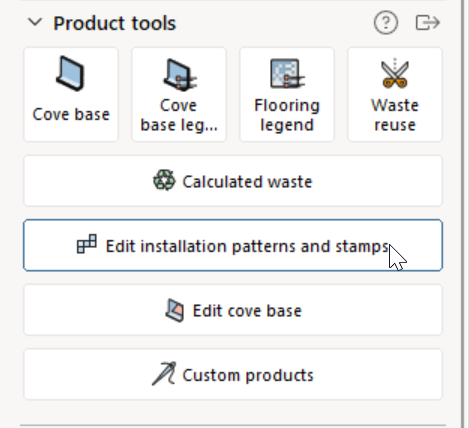

1. Open the "Edit Installation patterns and stamps" dialog from the Flooring extension:

2. Load or create a new installation pattern with material applied

3. Use the Cut tile tool on a tile

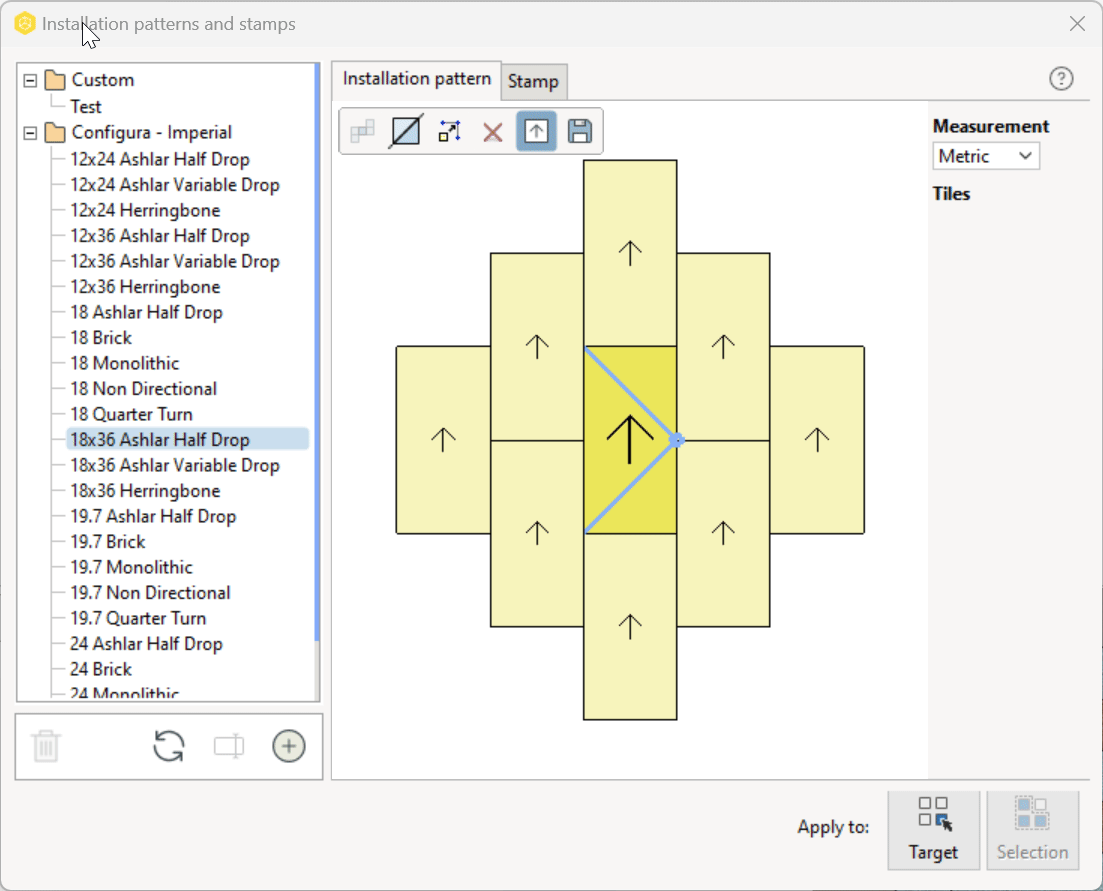

4. Observe the material on the tile that was cut. The material will disappear and the tile will go back to the default yellow:

Workaround

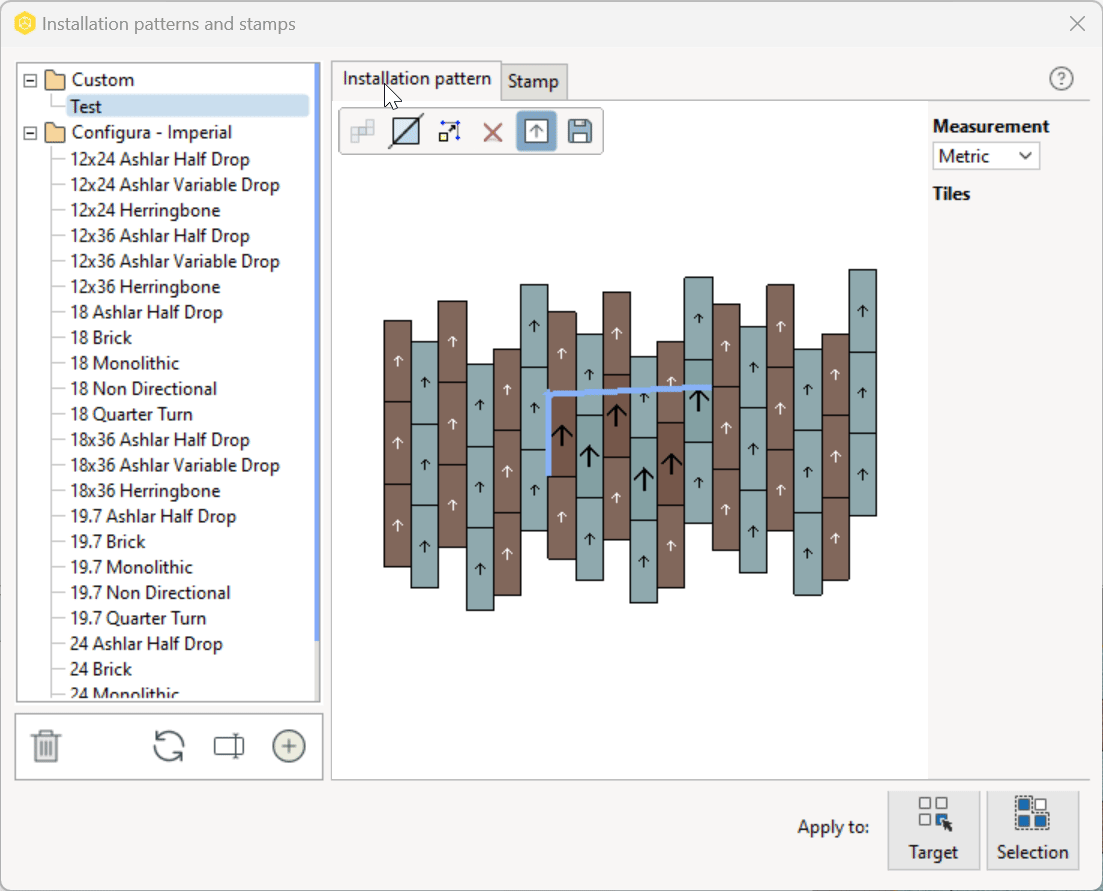

Under Installation Pattern, use the Cut tile tool first on a tiles. And then apply material to the tile pattern using Stamp:
