Deep racking accessories, also known as Protectors, are an essential part of planning and managing deep racking systems. Not only do they aid in proficiency but they also provide additional safety measures.

Adding Accessories

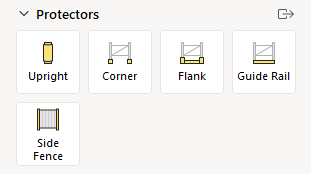

Review this table to get a clear and simple summary of the Protectors and their respective functions.

Icon	Name	Function
	Upright	Adds protection to the inner frame legs exposed to an aisle
	Corner	Adds protection to the outer frame legs exposed to intersecting aisles
	Flank	Use for "end-of-aisle" frames to protect to the base and legs exposed to intersecting aisles
	Guide Rail	Use to keep equipment from coming in contact with the racking for efficiency and protection
	Side Fence	Adds metal fencing to the "end-of aisle" frames for increased protection in highly trafficked areas

To apply a type of Protector to your project, follow these steps:

1. Click the type of protector you want to use
2. Hover the cursor over the area to be applied
3. Review the Quick Property Box
   • If needed, specify additional information
4. Click on the object to apply the protector

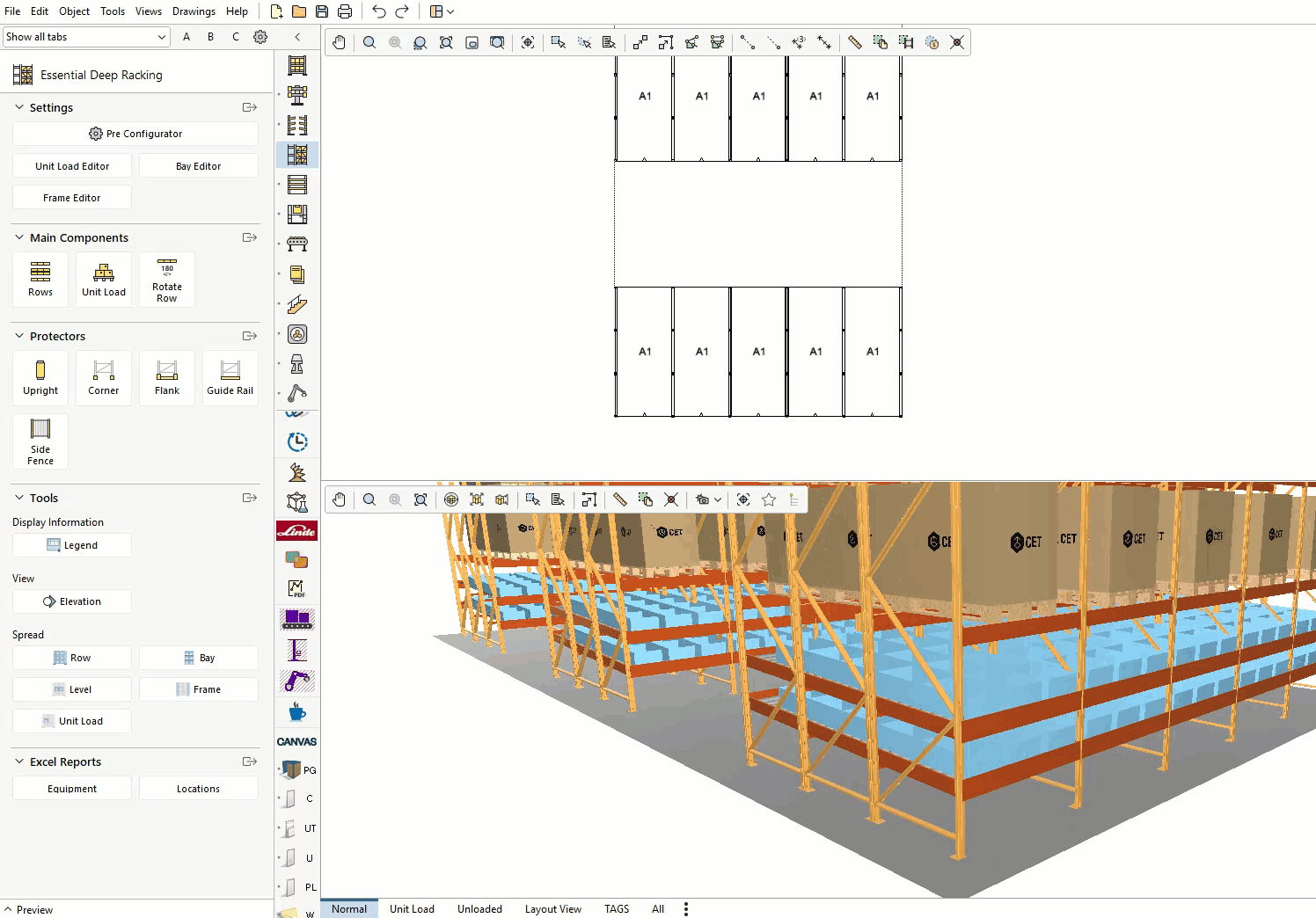

Easily specify and add accessories to your project with Protectors

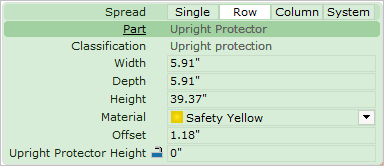

Quick Property Box

The Quick Property Box is an important tool that allows you to specify additional details. This can be done while actively applying protectors or after by clicking on the object in the drawing. In addition, the Quick Property Box can be used to apply multiple protectors at a time.

• Use Spread to efficiently update more than one area in a rack.

Types of Protectors

All protectors are applied the same way. To apply a type of Protector to your project, follow these steps:

1. Click the type of protector you want to use
2. Hover the cursor over the area to be applied
3. Review the Quick Property Box
   • If needed, specify additional information
4. Click on the object to apply the protector

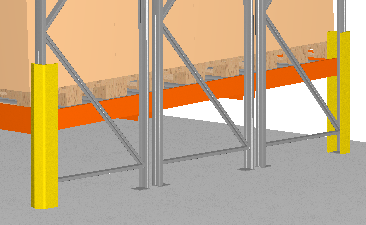

Upright

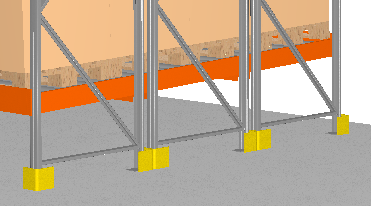

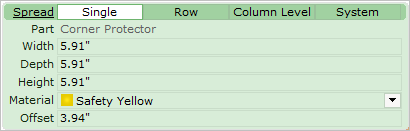

Corner

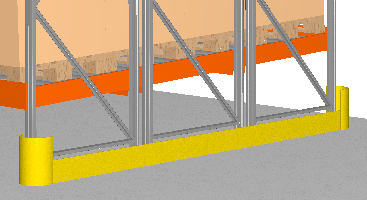

Flank

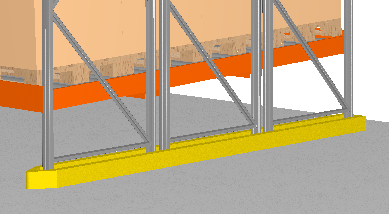

Guide Rail

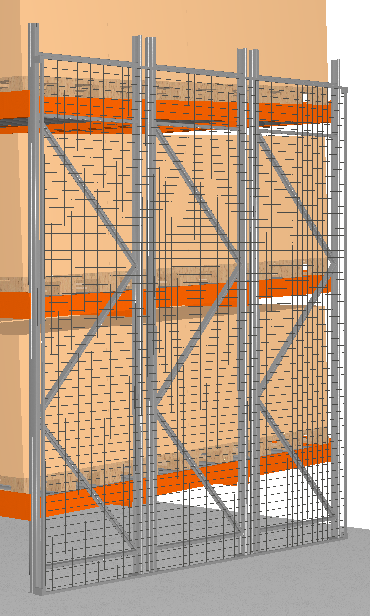

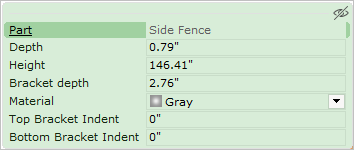

Side Fence
