The Web Viewer Exporter Extension allows you to export CET drawings so they can be viewed in a web browser. While the Extension is required to create and publish the web view, anyone with the shared link can open and explore the drawing in their browser without installing the full CET desktop application.

At a high level, the Web Viewer is designed to make sharing, reviewing, and collaborating on CET projects easier.

A CET user exports or publishes a drawing using the Web Viewer Exporter Extension, then shares the generated link with others. Recipients can open the link in a supported web browser to view and interact with the drawing.

Getting Started with Web Viewer Exporter Extension

1. Download and install the Web Viewer Exporter Extension from the Marketplace.
2. Create a drawing in CET.

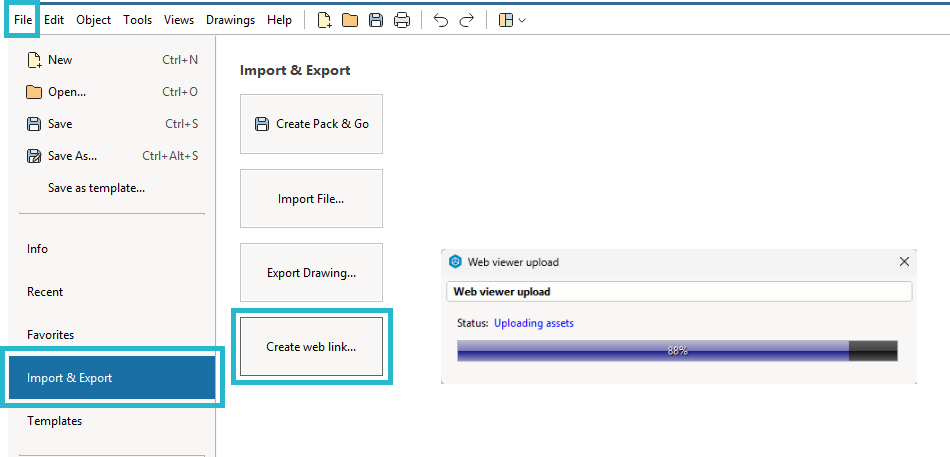

3. From the File Menu in the upper left-hand corner, click the Import & Export tab.

4. When the Web Viewer is installed, the "Create Web Link" button is visible. Click on the Create Web Link button and the Web viewer upload dialog opens and starts to work. A progress bar shows you the progress and status of the upload.





5. The drawing is exported/published when a link is generated. Click on the link to open the drawing in the Web Viewer (step 6). Or use the copy icon to easily share the link with others.





6. When clicking on the link, the drawing will open in the web browser.



Key capabilities

• 3D visualization in browser
  You can only navigate in the scene (pan, zoom, rotate) much like in CET, but simplified.
• No installation required
  Stakeholders (clients, sales reps, managers) don’t need CET, just a browser.
• Easy sharing
  Drawings are shared via links, making it straightforward to send to customers or colleagues.
• Presentation-friendly
  Often used in sales workflows to present layouts, spaces, or configurations interactively.

Common use cases

• Sales reps sharing layouts with clients
• Internal reviews of designs without requiring CET licenses
• Customer approvals and feedback loops
• Embedding interactive layouts in portals or proposals
