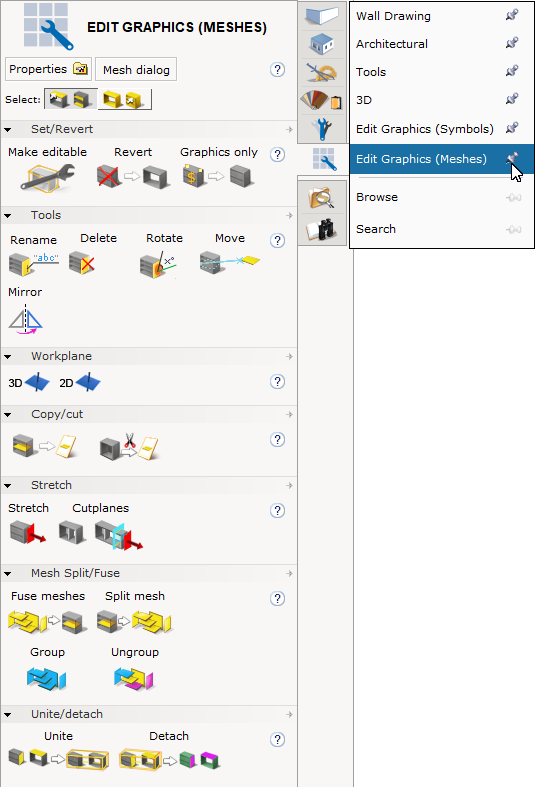

The Edit Graphics (Meshes) component tab contains tools for editing separate parts of components (meshes), as well as entire components. These tools let you take full control of the editing process.

Properties

Open the Properties to set your preferences for working with Edit Graphics:

Mesh dialog

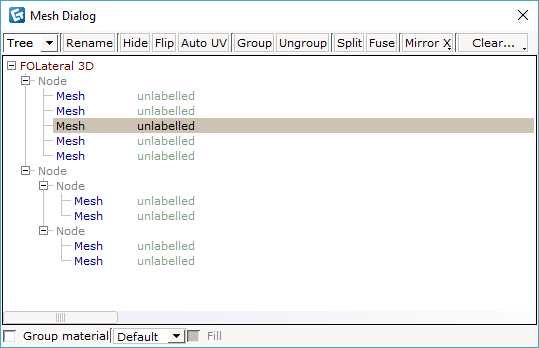

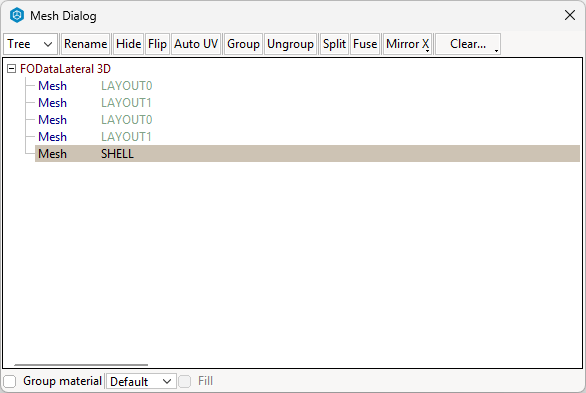

The Mesh dialog provides you with a list of all the meshes that a component is made up of, which can make it easier to find a certain mesh.

Learn more about working in the Mesh dialog in this article.

Select Mode

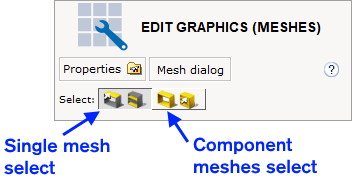

There are two radio buttons for selecting meshes:

Single mesh - selects an individual mesh

Group mesh - selects entire components as a group

Select Mode operates like Single and Group Selection Modes in the drawing views.

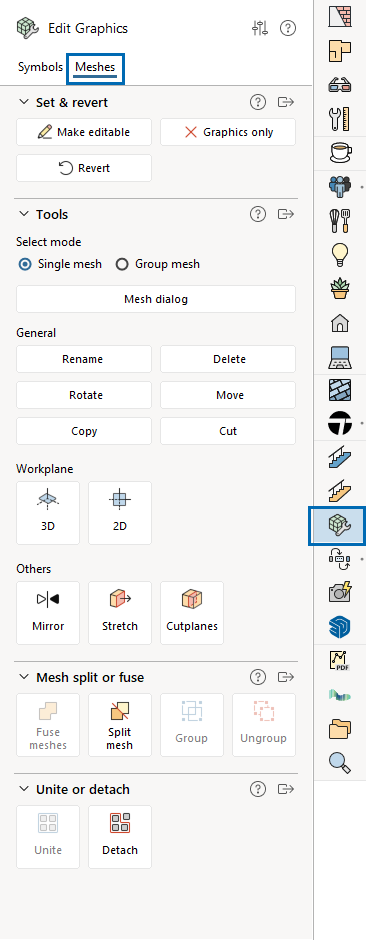

The editing tools are categorized into the following sections: Set/Revert, Tools (which includes: Workplane, Copy/Cut, and Stretch), Mesh Split/Fuse, and Unite/Detach.
