If you need to equip your editable component with a part from a different one, you can do that by using the Copy and Cut tools followed by a regular Paste operation.

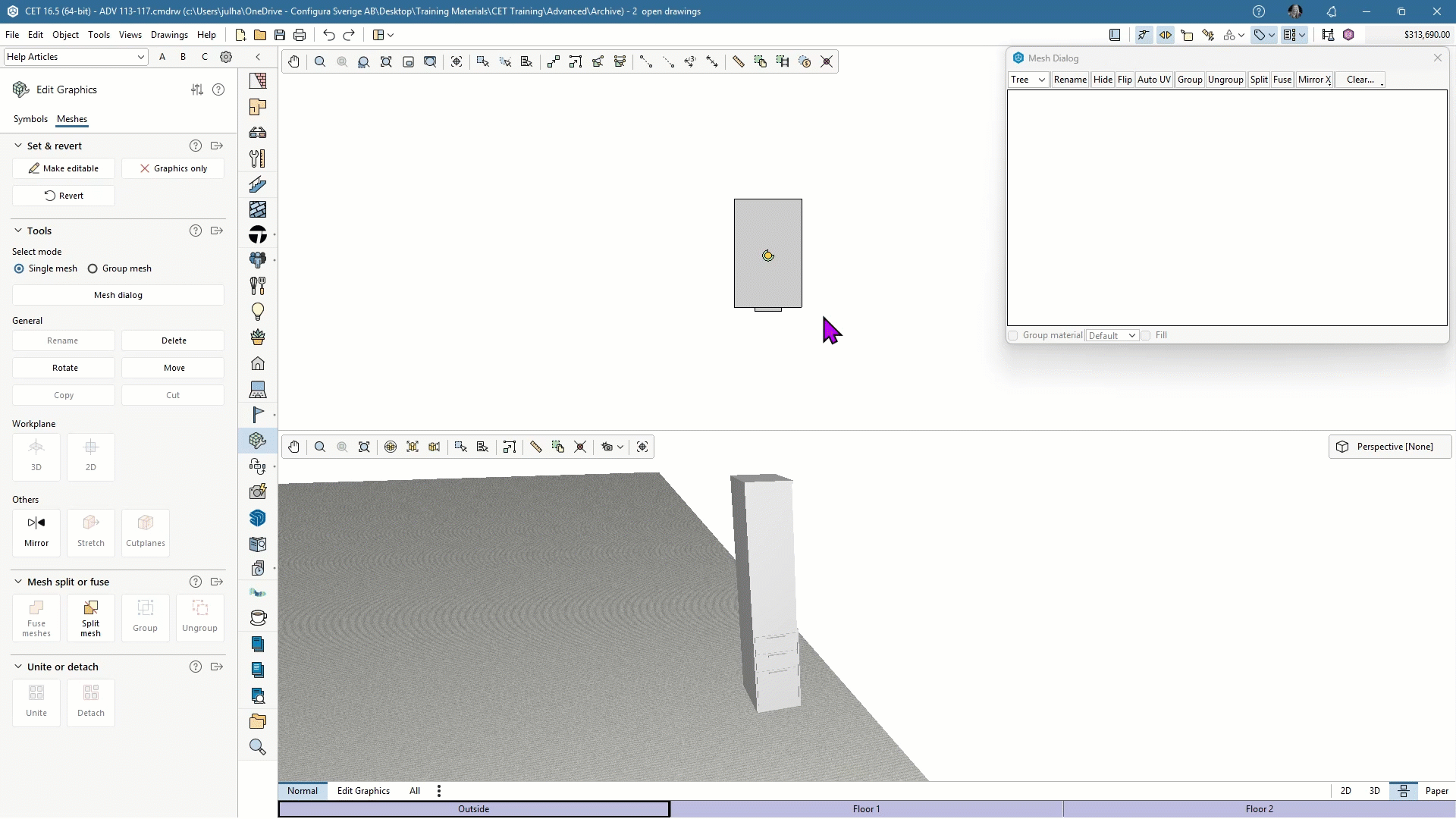

Copy
To copy a mesh to the clipboard for later pasting, use the Copy tool.
To copy and paste a mesh, follow these steps:
- Click the Make editable button and the click the component that you wish to modify. The component is now editable.
- Switch to Single mesh select mode.
- Click to select the mesh or meshes that you want to copy. You can select multiple meshes by pressing down the Ctrl key and clicking each mesh. Selected meshes turn yellow.
- Click the Copy button. The mesh has now been copied to the clipboard.
- To paste the mesh, right-click anywhere in the 2D view or the 3D view and select Paste from the context menu, or press 'Ctrl+V'. The mesh is now attached to the cursor and can be clicked in place. Use the Move mesh tool to adjust it.

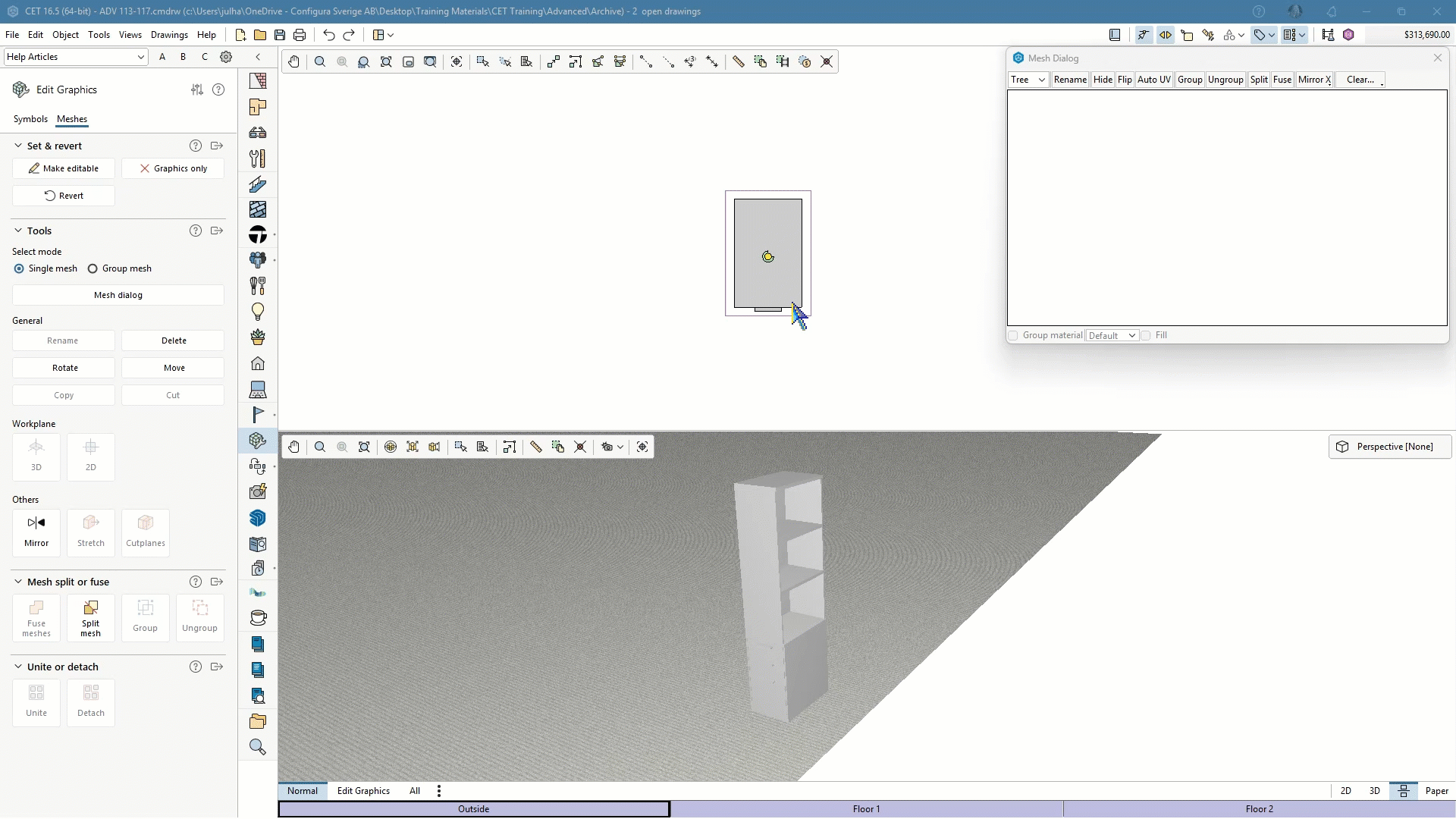

Cut
To remove a mesh from a component and paste it in another location, use the Cut tool.
To cut out a mesh, follow these steps:
- Click the Make editable button and the click the component that you wish to modify. The component is now editable.
- Switch to Single mesh select mode.
- Click to select the mesh or meshes that you want to cut. You can select multiple meshes by pressing down the Ctrl key and clicking each mesh. Selected meshes turn yellow.
- Click the Cut button. The mesh has now been cut out from the drawing.
- To paste the mesh, right-click anywhere in the 2D view or the 3D view and select Paste from the context menu, or press 'Ctrl+V'. The mesh is now attached to the cursor and can be clicked in place. Use the Move mesh tool to adjust it.
