1. Delete an Entire Tag
2. Delete a Tagged Area
3. Removing Tags from an Individual Item
4. Removing Tags from a Selection of Components

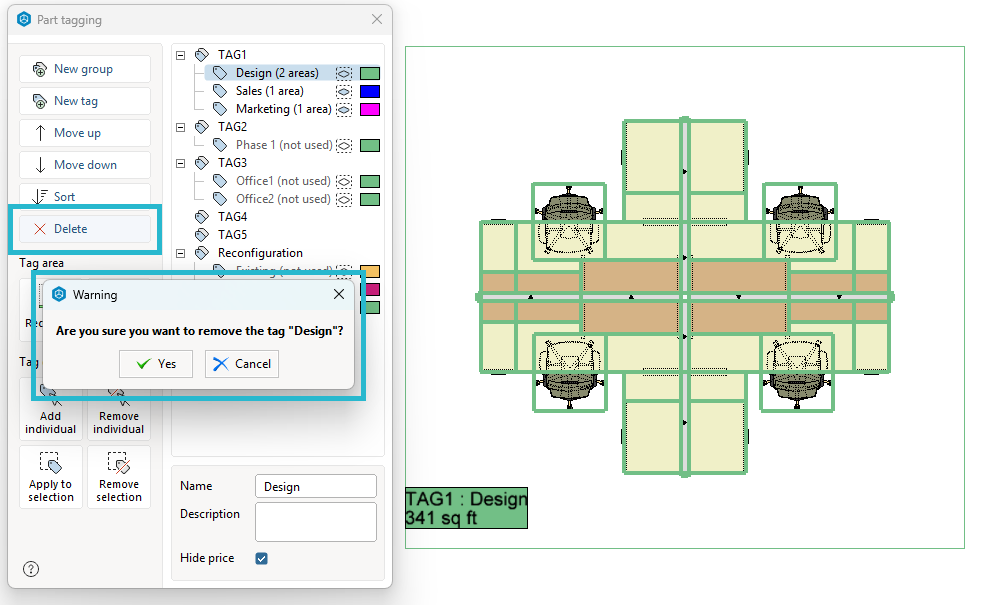

Delete an Entire Tag

To completely remove a tag from your list of Part Tags, which deletes all areas and removes the tag from individually tagged items, follow these steps:

1. Select Part tagging from the Tools menu.
2. Select the tag you wish to remove from the list
3. Click the Delete button on the left.
4. This removes the tag from the list, any areas in the drawing space, and individually tagged components.



Delete a Tagged Area

When you have placed a tagging rectangle or a custom shape tag, a tagged area is created. You may run into a situation where you no longer need an area tagged, but you still want the tag to exist in your list. In this case, deleting a tagged area is very simple.

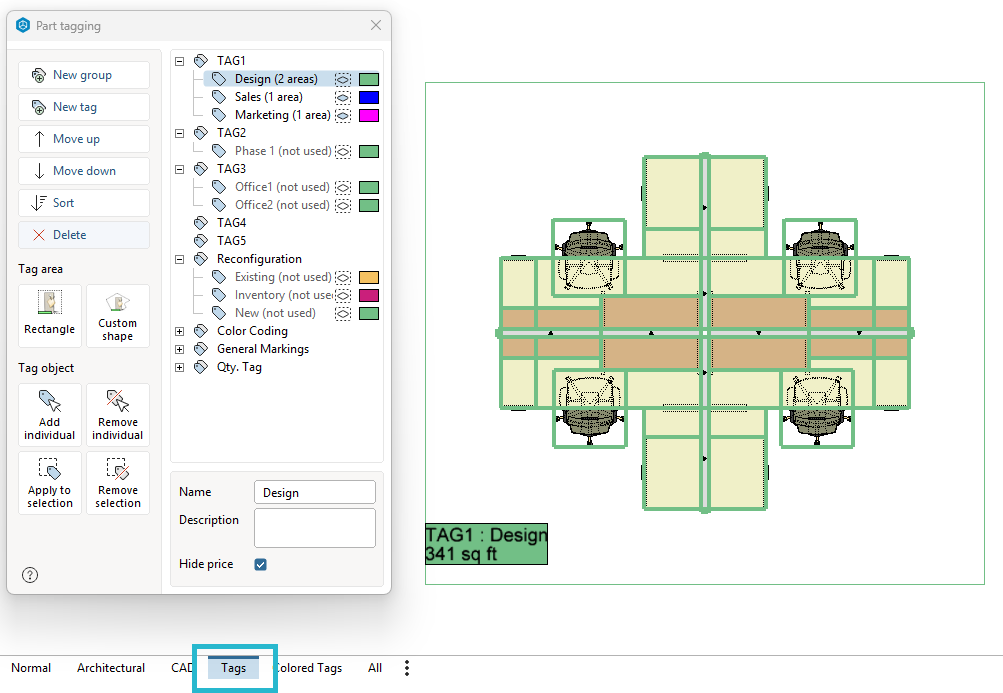

1. Open Part Tagging from the Tools drop-down menu. Note that you are now in the Tags View Mode and can therefore see all tagged areas and any individual tags of your selected tag in the list. You can also go directly in the Tags view mode by clicking on the name at the bottom of CET.
2. Select a tagged area by clicking on the tagging shape or by the label (i.e. the TAG1: Design text in our example) and press the Delete key on your keyboard.
   OR

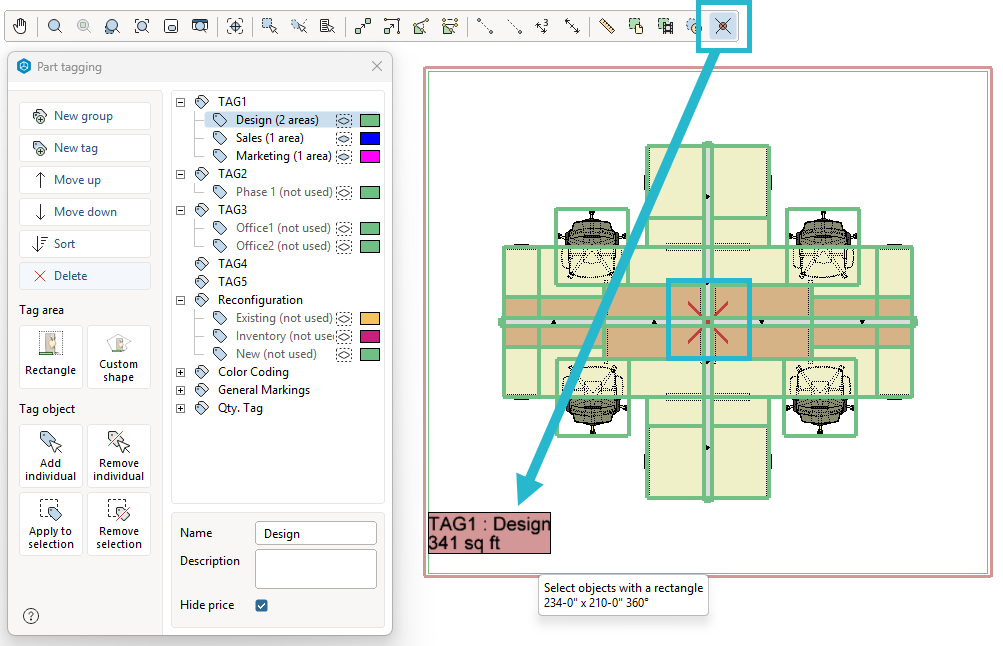

   Use the Remover tool from your 2D toolbar and hover near the label. A red X appears in the center of your tagged area. Then click to delete.

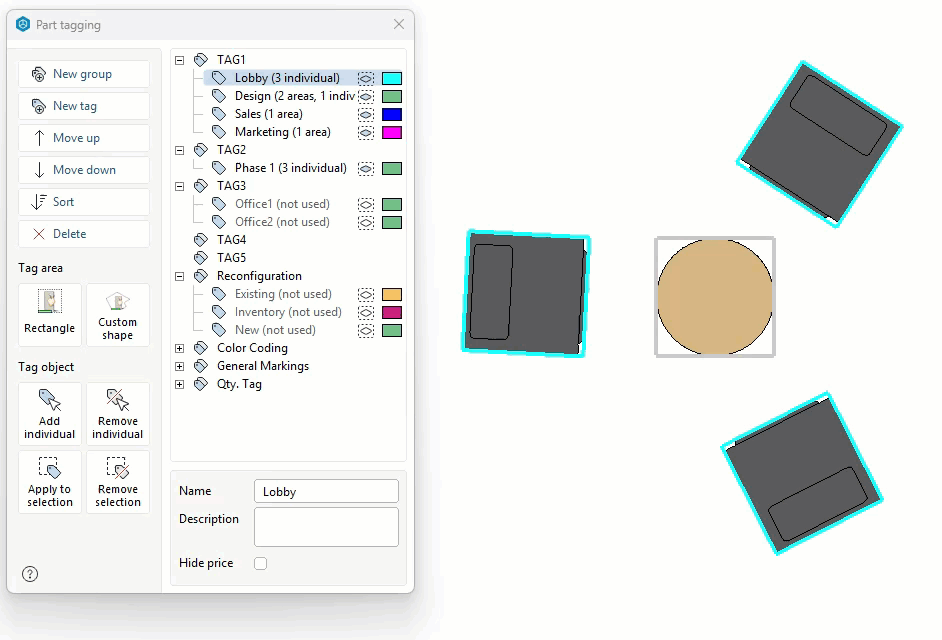

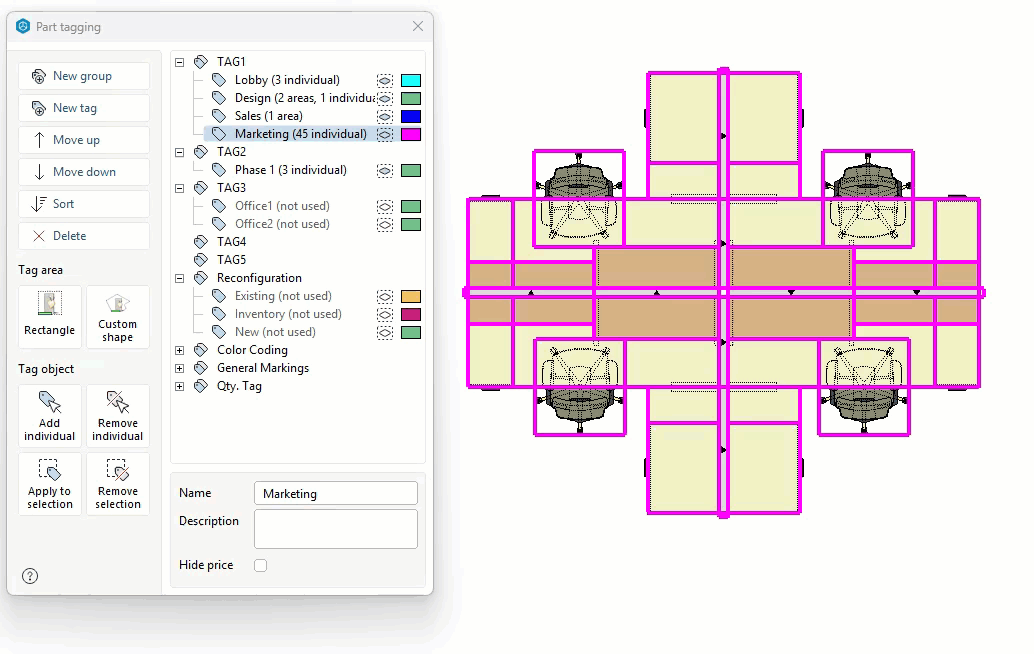

Removing Tags from an Individual Item

To remove a tag from an individually tagged component, follow these steps:

1. Select Part tagging from the Tools menu.
2. Click on any of the tags within a Tag group.
3. Click the Remove Individual button.
4. Select All or Objects with parts from the Quick Properties depending on need.
5. Click the component you wish to remove a tag from. This will remove any tags from that tag group from the item. The tag remains in the list, but now contains one less component.



Removing Tags from a Selection of Components

1. From the Part Tagging dialog, select the tag you want removed by clicking it. Multiple tags can be selected by holding Ctrl and Left-Clicking on the tag.
2. Have your target components selected. Multiple components with different tags can be selected.
3. Click on the Remove selection button.

If no components are selected in the drawing, clicking the Remove selection will have no effect.
