リリースノート : CET 15.0 Major (日本語）

CET 15.0 Major: May 20, 2024

 All Editions News & Changes

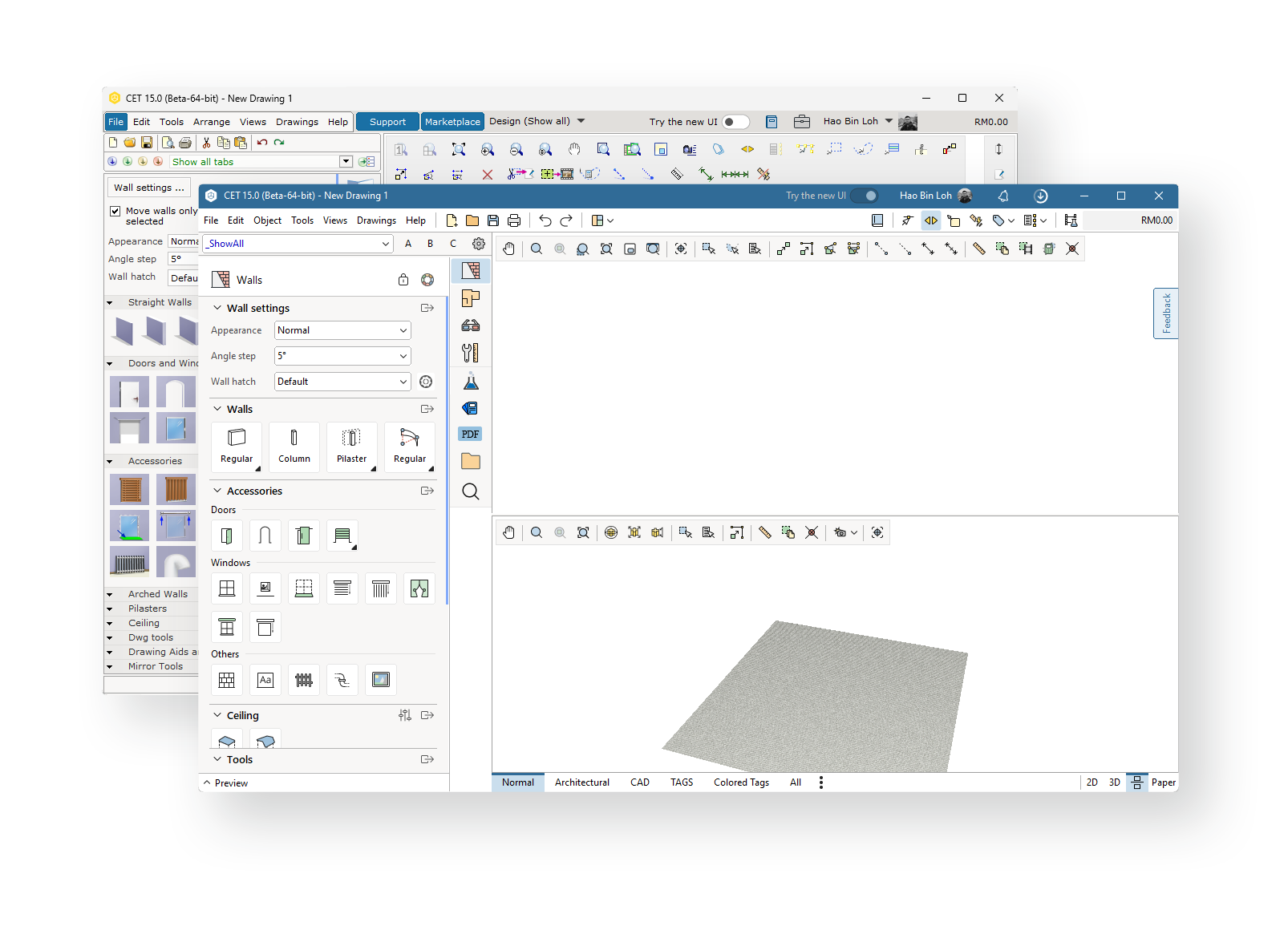

Feeling Fresh? Well, so is CET with its New Look! ✨

• Guess what? We've given CET a fresh new look! Say hello to a sleeker, more modern interface that's easier on the eyes and smoother to navigate.

  While providing the CET experience users know and love, we're also constantly looking to enhance usability while paving the foundation to deliver exciting new features. This facelift is our initiative towards a more modernized look and standardized user experience across our platform.

  And the best part? Both looks will co-exist for a while to help ease the transition, so it's totally up to you if you want to opt-in and enjoy the makeover or stick with the classic look for now.

  Dive in and experience the change for yourself!

New Quick Chain Dimensions

• Introducing Quick Chain Dimensions! Thanks to automatic detection and snapping to snap points on objects, this tool lets you place chain dimensions faster and with fewer clicks. Quick chain dimensions work with any type of objects in CET, from any Extension, and once placed their properties and behavior are equivalent to those of the regular chain dimensions.

New Quick Measure Mode

• We have implemented a new Quick Measure mode to make measuring and dimensioning even easier and smoother. Toggle this mode on with the M key or the icon above the 2D view, select an object and then watch how CET detects and measures the distance to other surrounding objects!

  Clicking the target object launches a radial menu with accessible options to select the object, set the distance to the object, or insert the dimension. Once placed, the properties and behavior of these dimensions are equivalent to those of regular dimensions.

CAD Updates

• The CAD Settings dialog now has an option to import materials. Remember that materials are not embedded in your CAD drawing and that you will have to have them available locally on your computer for the import to work.
• When importing a CAD drawing, there is a new option for flattening the 2D in the 3D view. Up until now, this was the default behavior but it can now be enabled/disabled at will.
• The CAD Settings dialog can now be resized. For your convenience, and to support better readability of long file names, just click and drag to adjust the window size. You can also move the vertical divider to adjust how the space in the dialog is being distributed.

Updates to the Customer's Own Material (COM) Dialog

• Product information COMs can now be configured in CET's COM dialog where the following fields are available for editing:

  • Part Number
  • Description
  • Supplier
  • Manufacturer
  • Length Unit
  • Price per Unit
  • Shipping Information

• In the COM dialog, users can now choose which material Length unit to use when COM part information is being generated.
• We have added a column to the Calculation, allowing users to enter the length of a material manually. Data from this column will be used in the price calculation of any COM parts that have been created as a result from the COM being applied.
• The Calculation will now display the product information that was set up when creating a COM.
• COM part information will only be displayed as a line in the Calculation if a part number, description, and unit price are provided.
• Upon export, COM part information will be combined if they share the same part number, supplier, shipping info, approval number, and price per unit. Additionally, the original parts to which the COM is applied will be included as an option line in the COM part information.

Movie Studio Retired

• As previously communicated, the Movie Studio Extension is retiring with the release of CET 15.0, and will be automatically removed for you. For similar and additional functionality in creating walkthroughs, renderings, and panoramas, check out Twinmotion.

  You can still load any drawings made using the Movie Studio Extension, however, the path functionality will be absent.

Fixes & Enhancements

Improvements

• Japanese Yen (JPY) and Chinese Yuan Renminbi (CNY) now have their own entries in the Control Panel settings for Currency.
• To enhance usability and reduce errors, distance input fields will now warn if you try to enter invalid input by highlighting the text or numbers in red.
• The Selection Criteria tool now offers enhanced support, allowing for more precise selection based on default or custom Text, Lines, Dimensions, Areas, and Hatching styles.
• For drawing tools, modifications made to the styles of Text, Lines, Dimensions, Areas, and Hatching, can now be saved from the tool's quick properties box. Saving the style from the quick properties will enable applying it to objects in the current drawing, whereas saving it from the Styles dialog will allow it to be applied in other drawings, too.
• The chain dimension icon is now added to the 2D tool bar for user convenience.
• To provide a clearer overview and avoid clutter, chain dimensions now default to not showing the dimension for each of their legs. If you want to turn that back on, you can edit how the dimension is displayed from the quick properties box.
• We have updated the tooltips on dimensions to make it clearer what each of the snap points actually do.
• An option has been added to the quick properties box for dimensions and chain dimensions, letting you change their alignment (Diagonal/Vertical/Horizontal) after placement.
• For improved consistency and clarity when working with multiple floors, we have updated the Level Overview by renaming the 'Base' level to 'Outside' when no additional levels are created, and then changing it to 'Base' when additional levels are in fact created.
• We have renamed some of the properties for ceilings, shown in the green quick properties box during both placement and editing.
• We have ensured that all text objects have at least one Category assigned to them to help facilitate view filtering.
• To avoid unwanted changes, we have added a warning that will pop up when you make changes in the Calculation that will affect one or more Blocks or Alternatives.
• For the Catalogue Picklist, found in the Catalogue Browser, we have improved navigation and keyboard usability.

Crash Fixes

• Fixed issue with Alternatives that could cause a crash when an alternative was deleted.
• Fixed issue with the Text component where selecting text in the dialog box could cause a crash.
• Fixed issue with Photo Lab that could result in a crash when rendering.
• Fixed issue with 2D Viewclips that in some cases could cause a crash when being resized.
• Fixed issue with frozen walls that could cause a crash when clicked over and over again.
• Fixed issue with loading of drawings that contained panels from the Fika Extension that in some specific cases could result in a crash.
• Fixed issue with the Essential Shelving and Essential Pallet Racking Extensions where modifying the shelf elevation in the Bay Editor could cause a crash.
• Fixed issue with the Essential Pallet Racking Extension and using the Replicate tool that could cause a crash.
• Fixed issue with the Essential Pallet Racking Extension and replicating a large number of pallet racking systems that could cause a crash.
• Fixed issue with the Essential Pallet Racking Extension where performing an undo command after inserting the Tunnel component could cause a crash.
• Fixed issue with the Deep Racking Extension where changing the number of frames from the quick properties box could cause a crash.
• Fixed issue with Essential Conveyor Extension and the Point to Point auto conveyor tool that could cause a crash.
• Fixed issue with the Essential Cantilever Extension where removing racking systems by dragging a rectangle around them with the Remover tool could cause a crash.

Bug Fixes

General Fixes

• Fixed problem with rendering tasks timing out that would cause CET to incorrectly handle that as a crash instead of silently restarting the render task.
• Fixed problem with some of the Japanese translations.
• Fixed problem with imported CAD files displaying distorted lines in 2D.
• Fixed problem where imported CAD drawings would show more lines than they did in AutoCAD.
• Fixed problem with imported images or PDFs in the 3D view that in some cases would turn black.
• Fixed problem with Elevations that would not show up properly after being printed to PDF.
• Fixed problem with exporting a drawing to the DWG/DXF file formats that wasn't working.
• Fixed problem where walls were being slow to load, and where doors would not create openings in wall properly.
• Fixed problem with walls that would cause a heavy floor shadow to show in renderings when using doors or other openings without thresholds.
• Fixed problem where the hinge side for circular windows could not be modified.
• Fixed problem where custom railings were placed on the ground instead of the stairs in the 2D view.
• Fixed problem with industrial stairs and the cross bracing under the landing disappearing when another landing was attached to it.
• Fixed problem with the rectangle removal tool not fully removing racking systems.
• Fixed problem with caching for both 2D and 3D to improve performance.
• Fixed problem with blocks and calculations not supporting manual part adjustments such as description or quantity.
• Fixed problem with objects including large meshes that could cause prolonged loading times.
• Fixed problem with the custom text in baseline dimensions disappearing when stretched.
• Fixed problem with search highlights disappearing upon updating schemes properties.
• Fixed problem with Project Info where the Phone and Fax information wouldn't save and reload properly.
• Fixed problem with the Calculation that would cause the calculation lines to be very slow to move.
• Fixed problem with Calculation showing empty groups.
• Fixed problem with Customer Own Material (COM) codes not being included during export to SIF.
• Fixed problem with Calculation to allow manual adjustments to identical COM lines.
• Fixed problem where the floor was unable to be hidden in 3D viewports.
• Fixed problem with the Freeze hotkey (Ctrl+E) that wouldn't freeze objects in Photo Lab's live view.
• Fixed problem where CET would freeze when the default printer was missing.
• Fixed problem where printing reports would crop the text.
• Fixed problem with the Quality settings in the Photo Lab that would sometimes not be saved after being edited, or when switching between the Simple and Advanced mode.
• Fixed problem that could cause some materials to show as brighter/white when rendered using the Realistic Light setting in Photo Lab.

Flooring Essentials

• Fixed problem with Flooring Essentials where the multi-slice tool wasn't functioning properly when slicing from the top or right.

Fika Extension

• Fixed problem with the Fika Extension generating an extra invisible chair when auto-placed to a table.
• Fixed problem with the Fika Extension and partially selecting panels with the Rectangle or Lasso tool.

Commercial Interiors Library

• Fixed problem with Commercial Interiors Library that resulted in the loss of calculation lines warning that a manual adjustment can no longer be applied.

Essential Kitchen EU

• Fixed problem with the Essential Kitchen EU Extension dishwashers not following the indention of the cabinet plinth.

Essential Pallet Racking

• Fixed problem with the Bay Editor attempting to overwrite existing saved files without a warning.
• Fixed problem with the Essential Pallet Racking Pre Configurator where the flue gap would randomly increase.
• Fixed problem with the Unit Load Editor where certain changes saved were not being applied to all unit loads within the drawing.
• Fixed problem with Essential Pallet Racking and distributing overhanging racks to not accommodate the required flue gap.
• Fixed problem with an All Double racking system failing to adhere to the specified input aisle width value both during and after insertion.
• Fixed problem with Essential Pallet Racking and the front indicator disappearing after stretching.
• Fixed problem with Essential Pallet Racking where a level would inadvertently be removed when dragged to the top of the frame.
• Fixed problem with Essential Pallet Racking where applying various tools didn't align with the mouse cursor when the racking system was elevated.
• Fixed problem with the saved file names in the Pre-configurator, Bay Editor, and Frame Editor to become truncated when a period is used.
• Fixed problem with the Essential Pallet Racking Extension where bays would get assigned incorrect config ID:s after a bay had been deleted from the layout.
• Fixed problem where automatic height dimensions had gone missing for elevation views.
• Fixed problem where the bay ID is wrong after placing the bay into the drawing.

Essential Cantilever

• Fixed problem with Essential Cantilever and the arms not updating after changing the arm length.
• Fixed problem with Essential Cantilever and group select that would cause only one of the bays to stretch.
• Fixed problem with Essential Cantilever and the Pre Configurator that could cause the Number of Arms field to disappear.
• Fixed problem with Essential Cantilever where the height and cross bracing property options were missing after being changed.
• Fixed problem with Essential Cantilever where changing one arm on a double cantilever didn't automatically change the other side's arm.
• Fixed problem where automatic height dimensions had gone missing for elevation views.

Essential Conveyor

• Fixed problem with Essential Conveyors and being unable to multi-select after a cut and paste.
• Fixed problem with Essential Conveyors and the floor support not attaining the correct size when connected to a 60" wide conveyor.
• Fixed problem with Essential Conveyors and the default Side Channel Height being set to 0 which is not valid. It now defaults to 3".
• Fixed problem with missing resources for Essential Conveyors in the Visibility Settings dialog.
• Fixed problem with Essential Cantilever where the preview area in the Pre configurator didn't show metric units after changing settings in the Control Panel.
• Fixed problem with non-standalone accessories that were not automatically removed when stretching a conveyor.
• Fixed problem with the Polyline insert conveyor tool where the inserted conveyers were not adhering to the specified input elevation value.
• Fixed problem with Essential Conveyors and changing zone length to end elevation for multi-zone conveyor units.

Essential Shelving

• Fixed problem with clicking the refresh button in the Frame Editor that would change type selection.
• Fixed problem with the Essential Shelving Frame Editor and the Side Element Height not applying to the frame after the second modification.
• Fixed problem with the Essential Shelving Frame Editor where mirroring a frame could inadvertently affect other frames in the drawing.
• Fixed problem by removing Configure in Properties from the Essential Shelving Extensions as it does not serve a purpose.
• Fixed problem with Essential Shelving where the preview area in Bay Editor doesn't display the correct properties when a level is selected.
• Fixed problem with Essential Shelving that could cause a placed divider to go missing after moving the shelf around.
• Fixed problem with the Pre Configurator in the Essential Shelving Extension where the preview would not update to show changes to the frame material, if the frame side was set to 'Closed'.
• Fixed problem with Essential Shelving and the calculation field "Shelf Height" under tire beams is now renamed as "Height".
• Fixed problem with Essential Shelving the Pre Configurator that would not apply an added value unless the Enter button was hit.
• Fixed problem where automatic height dimensions had gone missing for elevation views.
