Layer Standards
Layers are the primary method for organizing geometric objects in a drawing/block by function or purpose. Accurately naming the layers can reduce complexity and improve display performance to increase efficiency for the end user. In addition, layers allow the user to hide information that they may not need to see at a certain moment.
All of our 3D blocks are initially processed through a 3D solids converter. We have found that longer layer names can be truncated. You can see this is what happened here:

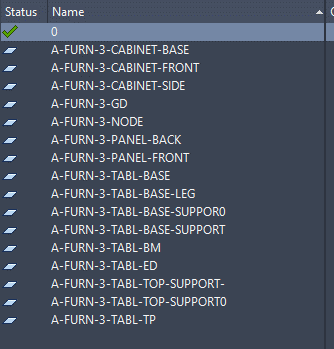

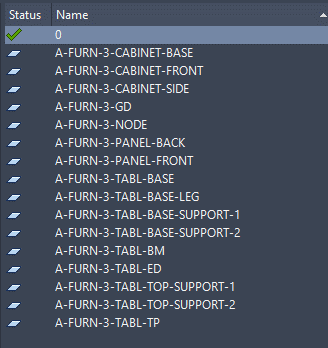

Original 3D File Layer Names Processed 3D Layer Names
For your convenience, we've attached a Sample Layer Name spreadsheet to be used as a reference.
Screenshot of the Categories tab in the attached Sample Layer Name spreadsheet
Screenshot of the Seating Guide tab in the attached Sample Layer Name spreadsheet
