Step 3: Add 2D & 3D File Names → 2D, 3D
The third step is to add ONLY the names of the 2D and 3D DWG files for each given Part Number.
DO NOT ADD THE EXTENSIONS.
- For example, if the extension is "PL24_2D.dwg", only enter "PL24_2D" into the appropriate column.
IMPORTANT!
Make sure the DWG file names and spreadsheet names are an exact match. If not, the symbols will not work.
Make sure the DWG file names and spreadsheet names are an exact match. If not, the symbols will not work.

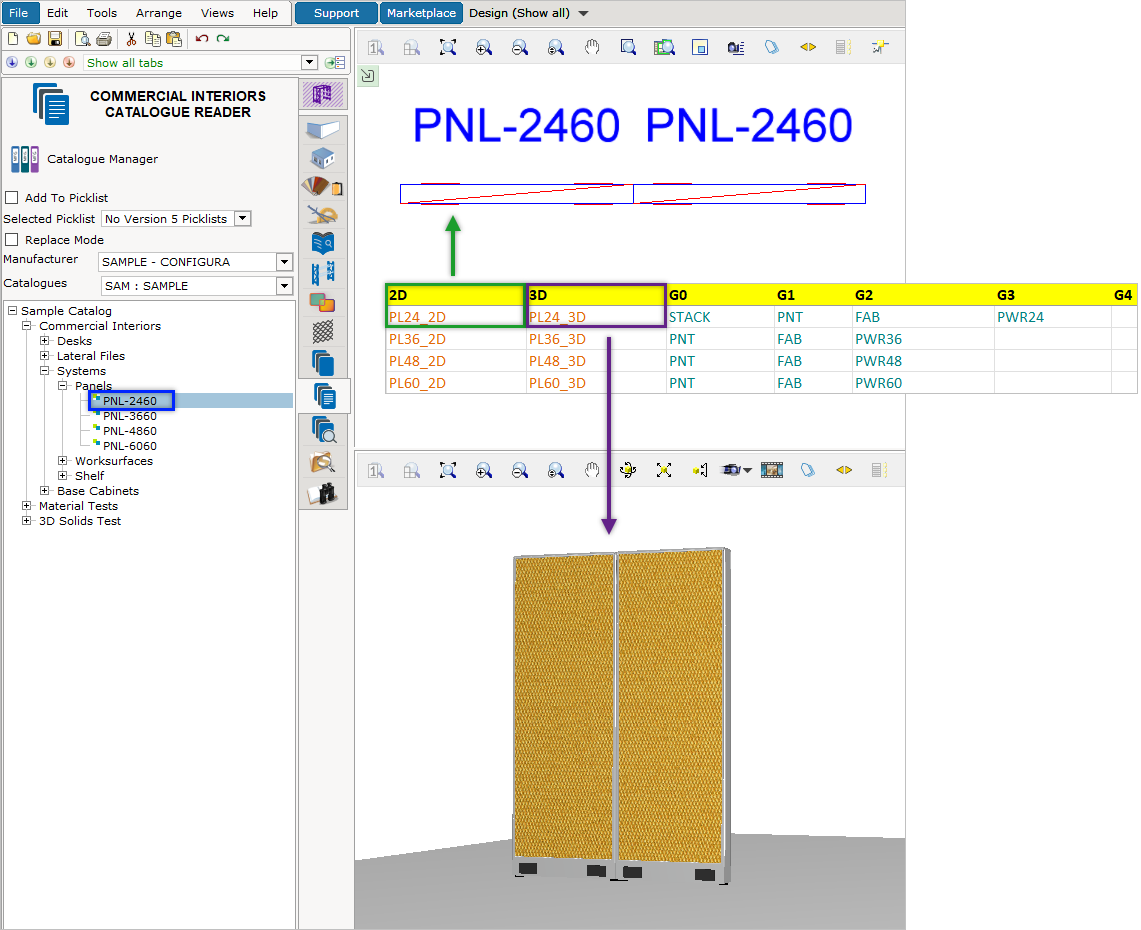

The 2D and 3D columns work together with the G0-G6*, PO, and SO columns to display the graphics inside CET, Spec, and Workspace. Check out our 2D/3D DWG File articles for more information!
* Additional G columns may be added depending on the product options.
