Crash Fixes
- Fixed issue with drag and drop of papers that could cause a crash.
Bug Fixes
- Fixed problem with Paper View that could cause some papers to change to portrait mode layout and refuse to be changed back.
Crash Fixes
- Fixed issue with Autosaveing that could in rare cases cause a crash.
- Fixed issue with the Guarding Extension that could cause a crash.
Bug Fixes
- Fixed problem with saving drawings and settings, which caused drawings to grow noticeably larger when saved. In rare cases, CET could completely fail to save.
- Fixed problem with loading of Papers that could in some cases cause loading to fail.
- Fixed problem with Blocks and DWG export that could in rare cases cause the resulting objects to not look correct when imported back into CET.
- Fixed problem with View Clips that prevented the Visibility Settings dialog from applying changes to other View Clips.
- Fixed problem with some Selective Pallet Racking objects that could cause them to be immediately removed after placement.
CET 14.0 Major: May 22, 2023
All Editions News & Changes
Help Menu
We have given the Help menu in CET a refresh. This includes a new unified dialog for requesting new features and reporting bugs as well as gathering a lot of things, that used to get their own separate dialogs, into one location in the About CET ... dialog.
The new About CET ... dialog also contains relevant information about your computer’s hardware in one easy-to-access location.
Drag and Drop Files
CET now supports dragging and dropping of files directly from web links in your browser such as CET drawings, Favorites, DWG files, and SketchUp objects.
Initial support for this functionality primarily targets Chromium-based browsers such as Google Chrome and Microsoft Edge. It may still work with your favorite browser (but not Firefox), but we cannot make any guarantees.
Photo Lab

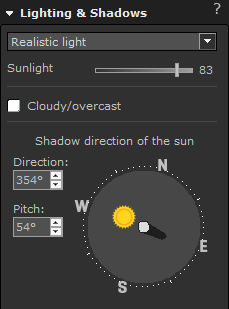

A slider has been added to the Photo Lab Realistic light settings to allow control over the Sunlight.
The Temperature Post Processing option in the Photo Lab has been enhanced with a colored slider to make it easier to understand and use.
As a part of this change, we are also replacing the old Auto temperature button with a new White balance control dropdown and picker tool.
Exporting Filter
When exporting from CET, the Export Filter dialog will now offer a setting to match what is currently used in the drawing.
Follow 3D View

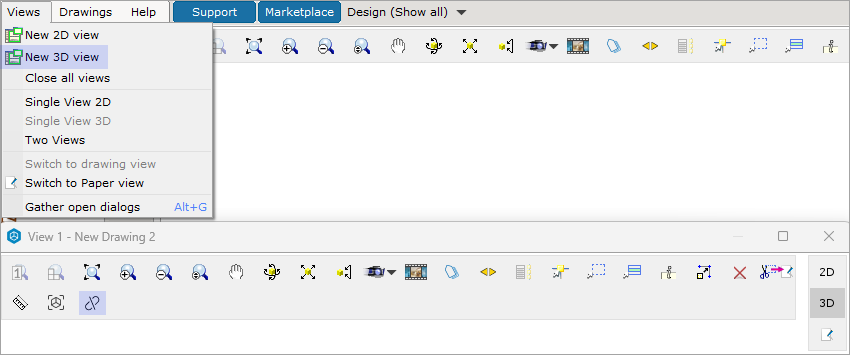

A new setting, Follow 3D View, has been created for additional 3D views. This setting works like the Follow 2D View option to make the camera in additional 3D views follow the main 3D view.
Matting Option
We have expanded and improved the Frame options for the Image on wall object. You now have more detailed control over frame width and material in addition to a Matting option.
Extension Updates
IFC
-
Select IFC For Move has been added as a new tool for IFC import. This lets you select all IFC objects, as well as the Zero Point, in your drawing to move them while preserving their original positions for export.
-
- This should remove the need to go through the tedious process of unlocking, moving, and re-locking the objects.
-
RevLink
- The RevLink Extension now supports filtering during export.
-

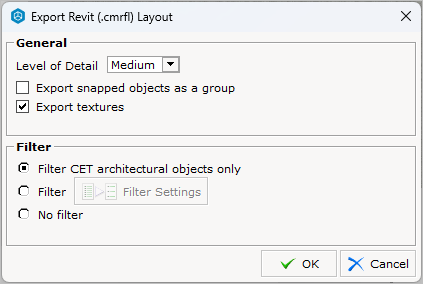

The Export Revit Layout dialog also offers a pre-defined option for filtering out CET architectural objects. This replaces the old option found in the RevLink Settings, that defaulted to excluding architectural objects.
News & Changes
Extension Updates
Commercial Interiors Library
-
We have added a quick access button for Spec next to the Calculation dialog button – no more need to first export to SIF!
- Removed (ProjectMatrix) and (ProjectSymbols for CET) from the Commercial Interiors Library license/extension name in Extension Details.
Flooring
- You can now track product waste and reusability with the new Calculated waste function. This feature is used to specify the number of cuts per product and view gross/net/waste calculations.
- Waste reuse is a new tool that lets you place an overview of how the product is being cut, what is reused, and what waste this would produce.
- Roll products are now a supported option, both in the flooring catalogue and as custom products! With this feature, you can move/add seams and adjust settings for width/length margins as well as cut gaps.
- We are excited to announce that you can now incorporate cove bases into your flooring designs. Included with this feature is a Cove base legend that breaks down the different cove base products by tags and total measurements.
-
With the addition of these new tools, two new sections have been added to the Flooring tab; Product Tools and Roll Tools. Each new section includes buttons to support these exciting new features. In addition, some buttons have been moved around to improve the workflow. As part of this the Product Legend tool has been renamed to Flooring Legend.
-

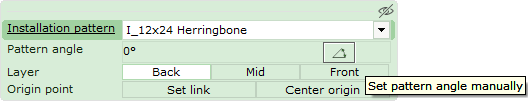

We have added a new tool to the Pattern angle option found in the floor Property box. You can use this tool to easily set pattern angles without having to guess the correct angle value.
- The Color selection tool has been expanded to include the ability to manually add colors by their RGB values and the option to save custom colors.
- When creating/working with custom products, you can now add auxiliary data information such as data keys and values.
-
To help reduce the amount of storage usage, most flooring catalogue data is now only downloaded once actively used in a project.
Extension Updates
Essential Kitchen EU
- A new tab has been added to the Extension, letting you add a variety of different handles and grips to your cabinets.
- Search field has been updated to automatically remove the Search text when you click in it.
- The new Worktop view mode lets you not only stretch worktops, but also customize them and do cool editing such as corner cutting or creating rounded ends.
- Wall cabinets now include support for adding Bottom Molding.
- Added a Worktop Types dropdown that controls which material group you wish to use materials from. This also automatically adjusts Thickness as needed.
News & Changes
New Extensions
Essential Deep Racking
Attention all Material Handling users! After successful testing in the Experimental stage, the Essential Deep Racking Extension is now available for free to all CET Material Handling users. Get started by visiting the marketplace today.
Essential Guarding
It just got easier to ensure workplace safety! We are excited to release the Essential Guarding Extension for free to all Material Handling users. Now you can easily add machine fencing and safety products to your project. In addition, this Extension now includes barrier systems, previously located in the Industrial Equipment Extension.
PBR Material Pack
In addition, a new material pack has also been made available to Material Handling users. PBR Material Pack for Material Handling comes with over 70 new high-quality materials and is completely free!
General Updates
- We have updated the default floor material from a light grey plastic to a more suitable material.
Fixes & Enhancements
Improvements
-
Updated several default wall and floor settings. This will impact some default values and materials to better reflect the most commonly used defaults for different industries.
-
- Note: This will not replace any settings that you have changed.
-
- Double clicking on a placed Photo object in Paper View will now open the Choose photo dialog. As part of this, CET now also supports inserting unrendered photos.
- Improved handling for loading of saved Papers should lead to less complaining from CET about missing Extensions.
- When using the Clear/Reset function of the Clean Start dialog, asking CET to reset your preferences will now also reset any custom Component Tab configurations.
- You can now override the Angle Step setting from the Control Panel while placing Dimensions by holding down the Shift key, same as for other tools and objects.
-
Project Info now allows you to access and edit the Top Note and Shipping Note field variables.
- Improved performance for the Photo Lab when cropping rendered images with Post Processing options enabled.
- Preview renders in the Photo Lab will now complete faster. Also, switching between rendered images will no longer cause preview renders to switch back from View to Edit mode.
- Improved the quality of results for the Exposure Post Processing option.
- Improved performance for the Style Editor when switching styles.
- Improved performance when stretching Catalogue objects.
- Improved performance when using very large textures for COMs.
- Updated the way tool tabs created from Catalogues are handled; these tabs will no longer require the Catalogue Browser Extension to show up.
Crash Fixes
- Fixed issue with Essential Pallet Racking and Undo/Redo that could cause a crash.
- Fixed issue with Essential Kitchen EU and cabinet positioning that could cause a crash.
- Fixed issue with the Reconfiguration Tool and Export to Configura SIF that could cause a crash.
- Fixed two different issues with the Selective Racking Demo Extension and the Bay Editor that could cause a crash.
Bug Fixes
- Fixed problem with moving Tagging rectangles and Undo that could cause objects to retain the tag, even though Undo has moved the rectangles away from the object.
- Fixed problem with Paper View and the Control Panel setting for Show only contour lines for 2D that would cause Tag colors to only show as black in View Clips.
- Fixed problem with CollabPro and duplication of grouped Papers that could mess up page numbering.
- Fixed problem with printing that could in some cases cause imported PDF images to shift position in the printed results.
- Fixed problem with printing to PDF that could cause Chinese characters in imported DWG files to go missing.
- Fixed problem that could cause CET to refuse to start if the printer set as default is no longer present on your computer.
- Fixed problem with sinks in Essential Kitchen EU that prevented them from being placed unless a worktop was present.
- Fixed problem that could cause snap points that only allow for connection or stretch to display a tooltip saying “rotate group”.
- Fixed problem with stretching of imported SketchUp objects with Even scaling enabled that would cause the objects to get darker when stretched.
- Fixed problem with SketchUp that could cause the 3D Warehouse to open in the web browser rather than the built-in dialog.
- Fixed problem with the Scheme dialog that could cause resizing to make parts of the dialog glitch out.
- Fixed problem with Revert changes to Scheme that could prevent material finish options from reverting back to Undecided.
- Fixed problem with Windows in walls that could cause window bars to stretch far up outside of their parent window.
- Fixed problem with moving of architectural Walls that could sometimes cause them to move away from their selection indicator box.
- Fixed problem with selecting objects on Levels that could in some cases cause the Level overview to incorrectly change its level selection.
- Fixed problem with Levels and adding ceilings that could cause the ceiling to replace Level 1 rather than being added to the currently active level.
- Fixed problem with Property boxes that could sometimes cause them to flicker while zooming.
- Fixed problem with Baseline Dimensions that would prevent changes applied through the Property box from being visible immediately.
- Fixed problem with Angle dimension precision that could for some region settings cause “,” to incorrectly be replaced by “.” as a decimal separator.
- Fixed problem with Microsoft Windows that could cause the language input mode to change when switching between different fields in a Property box.
- Fixed problem with Property boxes that could in some cases cause them to become extremely wide.
- Fixed problem with uninstalling CET that could prevent the removal of the CET Data folder, resulting in a lot of unwanted files being left behind on the drive.
- Fixed problem with the Control Panel option for Clear previous versions now that could cause unwanted files to be left behind on the drive.
- Fixed problem that could prevent users from logging in to Citrix if MyConfigura was not reachable.
- Fixed problem with Property boxes that could sometimes cause unit conversions to be incorrect when adding a measurement unit after inputting a fractional number.
- Fixed problem that could cause manually added lights to disappear from a Fluorescent Ceiling when enabling Area Lights from the Property box.
- Fixed problem with the Light Settings dialog that could cause the IES profile to not be visible for Lights that are part of a light group.
- Fixed problem with Elevation views that could cause the text label to overlap with the elevation image.
- Fixed problem with Reconfiguration that prevented the article view from being sorted by the Comments column.
- Fixed problem with Reconfiguration that could cause a correct comparison to show incorrect quantities in the Compare diamond.
- Fixed problem with Panels that could cause changing materials on copied panels to also affect the original panel.
- Fixed problem that could in some rare cases cause materials placed on one part of a model to also show up on other parts of the model after re-opening the drawing.
- Fixed problem with Blocks placed on multiple Levels that could prevent the blocks from receiving the correct Level categorizations.
- Fixed problem with the Ghost rendering option in the Photo Lab that could cause designated ghosts to still be visible in the final render.
- Fixed problem with the Render Accelerator and rendering of very large scenes that could cause the render to never start, leaving it forever stuck at 0%.
- Fixed problem with the Visibility dialog for View Clips that would cause the Categories to not be listed in alphabetical order.
- Fixed problem with Paper View and Capture image from the Photo Lab that could in some situations prevent the captured image from being pasted into Paper View.
- Fixed problem with Paper View that could prevent Data Fields from updating when changes were made in the Project Info dialog.
- Fixed problem with imported DWG files that could cause them to appear black when rendered.
- Fixed problem with DWG export that could in some cases cause the export filter to not correctly filter out items.
- Fixed problem with Custom Shapes, Levels, and the Create Hole option that could cause the edges around the hole to look impossibly thin.
- Fixed problem with the creation of favorites that could in some rare instances cause all objects in the favorite, except for one door, to disappear.
- Fixed problem that could in some cases cause CET to incorrectly claim a need for missing Extensions to load a drawing.
- Fixed problem with the Calculation dialog that could cause its contents to not fill available width.
- Fixed problem with the Calculation dialog that could cause it to keep refreshing its contents.
- Fixed problem with COMs used in schemes that could prevent them from being automatically applied to newly placed objects.
- Fixed problem with Essential Pallet Racking and Categorization that prevented some subcategories from being visible or usable.
- Fixed problem with the Essential Pallet Racking Bay Editor that would cause frames to appear as an opaque grey material instead of transparent blue.
- Fixed problem with Essential Pallet Racking that could in some situations cause back fences to block off tunnels.
- Fixed problem with the collision avoidance system for Essential Pallet Racking that could sometimes place beams where it shouldn’t.
- Fixed problem with Essential Pallet Racking and changes to frame width that could prevent the frame foot from changing its width to match.
- Fixed problem with Auto Tag that would in some cases prevent tags from applying correctly to pallet racks.
- Fixed problem with Tag individually that could inadvertently result in items hidden from view, due to filtering, being tagged anyway when using click and drag.
- Fixed problem with Tags that could in some cases prevent Tag Styles from saving correctly.
- Fixed problem with Loading of drawings from laggy network locations that could in some cases cause loading to fail.
- Fixed problem with stretching/repositioning of objects that could lead to them jumping between extreme positions rather than moving smoothly.
- Fixed problem with SIF export that could prevent the Buy % column from being exported.
- Fixed problem with SIF export to OFDA XML that could cause the Buy % value to be inverted (for example 70% became 30%).
- Fixed problem with SIF export that could in rare cases cause an item's specification to go missing.
-
Fixed problem with the CTRL+ALT+W command and the Commercial Interiors Library Extension that could cause the command to not do anything.
-
- Please note that this fix means the shortcut is once again working for its original command, which is File → Clear.
-
