Export

The contents of each block (except Compare) can be exported to any file type that can be generated from exporting an Article View in Calculations. To export, follow these steps:

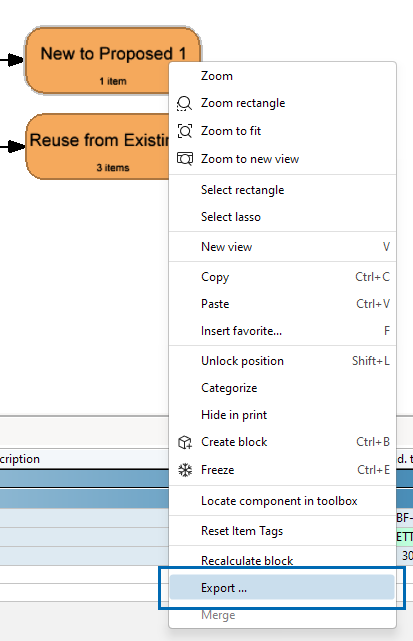

1. Right-click on the block and select Export from the menu or select the block in the chart and click the factory icon at the top of the list area.

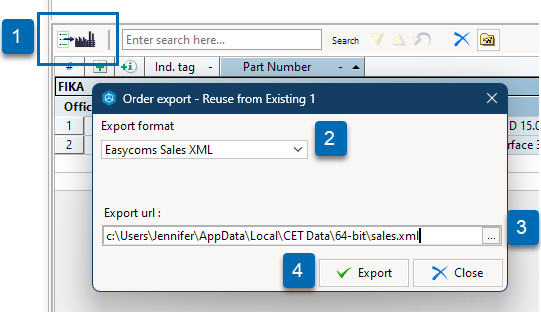

2. Select the Export format.
3. Click the ellipsis to select a file location for the export.

4. Click Export.



Print

You can print a Reconfiguration Chart and selected Article Views in the Print Reports dialog. This can be opened from the File Menu, the Quick Access buttons at the top left of the Reconfiguration Tool, or with the keyboard shortcut Ctrl + P.

From the Print Reports dialog, you can print the Chart and/or the Article Views. When you select either option, additional settings are shown on the left.

1. Select the Report Settings - CET Report tab.

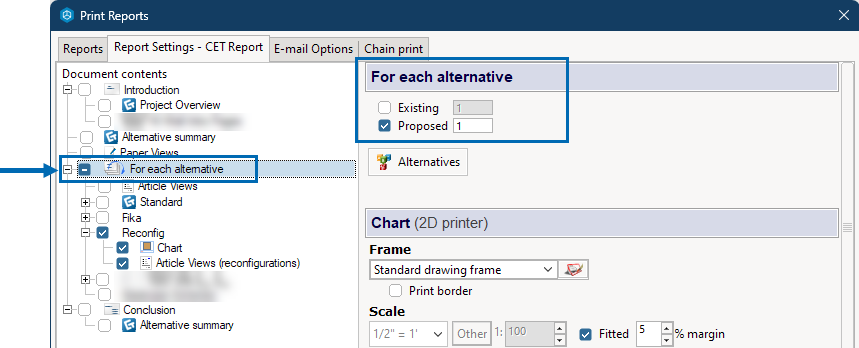

2. If your Reconfiguration drawing contained Alternatives, click the For each alternative section. When multiple Alternatives are checked, multiple copies of the reports will be printed. To print just one copy of the reports, uncheck all but one Alternative.

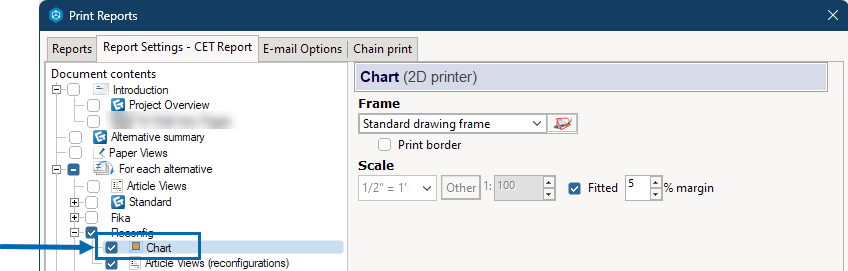

3. Check Chart if you wish to print the diagram from the top portion of the Reconfiguration Tool window.

4.

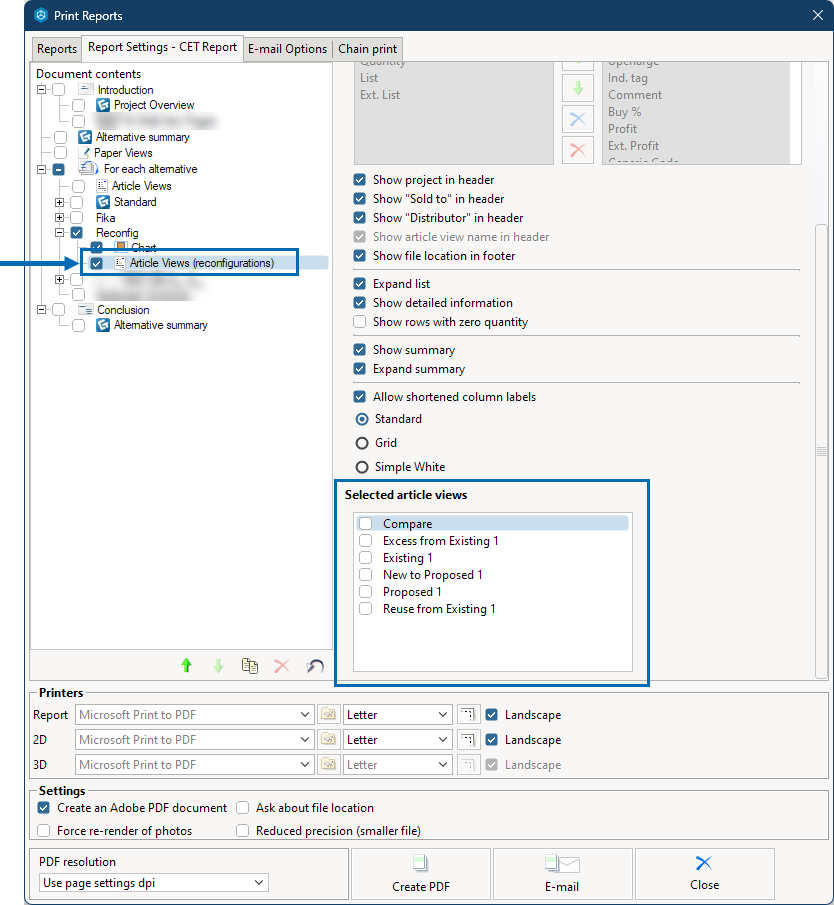

5. Check the Article Views (reconfiguration) to print the selected Article Views.

This is the same Print Reports dialog that is shown in CET. Paper Views and Article Views can be selected for the opened drawing as well as the Reconfig options. When in CET, the Reconfig section will be shown, but the Chart and Article Views for a Reconfiguration can only be printed when that file is opened.
