1. Where to Find This
2. What It Can Do

   • BSP
   • Wire Frames
   • LOD Colors
   • Meshes
   • Hidden Lines
   • Normals
   • Axis Helper
   • Bounds
   • Connectors
   • Mirror
   • ID CmSym
   • Collab G2

Where to Find This

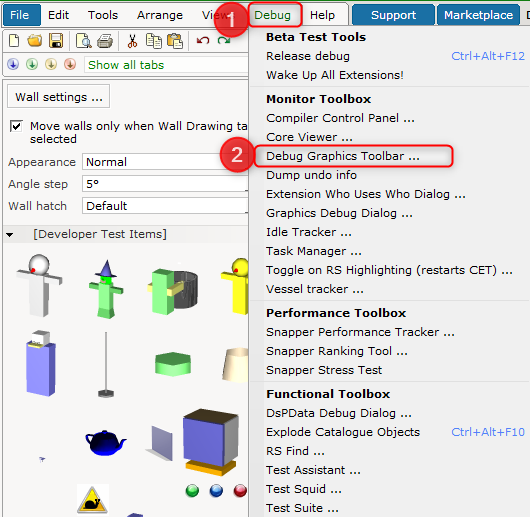

• Click on the Debug button at the top left toolbar, and click on the Debug Graphics Toolbar ... button.

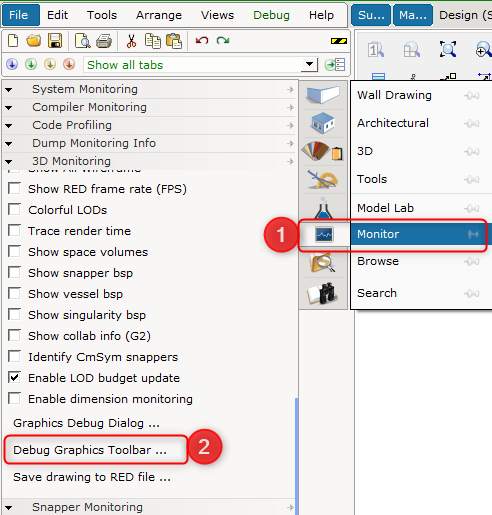

• Enable the CET Developer -> CET Monitor extension.
  And then from the Monitor toolbox, click on the Debug Graphics Toolbar ... .


What It Can Do

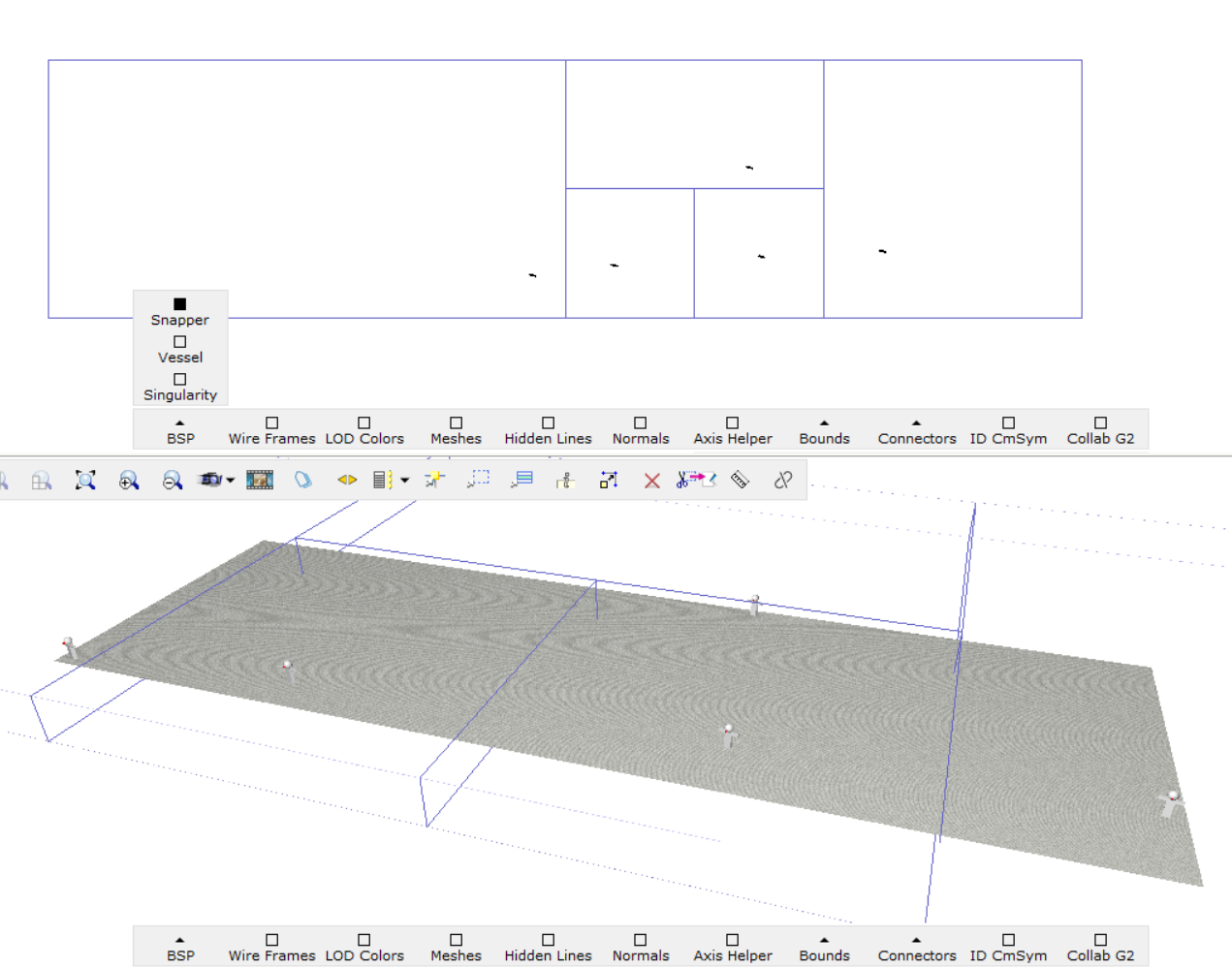

BSP

Enable this to show the current state of the Binary Space Partition.

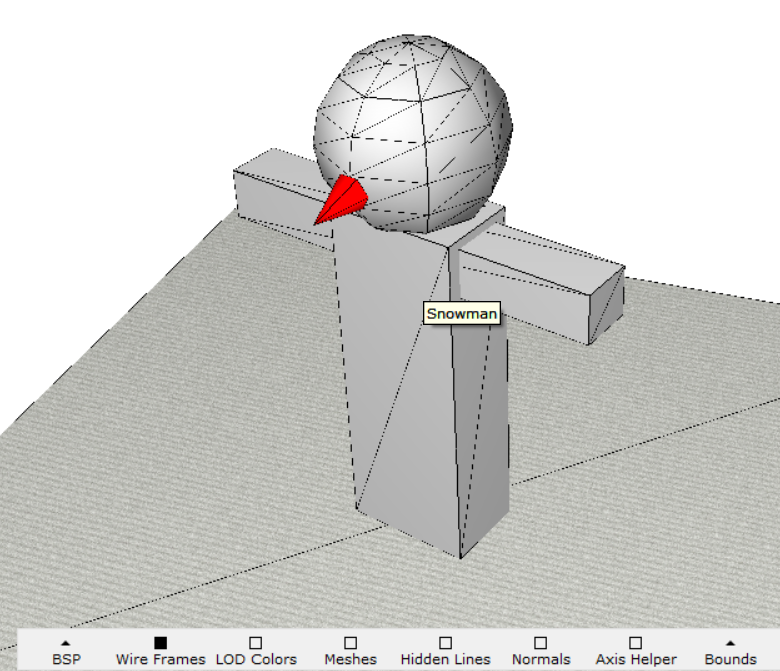

Wire Frames

Enable this to display the wireframes of all meshes of every graphical object in 3D view.

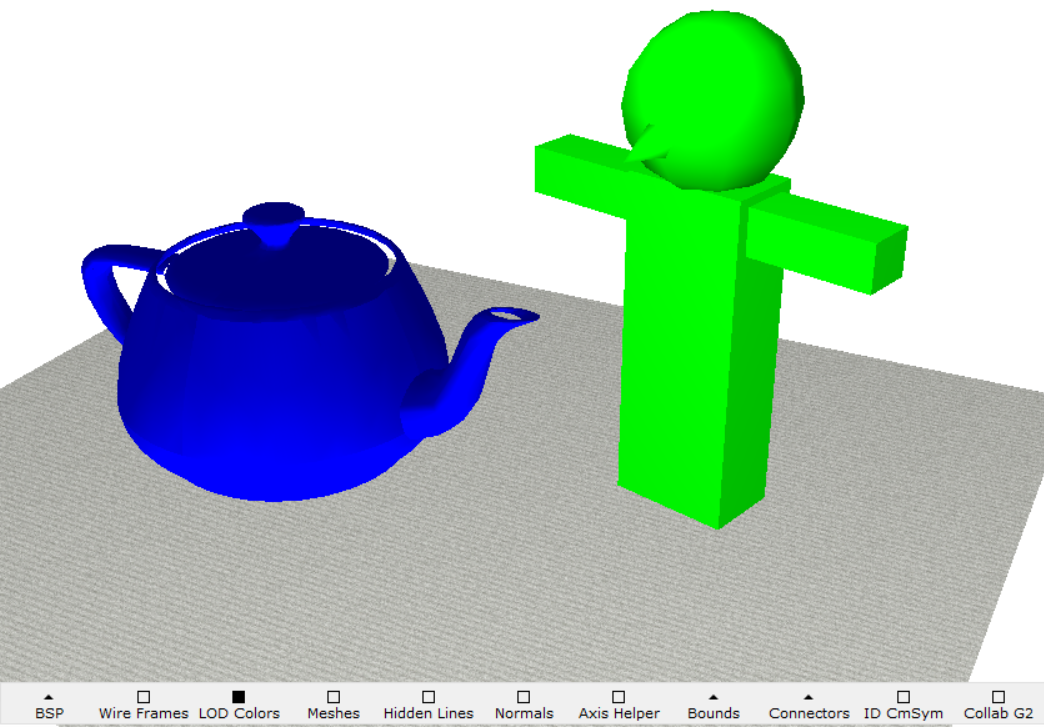

LOD Colors

Overrides color of all Snappers based on their detail levels. Super = yellow, high = blue, medium = green, low = red, lousy = gray.

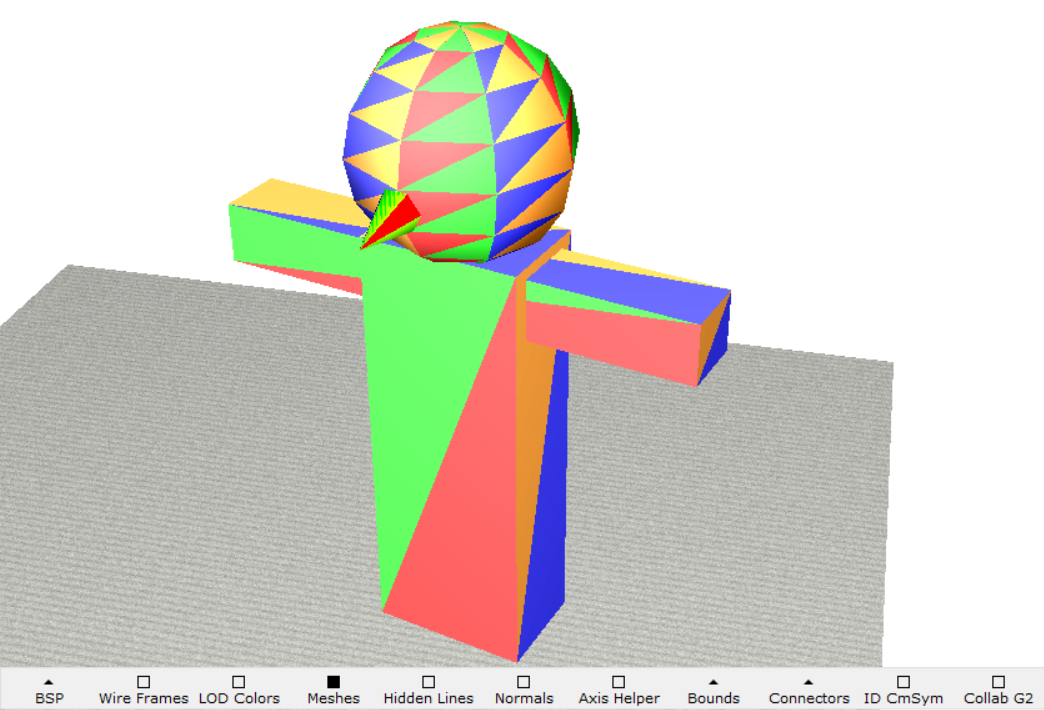

Meshes

Shows each triangle of a 3D mesh.

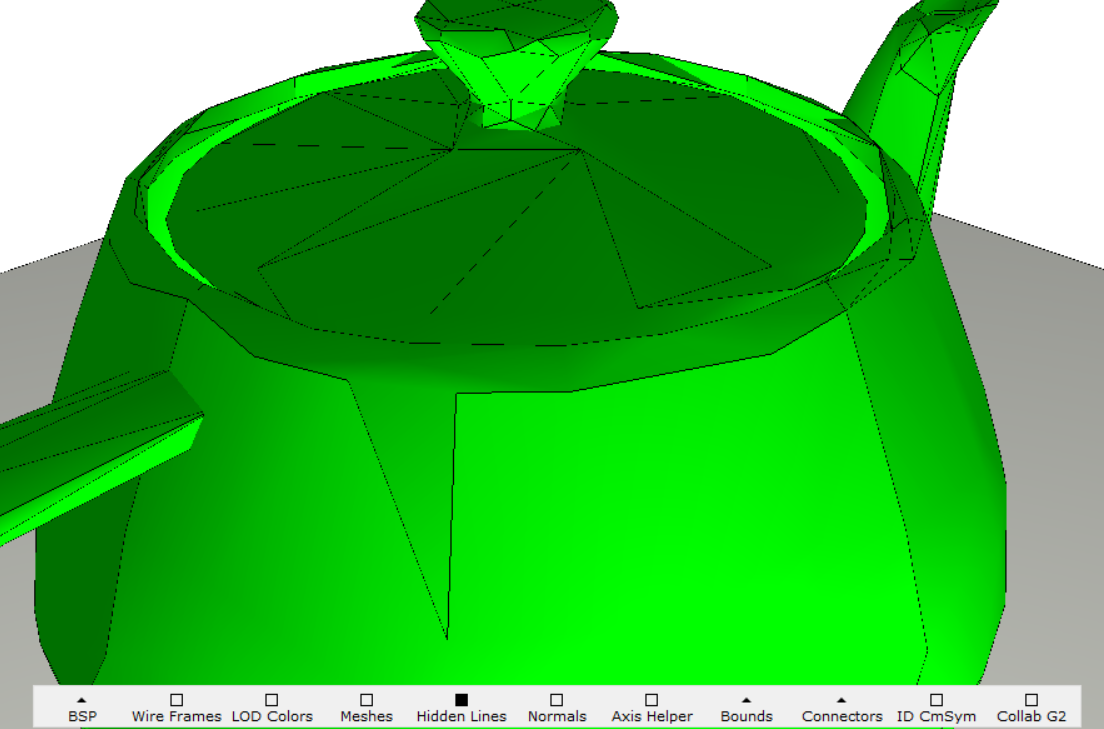

Hidden Lines

Enable this to view all hidden lines in 3D view.

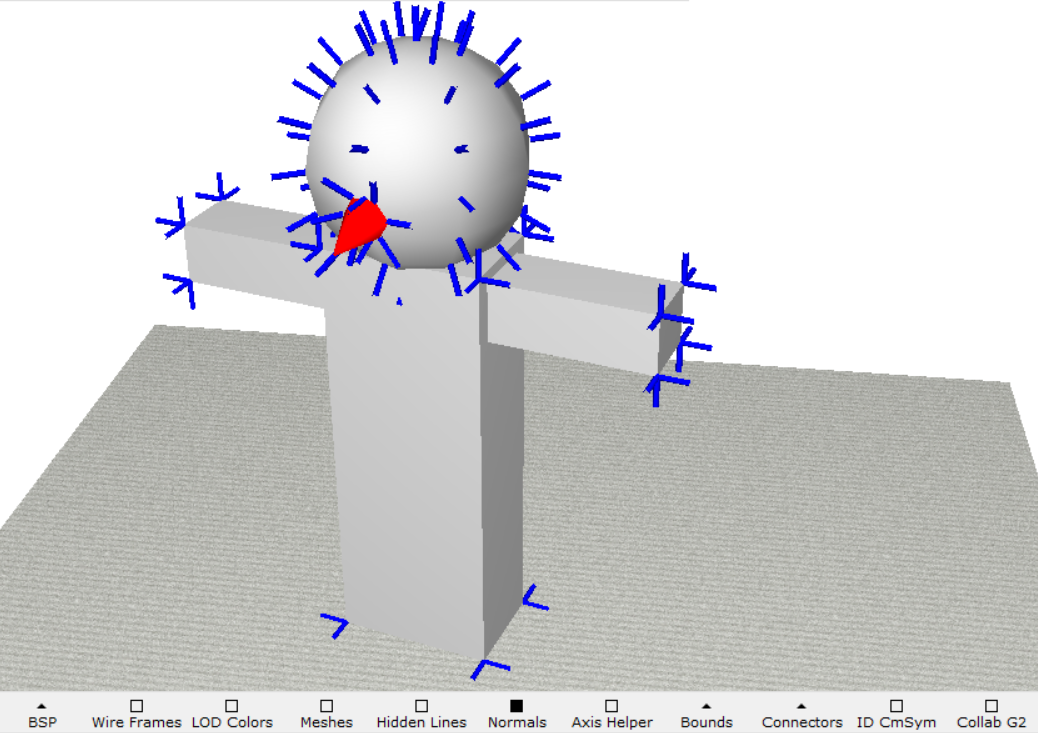

Normals

Shows the normals of a 3D mesh model.

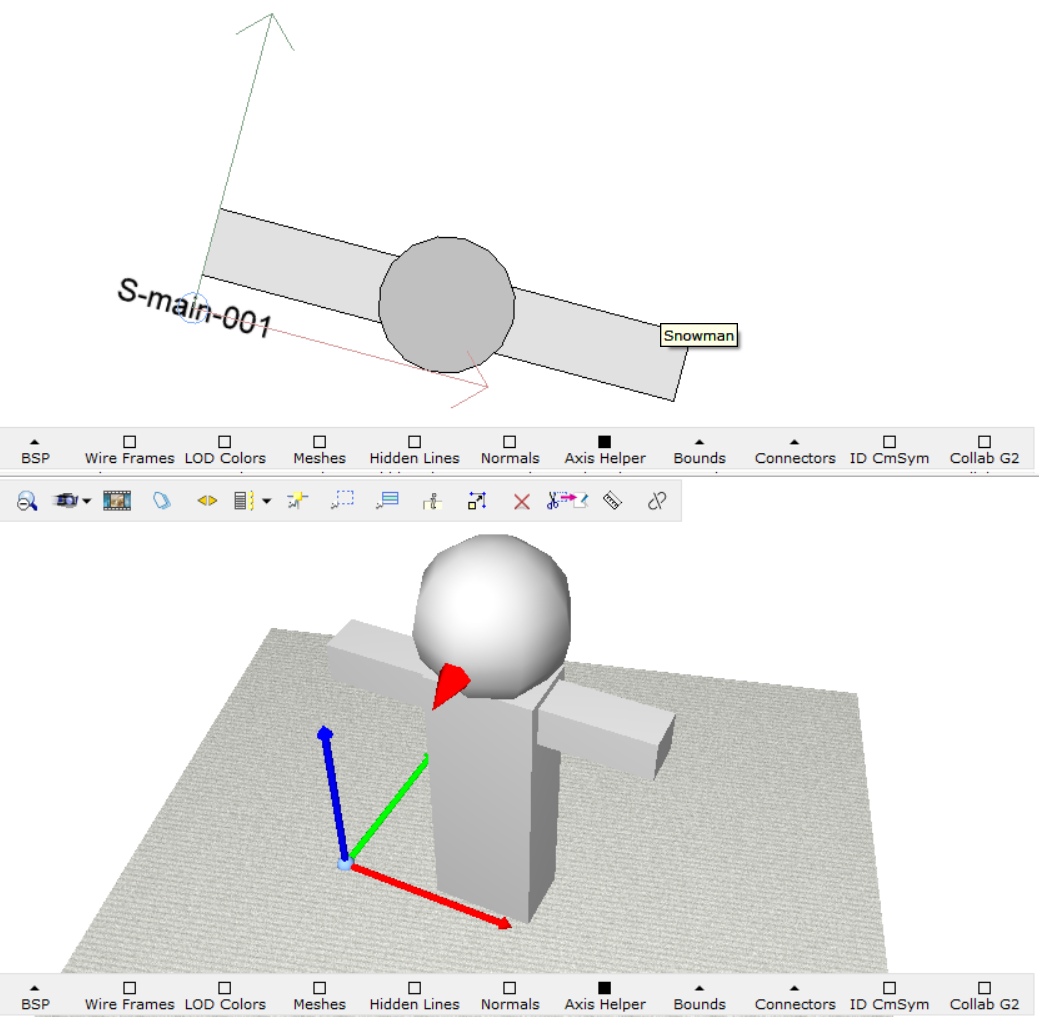

Axis Helper

Show the origin point of Snappers and its rotation.

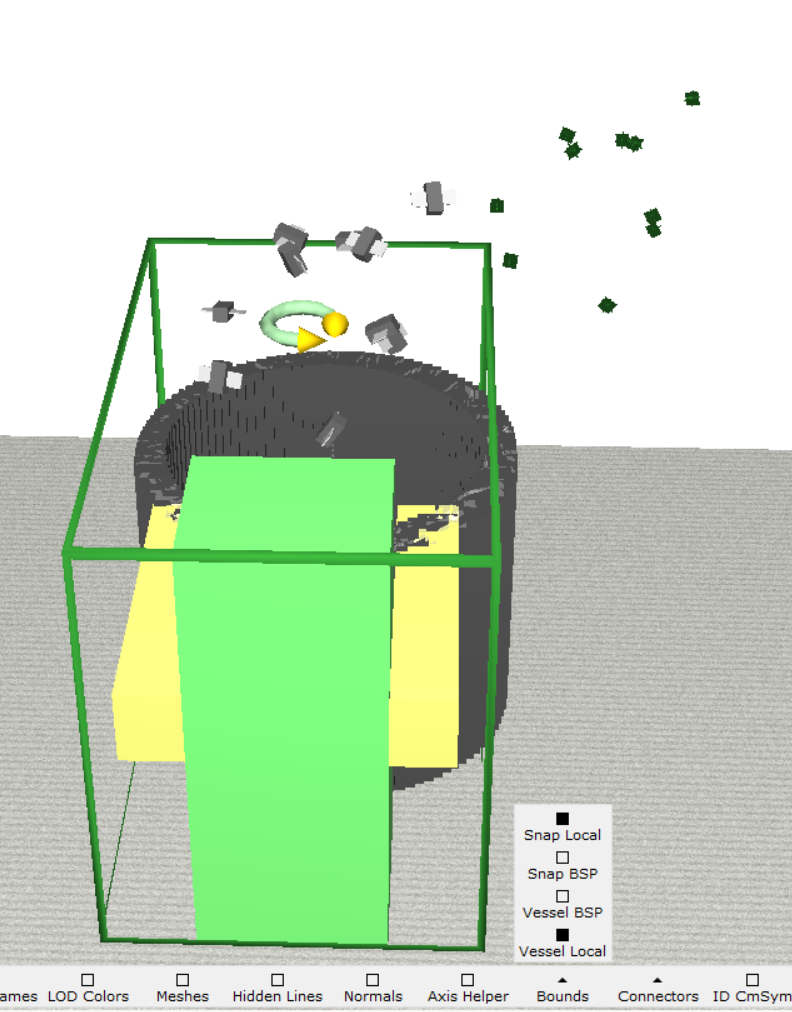

Bounds

Show a slightly expanded localBound()/bspBound() of Snappers and Vessels.

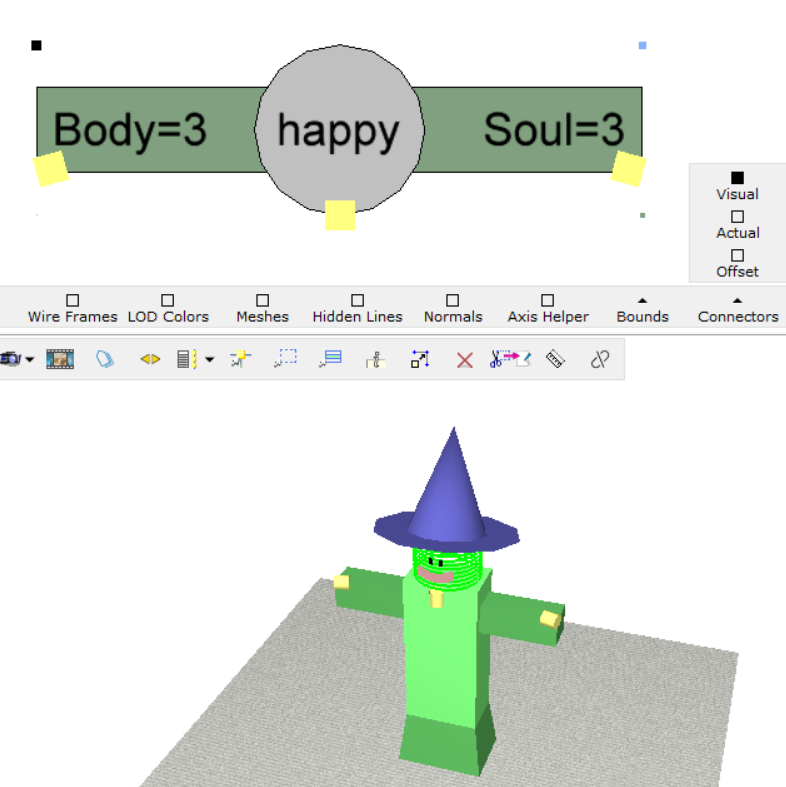

Connectors

Show all types of Connectors in a Snapper at it's visual/actual/offset positions. Clicking the Connectors graphics created by this prints some details of that Connector.

Mirror

Mirror Point shows the point2D returned from the method mirrorPoint(MirrorEnv).

Symmetry Ln draws a line crossing the mirror point with an angle set by the method angleOfSymmetry().

Mirror Point defaults to the center of the localBound. You can change it as long as it is anywhere touching the Symmetry Line.

The correct Symmetry Line is where the Snapper is perfectly symmetrical in reference to the model of the Snapper.

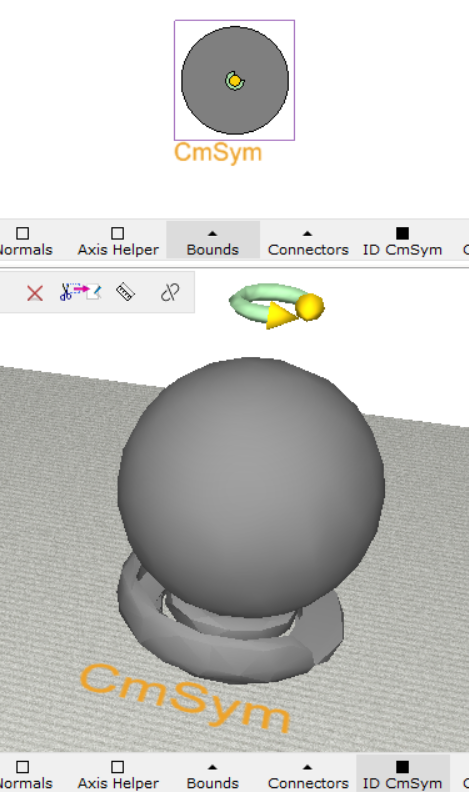

ID CmSym

If your Snapper uses cmsym graphics, a text will be printed under the Snapper.

Collab G2

If your Snapper is created in Collaboration G2, the sectionName of the Snapper will be shown.
