Through Paper View you can easily print an entire drawing, or parts of it, and also set the layout of the page. You can choose to do the design freeform or import a predefined Titleblock.
Opening Paper View
The Paper View is accessed from top right corner of the screen:

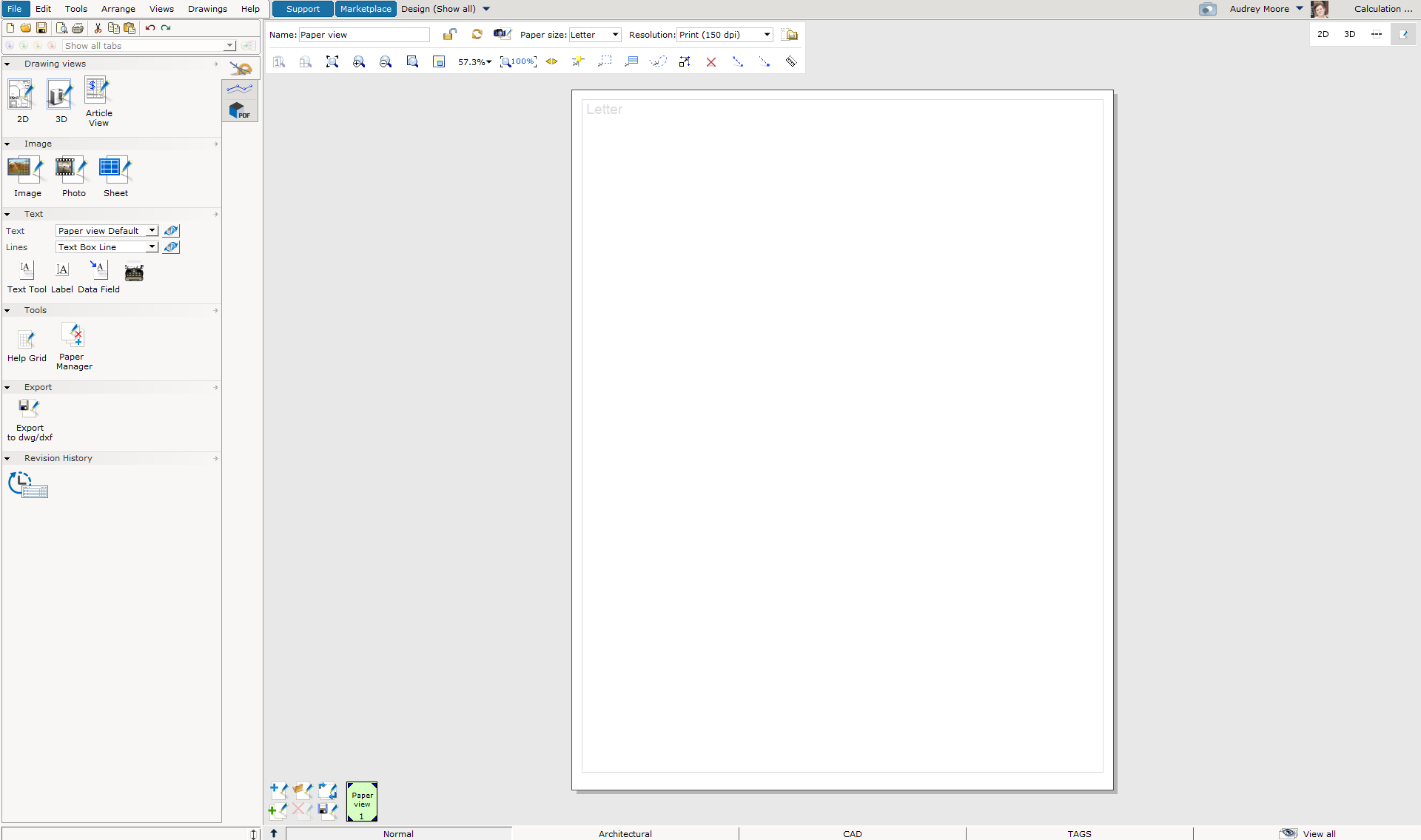

Having selected Paper View, you will see a page on which you can place a 2D View Clip, 3D Viewport, images, photos, text, and much more:
Use the tools in the bottom left corner of the paper area to manage your pages. These same tools and more can be found in the Paper Manager.
Page and Printer Setup

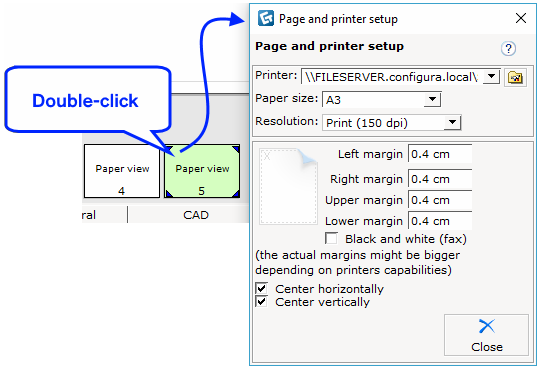

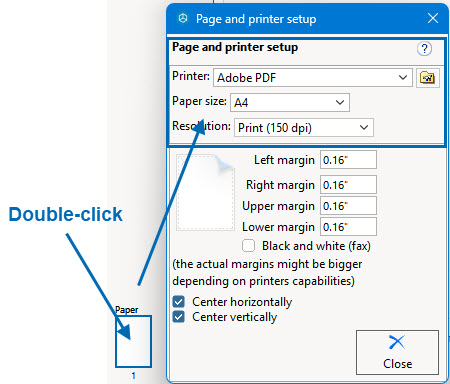

Double-click on a page to access the Page and printer setup dialog where you can set the Printer, Paper size and margins. The options available for paper sizes depend on the printer selected.
