Import Floor Plan

The Import Floor Plan tool will import a floor plan exported from Revit (*.cmrfp) using the RevLink add-in into CET. The floor plan will only be imported in the 2D view.

Export Furniture Layout

The Export Furniture Layout tool will export the drawing in CET to an intermediate file format (*.cmrfl) that can be imported into Revit using the RevLink add-in.

To export, follow these steps:

1. Click on the Export Furniture Layout button. You will be asked to name the file and select the directory to which you want to save the layout.



2. Click Export to proceed.

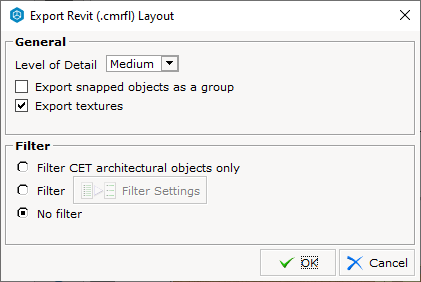

3. The General RevLink Settings will show here for modification, as well as Filters to allow and decline what to be exported.



   • Filter CET architectural objects only
     Only export objects in CET not in the Architectural Product category.
   • Filter
     The Filter Settings button will be enabled if this option is selected. Clicking on Filter Settings will open up the Export Filter dialog containing 3 different approaches of filtering: Selection, View Mode, Filter.

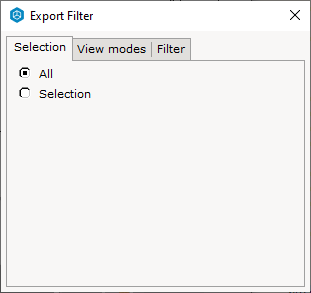

     • Selection
       All will export everything in the drawing, whereas Selection exports only what is currently selected in the drawing.

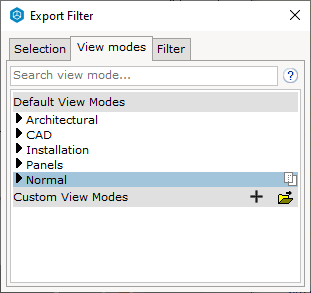

     • View Modes
       Exports what are visible in a View Mode.

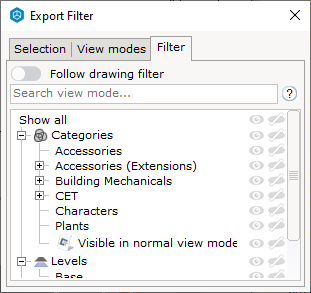

     • Filter
       Choose specific Categories to be exported.
   • No filter
     Exports everything in the drawing




4. You will find the floor plan in the selected directory with file extension *.cmrfl.

During Import Furniture Layout in Revit, the drawing from CET is converted to Revit format and family files will be created from all non-architectural objects in your drawing and they are placed in the selected Revit Project. Objects that can be exported are all interiors such as furniture and Accessories. Objects that will not be exported are any architectural objects other than walls, such as doors, windows, roofs and floors.

The families will contain parameters as defined in the RevLink Settings.

Once the objects have been imported into Revit, the Revit user can move, rotate and duplicate the objects. However, changes to the CET objects in Revit cannot be transferred back to CET.
