Hotfix 1: March 26, 2025
Crash Fixes
- Fixed issue where inserting a racking system into a drawing could cause a crash.
Bug Fixes
- Fixed problem with invisible selection boxes caused by 'Selection style in 2D views' defaulting to 'None' after updating to 15.5 Minor.
Notice: The 'Email Drawing' feature (Help > Email Drawing) will be removed in version CET 16.5 due to its incompatibility with the new Outlook release. We encourage users to utilize the Send Feedback feature for submitting bug reports and feature requests moving forward.
CET 15.5 Minor: February 19, 2025
All Editions News & Changes
New Features
- We are excited to introduce Auto Categorization to help simplify the process of assigning categories to objects before placing them. After enabling this tool from the toolbar, you can select categories for objects in advance and add them without assigning categories individually later.
To enable this feature, click the icon on the toolbar:

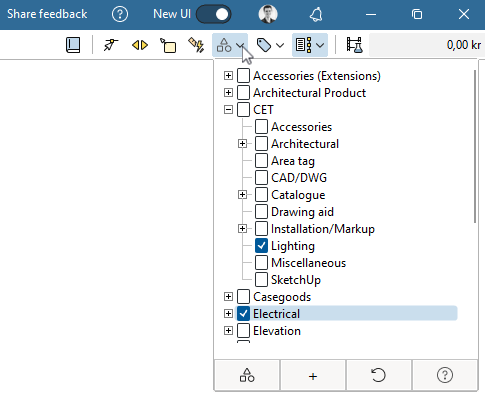

Then, click the arrow to open the dropdown and select the categories you want to add to the next symbol you insert:

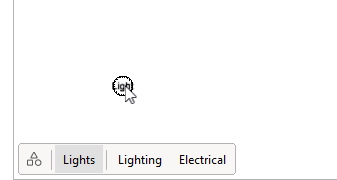

Once you do, what categories are about to be added are previewed. In the example below, 'Lights' stem from automation from the object itself, while 'Lighting' and 'Electrical' were selected in the dropdown: - The 'Measure and Scale' tool has been added to the Quick Property box of DWG drawings. If you know the length of a line in the DWG in the real world, this tool will help to scale the entire DWG to match the real-world measurements quickly.
- The option to disable PDF creation using vector graphics has been re-enabled. To help keep file sizes down, we have also automatically enabled the 'Reduced precision (smaller file size)' checkbox in the Print dialog.
- PNG images with transparency background can now be used. While stacking multiple images is possible, semi-transparent PNGs may have some limitations—but should work in most cases.
- Auto dimensions in the Elevation View dialog can now be manually removed and will not regenerate automatically; however, you can click ‘Reset Auto Annotations’ to restore them.
- The Summary section of Calculation now supports customization, allowing you to display different pricing types for Buy, Sell, List, and Profit.

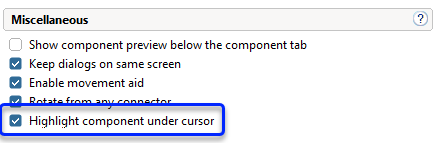

- A new 'Highlight component under cursor' option is available in the View tab of the Control Panel.

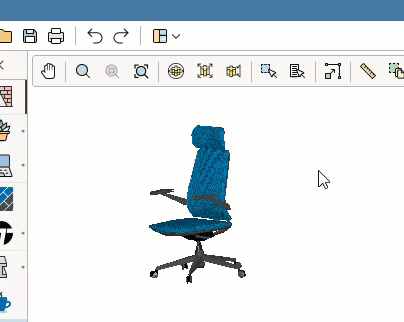

Once enabled, hovering the mouse over an object will highlight it, providing a clear preview of the selection. Depending on your settings, CET will highlight the box or the outline, including groups and frozen or locked objects.

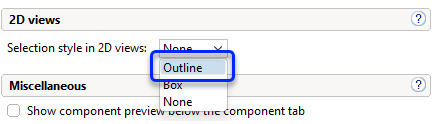

In addition, users can now choose "Outline" as the 2D selection mode in the Control Panel, which will adjust the selection indicator to wrap tightly around the object's lines. - Autosaves and backups in the 'View Backups and Autosaves' dialog are now sorted by the most recently opened drawings.

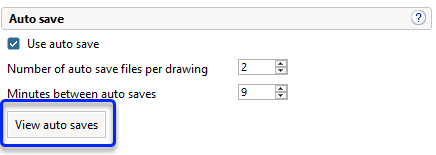

- Added a button to the Control Panel > Data management tab that allows viewing of autosaves in the local directory.
New Extension Available
- The new Navisworks Extension allows you to export CET drawings to Navisworks and open them within the application. Exported drawings can be viewed in Navisworks, which serves a viewer for CET drawings. Please note that the Navisworks Extension requires a separate license.
New Features
- Added a Configuration button next to Settings within the Essential Material Handling Extensions for quick configuration selection without opening the Pre Configurator.
- Added the ability to convert a single end row by adding another to create a double end row by unchecking the 'Add Aisle First' option during insertion in the Essential Pallet Racking Extension.
- Added a 'Cut to Fit' option to the 'Straight Accumulation Unit,' 'Straight Segmented Belt Accumulation Unit,' and 'Curve Gravity Roller Unit' within the Essential Conveyors Extension.
- Added a 'Cut to Fit' option to the 'Transportation Curve Belted Unit,' 'Transportation Curve Belt Driven Roller Unit,' and 'Straight MDR Accumulation Unit' within the Essential Conveyors Extension.
- Added a Pallet In-line Magazine and Pallet Stand-alone Magazine as accessories for more flexibility and functionality within the Essential Conveyors Extension.
- Added functionality to edit height, width, and special options when inserting an object within the Essential Guarding Extension. CET will remember the selected values for the next time.
- Added a visual animation in the 3D View when using the Rectangle and Line Fencing option within the Essential Guarding Extension.
- Added dimension visibility to the 2D View when using the Rectangle and Line Fencing option within the Essential Guarding Extension.
Improvements
- Improved performance for Essential Pallet Racking and Essential Deep Racking 3D navigation in large drawings by stabilizing the Level of Detail (LOD). The LOD for rendering will not be affected.
- Improved function clarity for the Rectangle and Line Fencing button by separating them into two distinct buttons within the Essential Guarding Extensions.
- Updated the Unit Load Editor dialog in the Essential Pallet Racking and Essential Deep Racking Extensions to match the visual appearance of other dialogs.
Fixes & Enhancements
Improvements
- Improved performance of imported PDF objects.
- Improved the dimension tools to snap to door opening edges for more accurate width measurements.
- Improved wall animation drawing aids by making them less obtrusive. They now stop when encountering another wall.
- Improved the Categorization dialog to provide more visibility details. Hovering over the information explains why it's displayed and offers guidance on how to adjust it.
- Improved the View Mode tab in the Categorization dialog by graying out checkboxes when they can't be interacted with.
- Improved the visual consistency between different tabs in the Categorization dialog.
- Improved the user interface organization of the Summary tab in Calculation > View Settings.
Individual summary settings are now clearly distinguished from global settings, improving usability and making navigation and configuration more efficient. - Improved the Help menu > 'Send feedback' feature to automatically retrieve all existing copies of log files related to the Commercial Interiors Library's (CIL) Extension.
- Improved the Flow Arrow in 3D to remain visible from all view angles in the Essential Conveyors Extension.
- The following Extensions and component tabs have been updated to align with the new user interface: Browse component tab, Search component tab, Tools (paper) component tab, Drawing (paper) component tab, and the Bathroom Accessories Extension.
- Updated the 'Visible in normal view mode' position to always be placed at the bottom of the Edit View Set dialog to match 'Visible in Print.'
- Updated the 'Walls settings' button tooltip in the 'Wall Drawing' component tab to read 'Wall Scheme'.
- Renamed the Textile Length column in Calculations to Material Quantity for improved clarity.
- Removed the 3D Viewport 'eye' icon from the bottom right due to multiple bugs and confusion. Its functionality still exists in Quick Properties > Visibility.
Crash Fixes
- Fixed issue that would sometimes occur when undoing a view mode change.
- Fixed issue with Edit Graphics causing a crash when trying to save an object that had been made editable without any further manipulations being performed.
- Fixed issue where rendering a drawing with a large number of lights within a block would cause CET to crash.
Bug Fixes
General Fixes
- Fixed problem with CET installing updates with an incorrect runtime version.
- Fixed problem with CET being slow to start up when performing a clean start through the CET Install Helper.
- Fixed problem with RevLink where the setting 'Export Architectural objects from CET to Revit' was not correctly applied to the Export dialog.
- Fixed problem where downloads sometimes failed when different parts of the software tried to use the same catalog database at the same time.
- Fixed problem where button labels and icons were misaligned when text spanned multiple lines.
- Fixed problem with long numbers in tooltips and 2D texts that could cause junk characters to appear between the digits.
- Fixed problem where arcs in regular walls, thin walls, and 2D tools did not follow the mouse direction when stretched.
- Fixed problem where drawing aids for inserting walls interfered with snapping to wall intersections.
- Fixed problem with the Positioning tool not accurately moving objects with an elevation below floor level.
- Fixed problem where the displayed range value for numerical options was incorrectly rounded off in the Quick property dialog tooltip.
- Fixed problem when selecting accessories in the Quick Properties box for integrated dishwashers and washers/dryers.
- Fixed problem where the Level buttons beneath the View Modes did not update correctly when switching between views.
- Fixed problem with incorrect View Mode names being displayed when being on the Catalogue Browser component tab.
- Fixed problem where CTRL+SHIFT wasn't working properly inside lasso select and rectangle select.
- Fixed problem with the Tool Group popup overlapping the thumbnail icon, thus obscuring the view of the button it is supposed to show.
- Fixed problem where an associated picklist group was removed after a block was exploded.
- Fixed problem with Help Lines not showing in Custom View modes, despite having the category correctly set to 'Drawing Aid'.
- Fixed problem where editing the names of Custom View modes in the Categorization dialog would cause the entire text to be removed when clicked once.
- Fixed problem where the search field in the Categorization dialog would display 'Search View Mode' regardless of selected tab, instead of only showing 'Search'.
- Fixed problem where the View Mode tab in the Categorization dialog sometimes didn't update properly, displaying incorrect information.
- Fixed problem with 2D and 3D view camera positions not being remembered correctly in saved drawings or templates.
- Fixed problem where switching from Paper View to Model View using the new user interface could cause unusual issues.
- Fixed problem with View Clips not snapping to paper margins or borders.
- Fixed problem where 2D dimension positioning was sometimes incorrect when stretched or when the associated object moved inside a View Clip.
- Fixed problem where an associated dimension's object moved in the 2D Model View, and the View Clip did not update accordingly.
Commercial Interiors Library (CIL) Extension
- Fixed problem where objects often lost user-assigned categories when added to the drawing.
- Fixed problem where clicking the Search button would incorrectly navigate to the Commercial Interiors Catalog Reader tab instead.
CET Essentials for Material Handling Extensions
Essential Conveyors
- Fixed problem where decals attached to the conveyors were not removed when the conveyors were removed.
- Fixed problem where the curved conveyor would randomly change position when stretched.
Essential Deep Racking
- Fixed problem with using Drive-In Rail as the lower rail under Mixed Rail type which could prevent the unit load from being generated on the floor.
Essential Guarding
- Fixed problem where inserting a Rectangle and Line fence would result in being incorrectly placed at ground level. It now detects level elevation based on the mouse cursor in 3D or follows the selected level in 2D.
- Fixed problem where the insert animation for fencing did not detect walls or lines of an imported PDF or DWG file.
Essential Pallet Racking
- Fixed problem where adding a bay to the left of the row sometimes caused overlap of frame and beam.
