Toggle on Quick Measure mode to quickly place dimensions between objects and move selected objects to a set distance relative to other objects in your drawing.

Enabling/disabling Quick Measure mode

Toggle this function off or on, as needed. In the old user interface (UI), the button is found on the 2D toolbar. In the new user interface (UI), the button is found in the new Toggle toolbar.

indicates Quick Measure mode is enabled.

indicates Quick Measure mode is disabled.

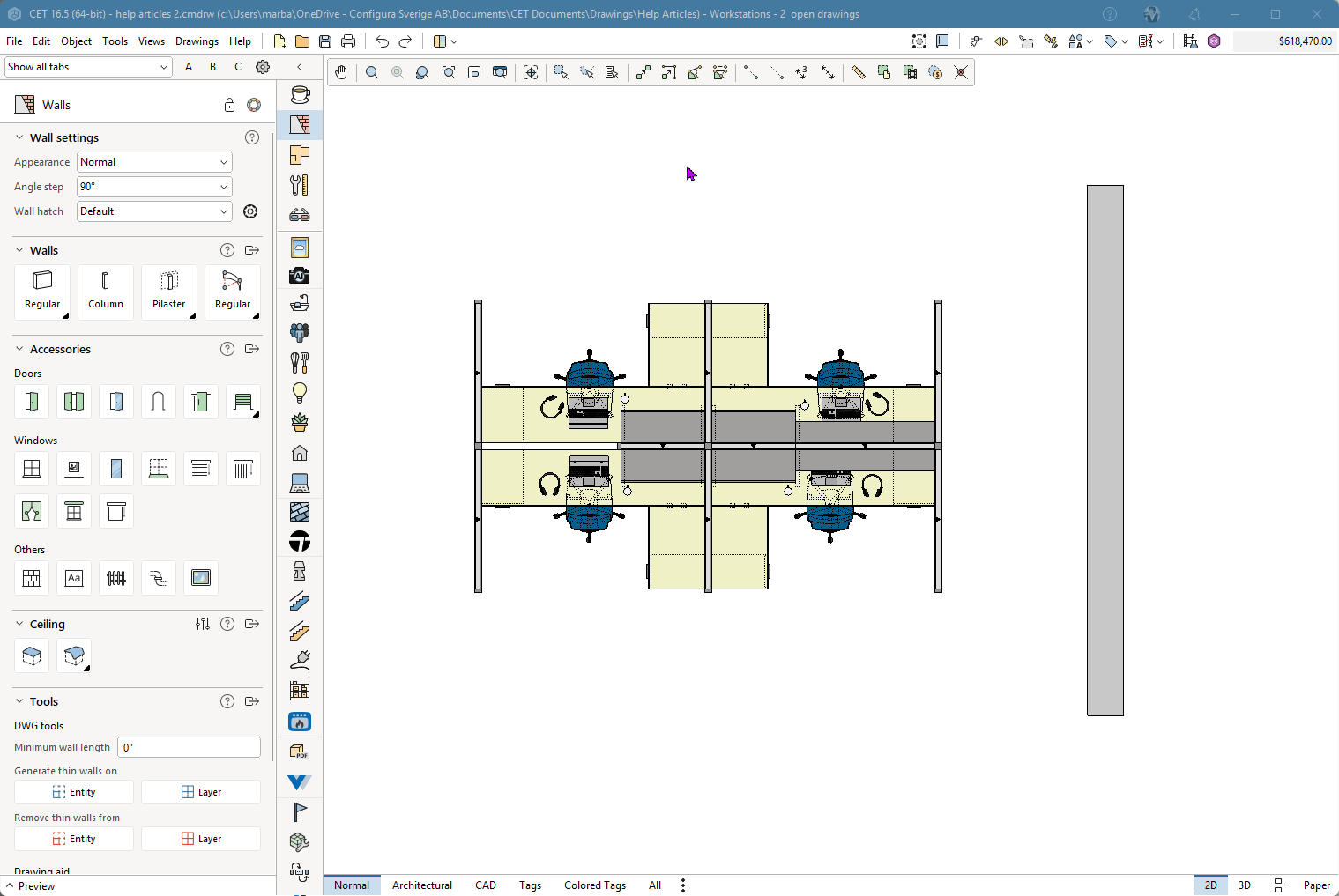

Placing a dimension

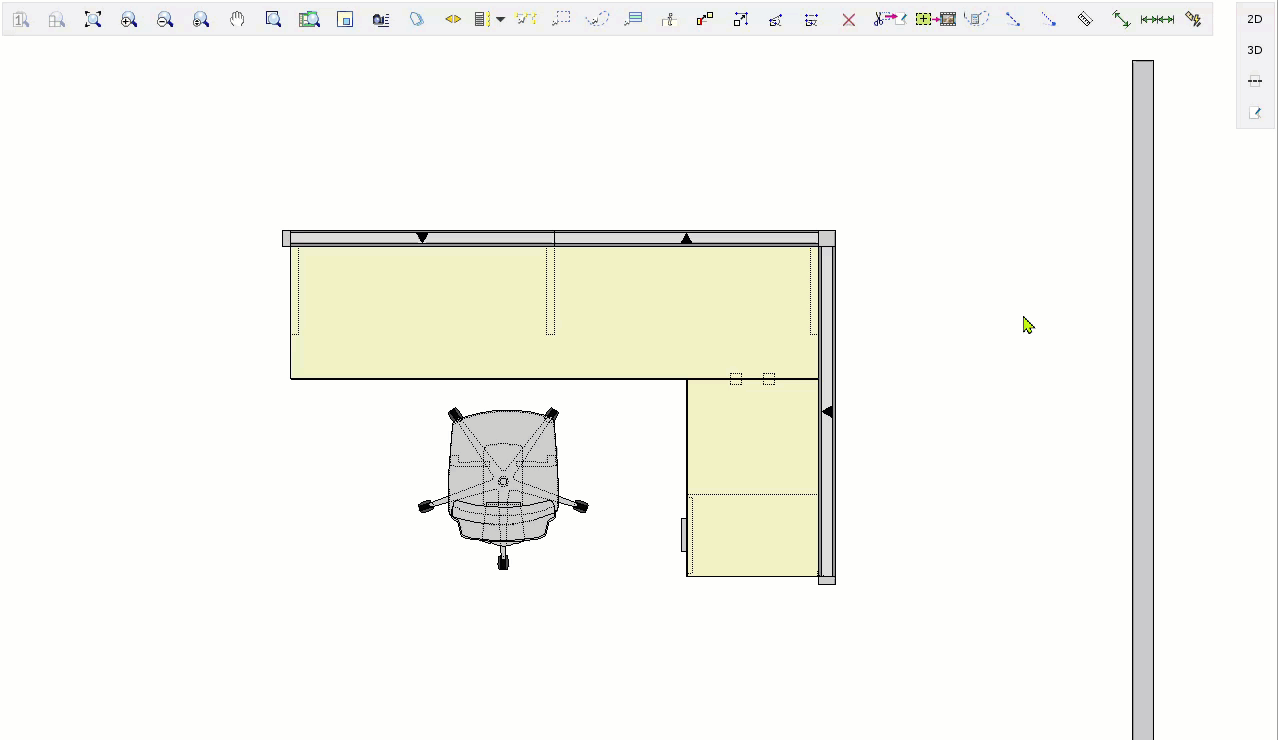

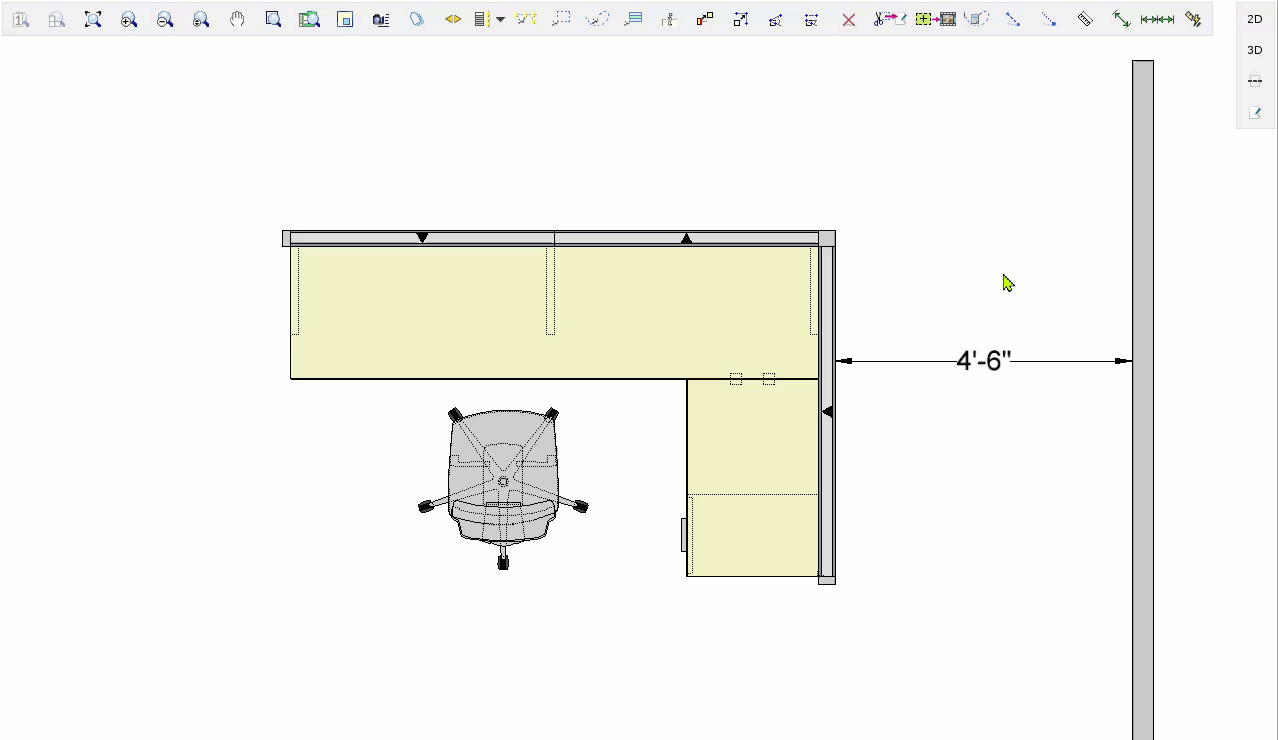

With Quick Measure mode enabled, select an object to activate the tool. As you hover over other objects, points will appear. Click on the point you would like to use, then select the Insert dimension button.

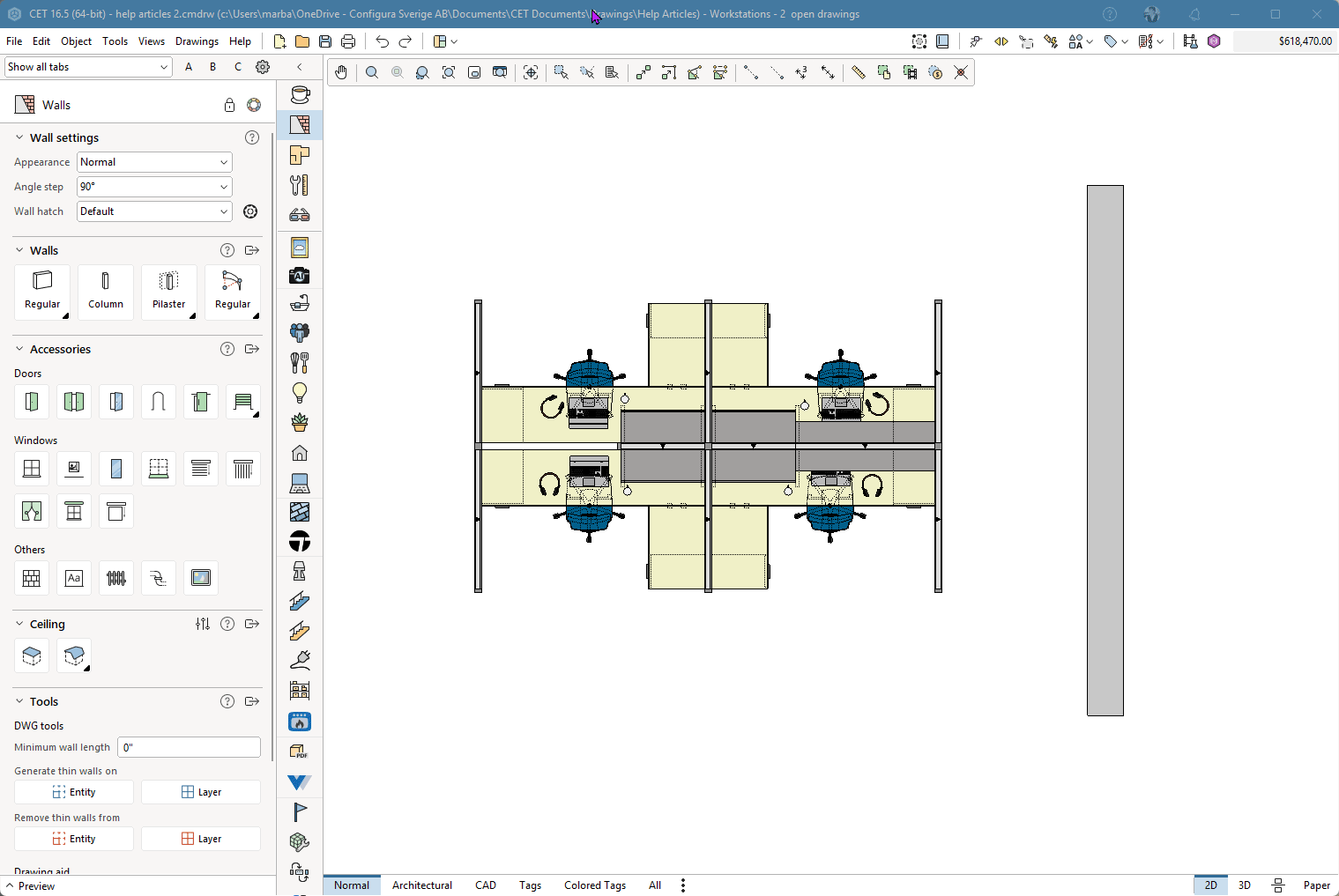

Moving an object

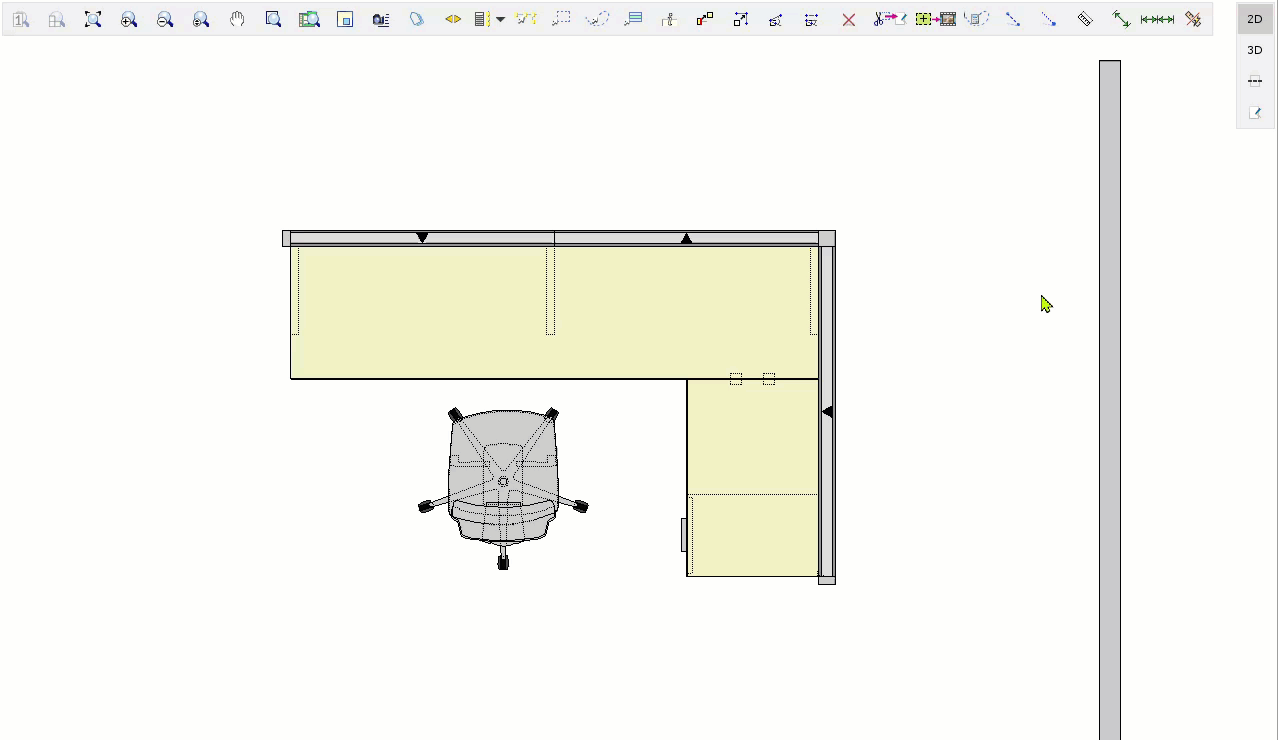

With Quick Measure mode enabled, you are able to quickly set the distance between your selected object(s) and other objects in your drawing. To do so, select the object you would like to move. As you hover over other objects, points will appear. Click on the point you would like to use, then select the Set distance button. A box will appear, allowing you to set your preferred distance. Hit enter to accept the inputted distance.

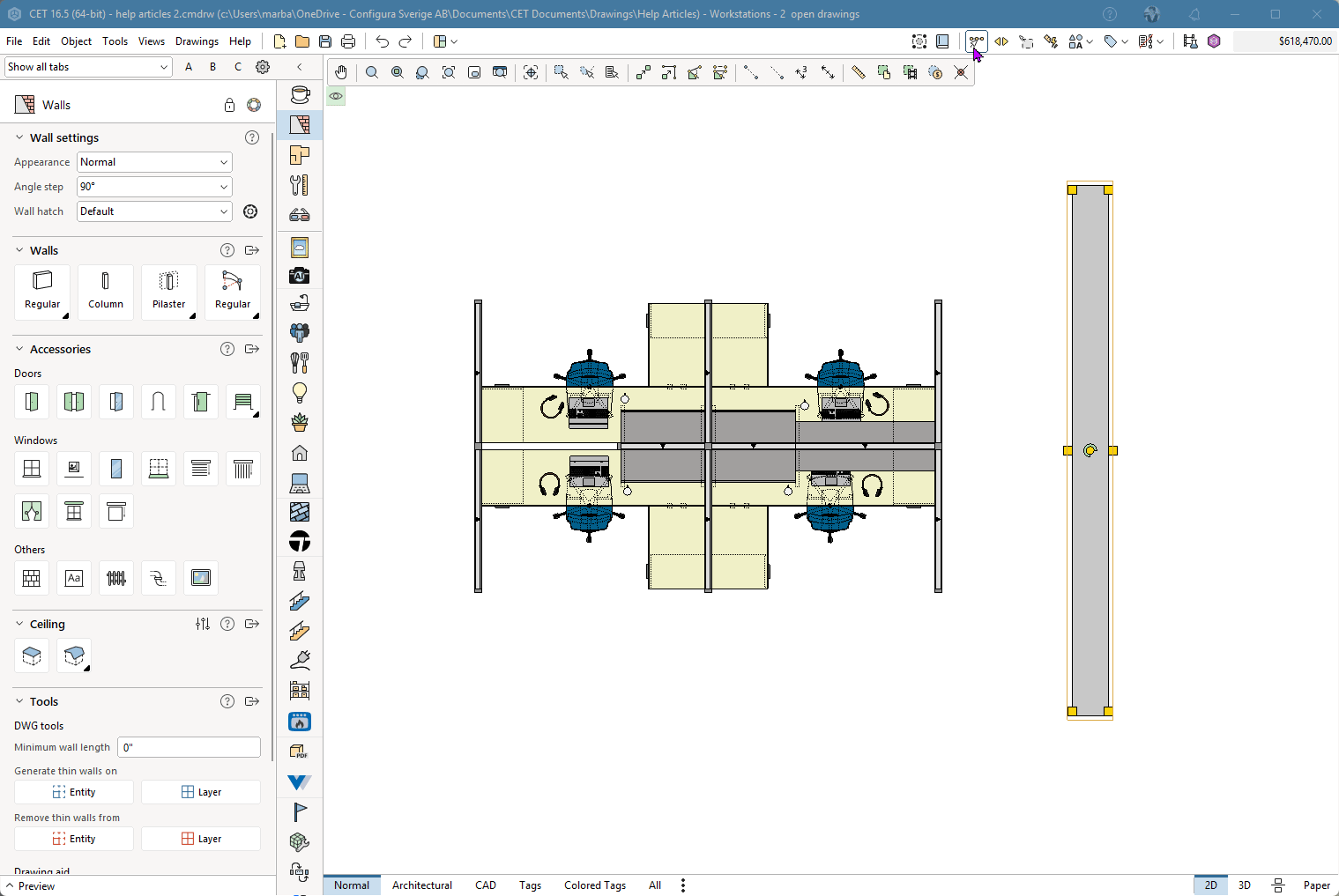

Changing selected object

To change your selected object while using Quick Measure mode, use the Select object button. This action is especially helpful when using the Set distance function, allowing you to quickly change which object will move.
