Elevation

The Elevation tool will create an elevation based on the

To add an Elevation to your project, follow these steps:

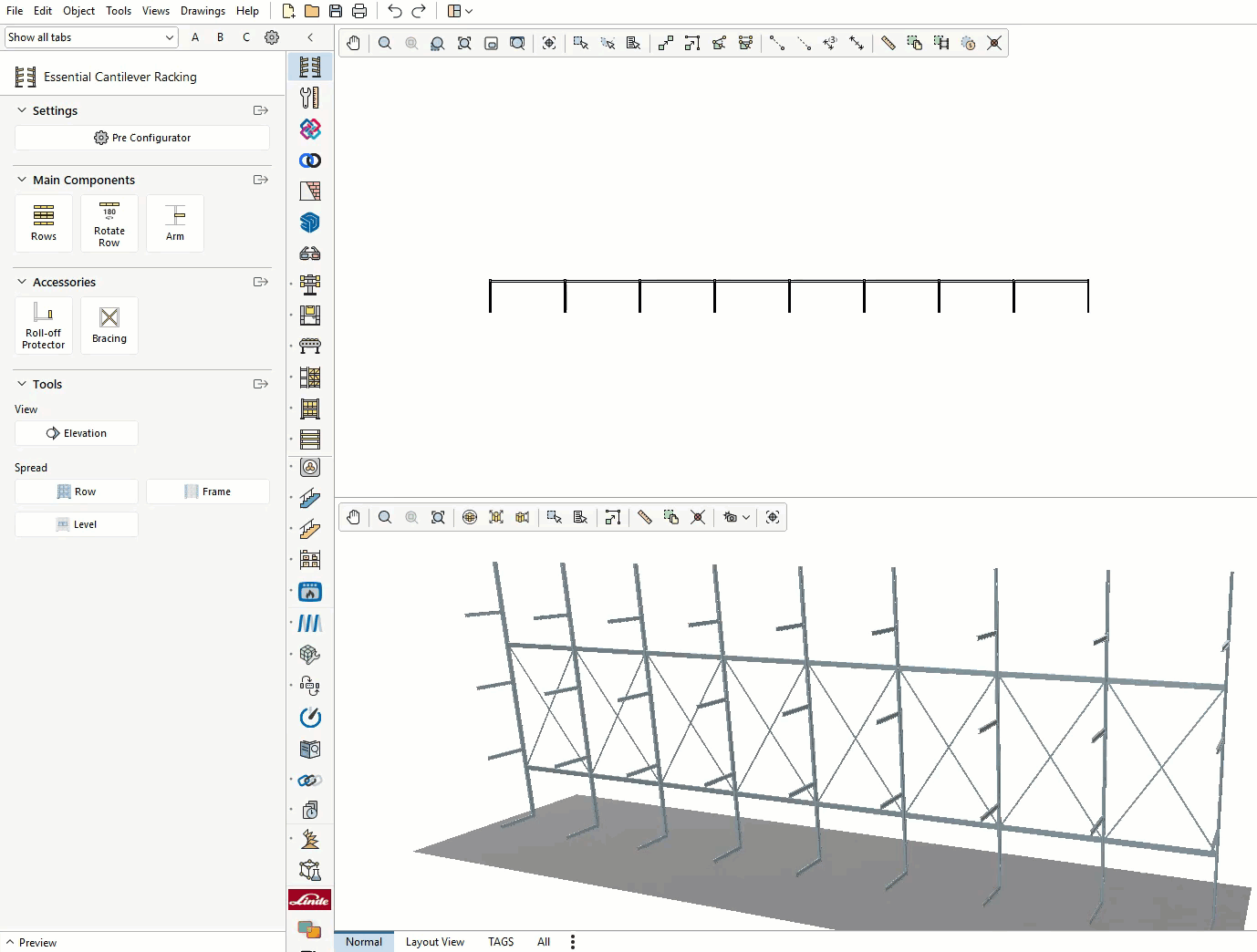

1. Click the Elevation button in the Tools component
2. Locate the product for the elevation view
3. Click next to the product in 2D to activate the selection box
4. Use the selection box to capture the side/angle of product
5. Make sure the arrow is pointing in the direction you want the elevation view
6. Double click the elevation arrow to view
7. Use the Elevation View window to markup, add dimensions, and print

Elevation Views

The Elevation Views window will display all your elevation views and allows you to rename, markup, add dimensions, and print.

1. The elevation views in your drawing are listed here. Click the pencil to rename the view.
2. The elevation view will display in this area.
3. The elevation view can be edited with the tools in this tool bar.
