Cantilever racking accessories are an essential part of planning and managing racking systems.

Adding Accessories

Review this table to get a clear and simple summary of the Protectors and their respective functions.

Icon	Name	Function
	Roll-off Protector	Adds a vertical post to the end of an arm to prevent product from rolling off the arms
	Bracing	Adds protection to the outer frame legs exposed to intersecting aisles

To apply an accessory to your project, follow these steps:

1. Click the type of accessory you want to use
2. Hover the cursor over the area to be applied
3. Review the Quick Property Box
   • If needed, specify additional information
4. Click on the object to apply the accessory

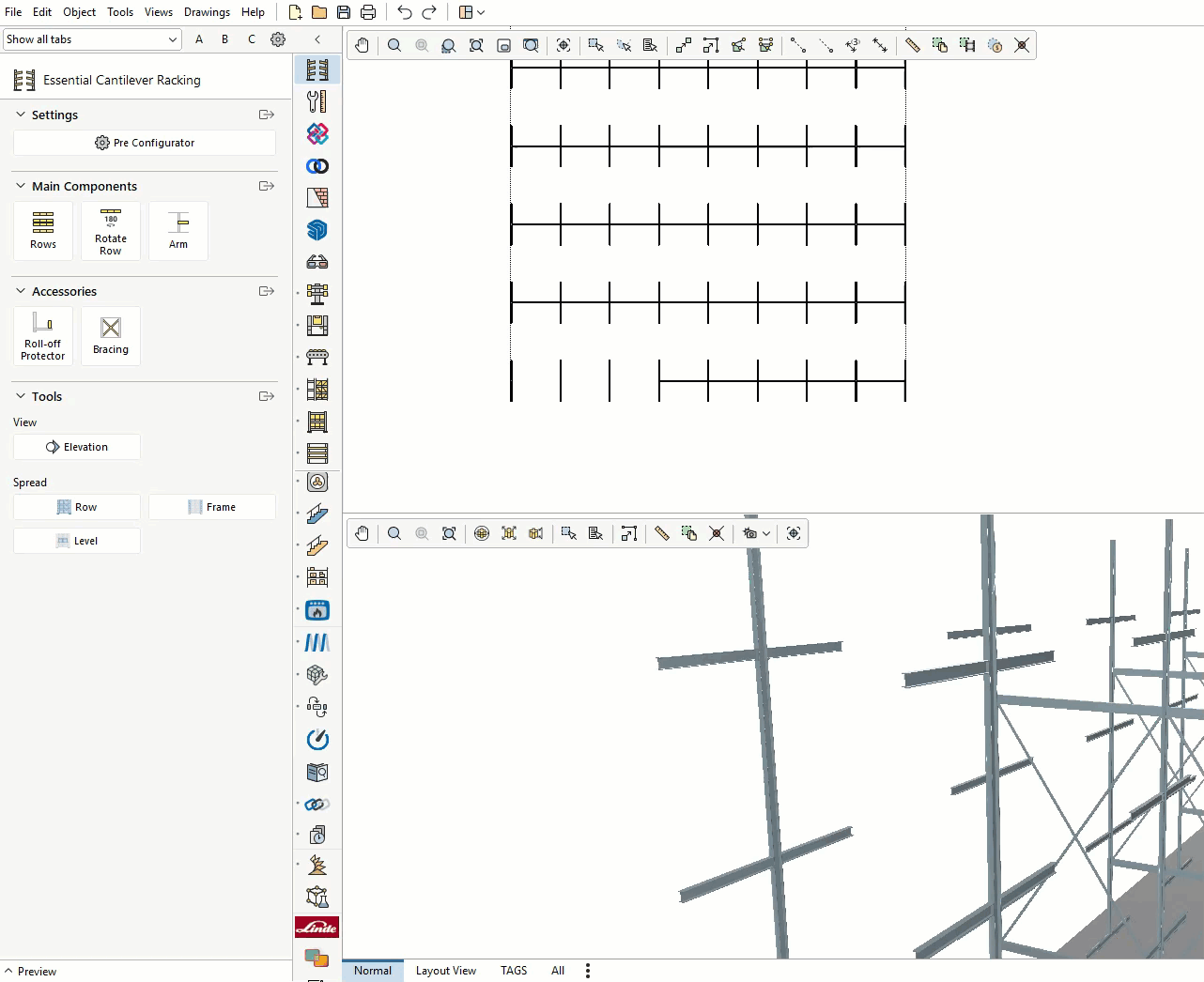

Easily specify and add accessories to your project with Accessories

When applying Bracing, use the Allow Replace option in the quick properties to remove the existing bracing while placing the new.

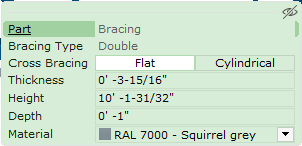

Quick Property Box

The Quick Property Box is an important tool that allows you to specify additional details. This can be done while actively applying protectors or after by clicking on the object in the drawing. In addition, the Quick Property Box can be used to apply multiple protectors at a time.

• Use Spread to efficiently update more than one area in a rack.
