Review this article as a starting point to learn more about the Essential Cantilever Racking Extension.

Preview of CET Material Handling and the Essential Cantilever Racking Extension interface

Installing and the Component Tab

Look for the Essential Cantilever Racking component tab towards the left side of the screen. The tab is identified as a black and yellow cantilever racking frame.

• Click on the tab to preview the Extension's view modes and component sections.

Component Sections

Settings

Before you start, take some time to review your project requirements to pre-determine what product you will need.

How is it used?

• Pre Configurator is used to pre-determine the components and properties of the racks.

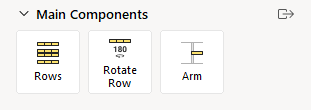

Main Components

Cantilever racking systems can be created and edited in your drawing with these tools.

Check out this easy-to-read table that lists the Main Components and their functions.

Icon	Name	Function
	Row	Use to add rows and aisles based on the selected Pre Configuration
	Rotate Row	Use to rotate a specific/selected row 180°
	Arm	Use to add an arm to an existing upright

Tools

Use these the elevation tool to provide clarity and organization to your project.

Check out this easy-to-read table that lists the Tools and their functions.

Icon	Name	Function
	Elevation	Creates an elevation view that can be edited/printed

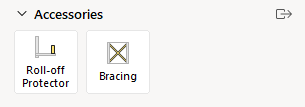

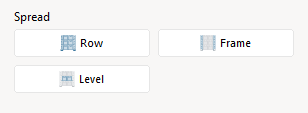

Spread Tools

Copy and paste settings from one structure type to another.

Check out this easy-to-read table that lists the Spread Tools and their functions.

Icon	Name	Function
	Pick-up Row	Use to copy and paste (replace) the settings from one entire rack/row to another
	Pick-up Frame	Use to copy and paste (replace) the settings from one frame to another
	Pick-up Level	Use to copy and paste (replace) the settings from one level to another

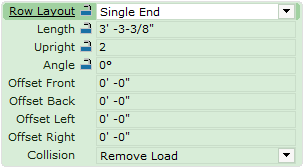

Quick Property Box

The green Quick Property box provides a fast and effective way of changing products as you work. This box will appear once you select a tool from the Essential Deep Racking Extension and click on your drawing, or when clicking on existing objects in your drawing.
