Summary

If a catalog appears as Installed in Notify but is not available in CET or Spec, it may not have been activated in the application's Catalog Manager.

Symptom

• The catalog appears as Installed in Notify.
• The catalog cannot be found in CET or Spec.
• Symbols or products from the catalog are unavailable.

Solution

Catalogs installed through Notify are not automatically activated in Catalog Manager.

To activate the catalog:

1. Open Catalog Manager in CET or Spec.

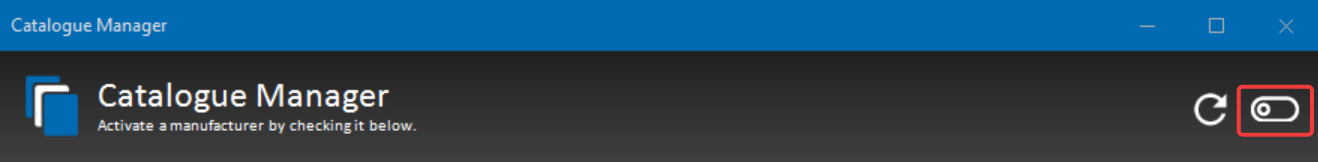

2. Ensure Simple View is enabled (it should appear as shown below):

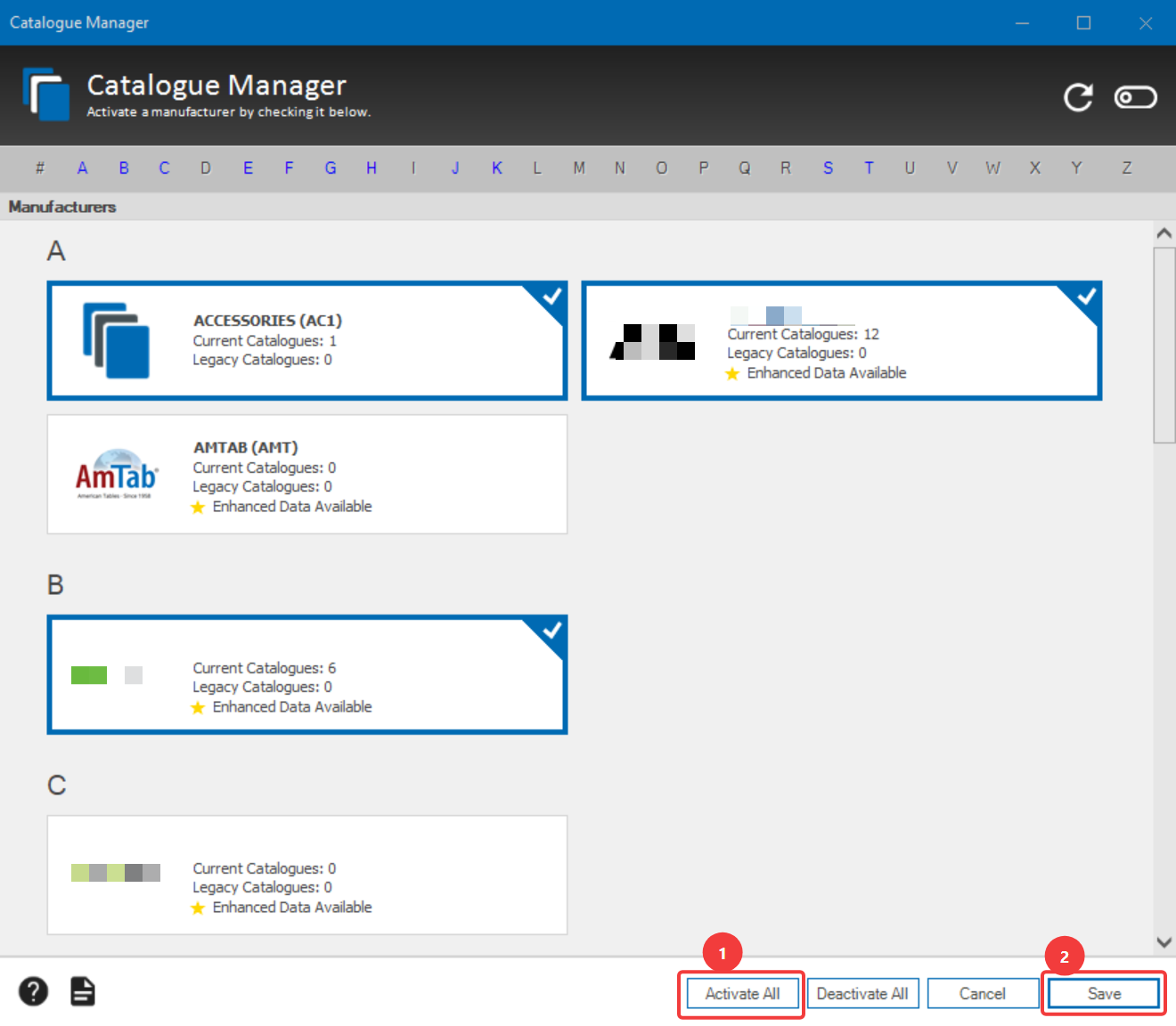

3. Select Activate All at the bottom of the dialog

4. Select Save to apply the changes and close the dialog.



   Once activated, the catalog should be available under Catalog Reader or Catalog Search in CET or Spec.

Still Having Issues?

If none of the suggestions above resolve the issue, please don't hesitate to contact Configura Support.
