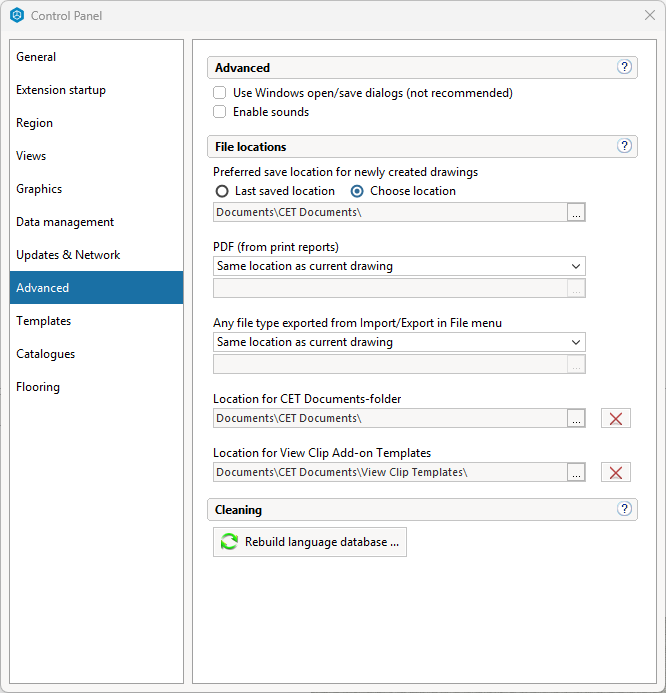

On the Advanced tab, you can set up background behavior and additional features in CET.

Advanced

• Use Windows open/save dialogs (not recommended): You can choose to use the Windows open/save dialogs instead of CET’s own.

  Selecting this option may cause some functionality loss, e.g. the ability to view the drawings as thumbnails, and is therefore not recommended.
• Enable sounds: Play sounds integrated in CET while placing and adjusting objects in CET.

File locations

• Save location for new drawings and PDF/CAD files
  You can specify default file locations for new drawings, as well as exported PDF or CAD files from CET. There are different setting areas depending on the file format, as explained below.



  1. Save location for new drawings
  To set a default file location to save new drawings, select either one of the following under the Save location for new drawings setting area :

  • Last saved location - To save files to the previously saved file location.
  • Choose location - To save files to a new folder location. Click on the three-dotted icon at the column underneath it to open up the folder directory, and specify a new folder location.



2. Save location for PDF / CAD files

To set a default file location to save PDF files, select either one of the following under the PDF (from print reports) setting area:

• • Same location - To save the file in the same location where the current drawing has been saved.
  • Last export location - To save files to the previously exported file location.
  • Choose location - To save files to a new folder location. Click on the three-dotted icon at the column underneath it to open up the folder directory, and specify a new folder location.

To set a default save location for CAD files (or any other format created from the CET Import/Export features), follow the same step as the above under Any file type exported from Import/Export in File Menu setting area.

• Setting a location for CET Documents folder and View Clip Add-on Templates

  CET Documents folder and View Clip Add-on Templates location can also be set manually by clicking on the three-dotted icons, and select the file location, under the Location for CET Documents folder and Location for View Clip Add-on Templates setting areas, respectively.



Cleaning

• Rebuild language database: Click this option if you have a problem with mixed languages on buttons or in dialog box, or if you see $, %, or other symbols in texts.
• Remove old backup files: Removes auto-backup files and auto-save files to allow more room on your computer.
