Step 3: Add 2D & 3D File Names → 2D, 3D

The third step is to add ONLY the names of the 2D and 3D DWG files for each given Part Number.  PLEASE NOTE: The 2D DWG files and names are NOT Required if you wish to have Configura automatically create them from the supplied 3d DWG files.
DO NOT ADD THE EXTENSIONS.

• For example, if the extension is "PL24_2D.dwg", only enter "PL24_2D" into the appropriate column.

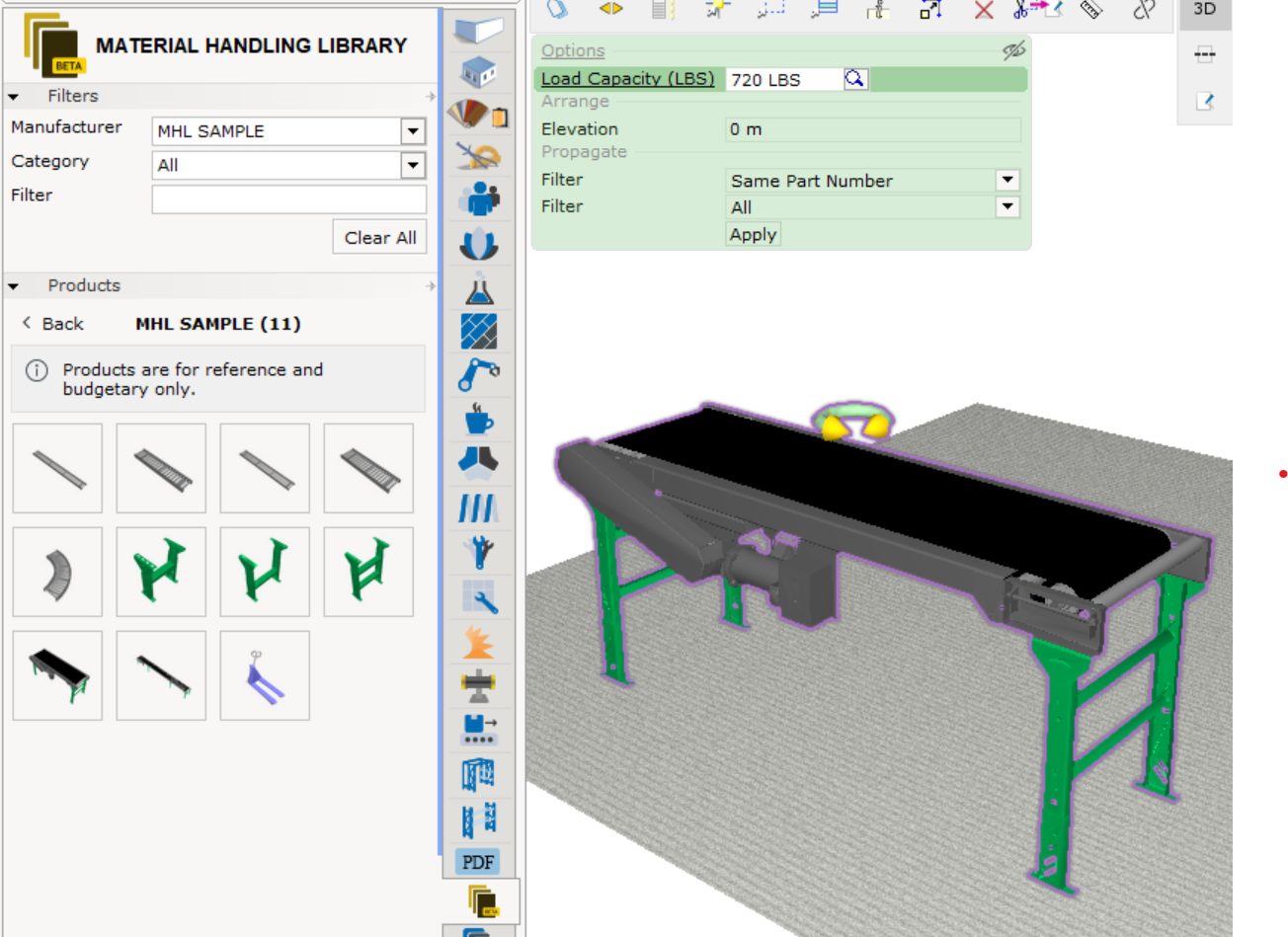

The 2D and 3D columns work together with the G0-G6*, PO, and SO columns to display the graphics inside CET. Check out our 2D/3D DWG File articles for more information!

* Additional G columns may be added depending on the product options.
