Step 4: Adding Options

Step 4: Add Options → PO, OG, ON, OD, TO, O1-O3, SO & G0-G6

The fourth step involves adding the option details and linking the orderable options to each part number.

G0-G6* columns are located in the SAM tab.

* Additional G columns may be added depending on the product options. 

PO, OG, ON, OD, TO, O1-O3, and SO columns are found in the OPTIONS tab.

Here is a quick glossary reminder for the codes in this step:

Code	Name	Definition
G0-G6*	Options	Numbers represent the option sequences Points to the PO column in the Options tab
PO*	Option Table Name	References the G0-G9 columns in the SAM tab • Codes must match exactly No duplicates allowed; one value per Option Group Example: PNT
OG	Option Group Description	Brief description of the Option Table Example: Paint Grade Will prompt the user with this description • "Please select a Paint Grade."
ON	Option Number/Code	Associates a number or code to the option Example: GR-1
OD	Option Code Description	Brief description of the Option Number/Code Example: Grade 1
O1-O6	Option Price	Up or down charge associated with the ON option Up to (6) are allowed
SO	Sub-Option	Used to point to another Option Table (PO) Allows options to branch to other options

* G0-G6 and PO are not user-facing values

Understanding the G Columns and OPTIONS Tab

The G* columns represent a selection of options for a Part Number (PN). They are numerically sequenced so G0 comes first, then G1, G2, etc.

* Additional G columns may be added depending on the product options. 

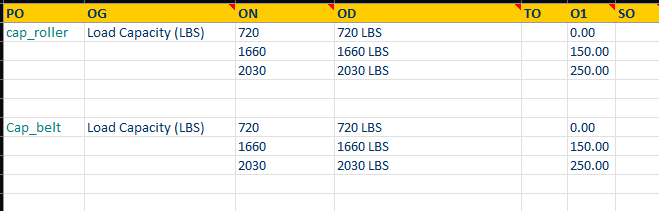

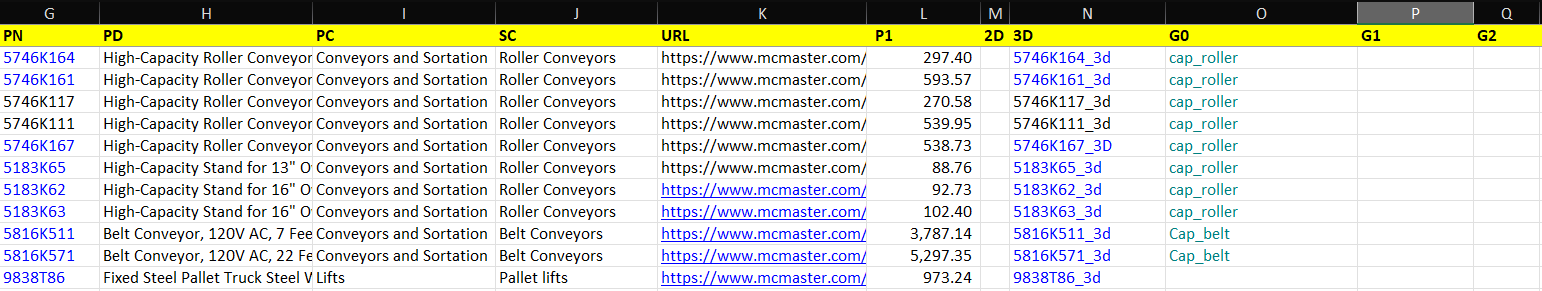

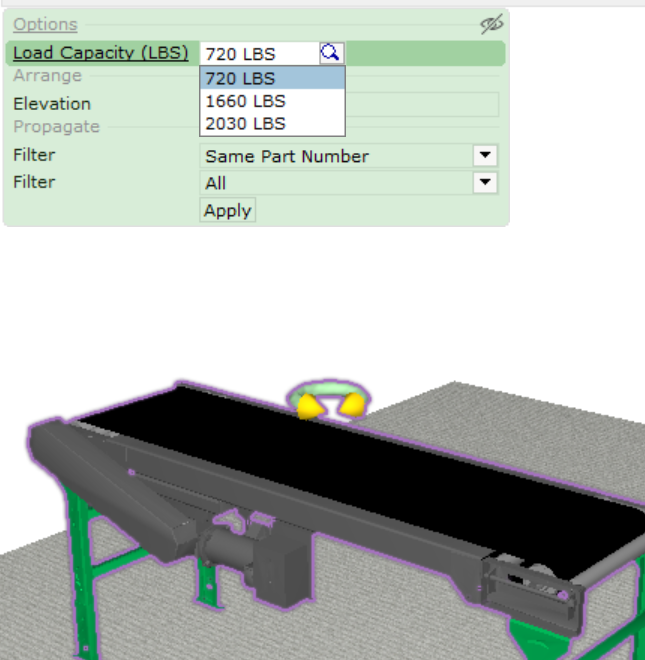

These images are examples of how the options are linked.
