Introduction

Constraint Table Workflow

Excel Format

Feature Code = Correspond to the Feature in Creator.

Option Code = List of Option code and combination of allowed options.

Table Code = The Sheet name will be imported as Table code in Constraint Table.

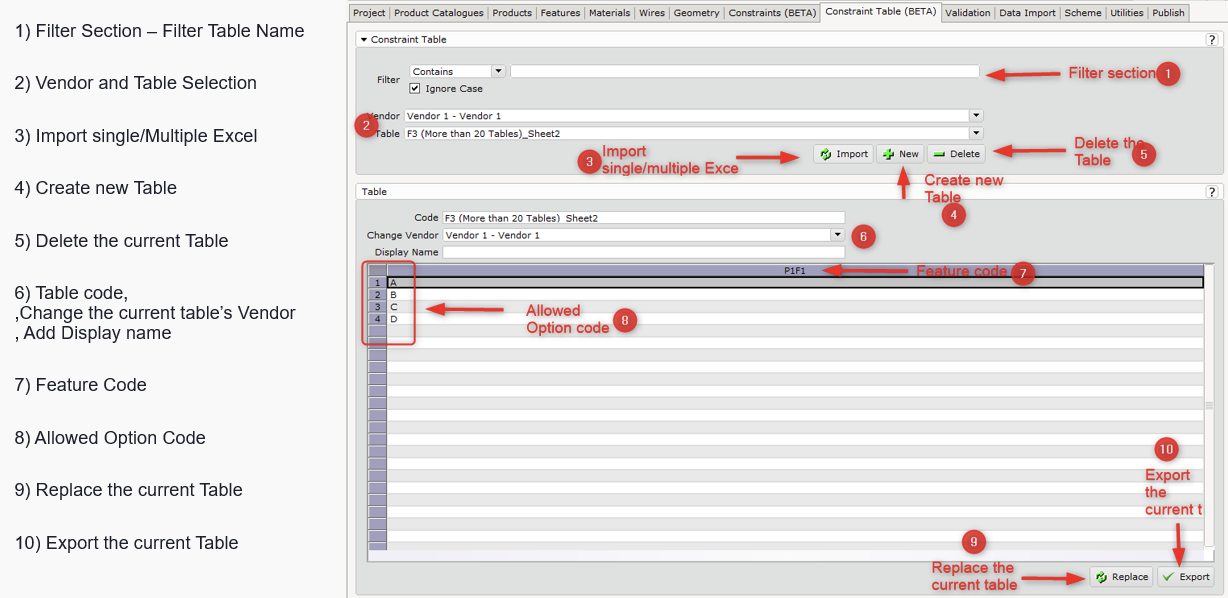

Step 1:

Go to Constraints Table(BETA) card

Step 2:

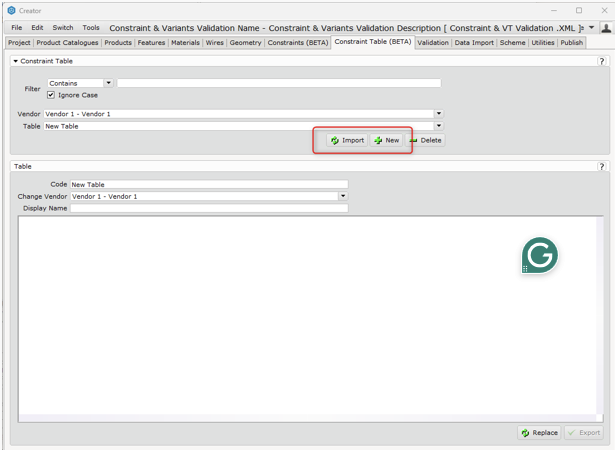

Create New Table first or directly import from Excel sheet.

Step 3:

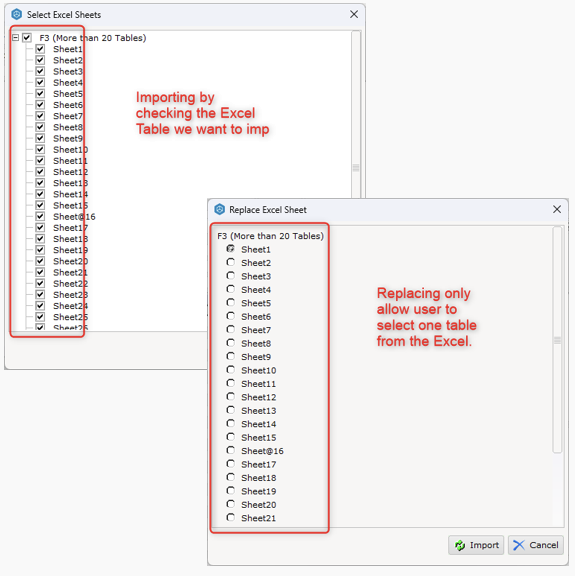

Importing from Table(s) or replacing Table

Drag and drop Excel to Constraint Table(beta) is also supported and will treat as Importing function.

Step 4:

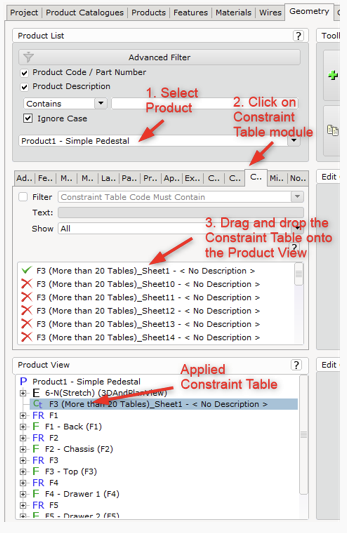

Go to Geometry card, select any product via the Product List drop down

Click on the Constraints Table module tab, drag and drop created Constraints Table to the Product view

You have now successfully assigned the Constraints Table to the product

• Users are allowed to use multiple Constraints, multiple Constraint Table, and combining Constraints and Constraint Table together in a single product
• In case of conflicting Constraints and/or Constraint Table, the whole options will become unavailable for that features.


Example:

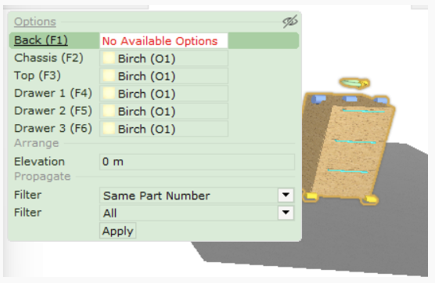

The user assigning 2 constraints which are conflicting

Expression 1: F1.code = “O2”

Expression 2: F1.code = “O1”
