1. Creating a new project in catalogue creator
2. Opening Existing catalogue without prior constraints usage in catalogue creator
3. Opting-out from using Constraints

Creating a new project in catalogue creator

Step 1

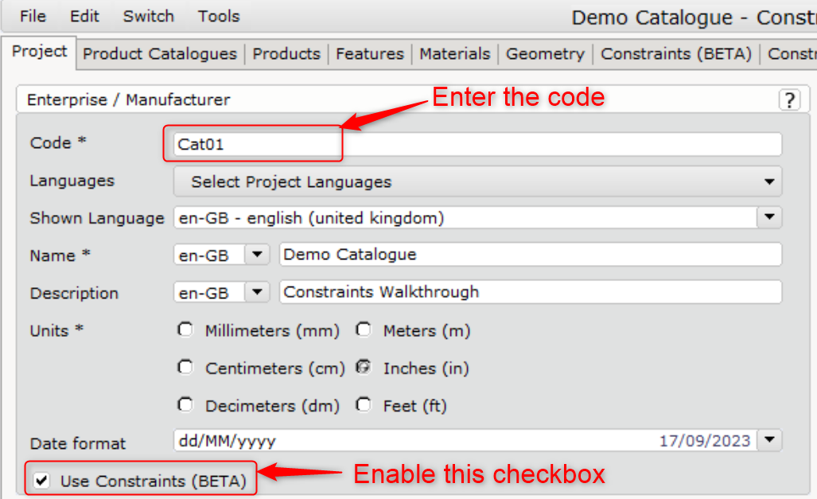

Open Catalogue Creator and then enter the Enterprise/Manufacturer code first in the Project card

Step 2

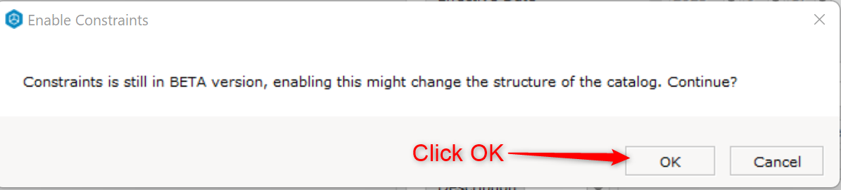

Enable the Use Constraints (BETA) checkbox. Click the OK button on the message dialog.

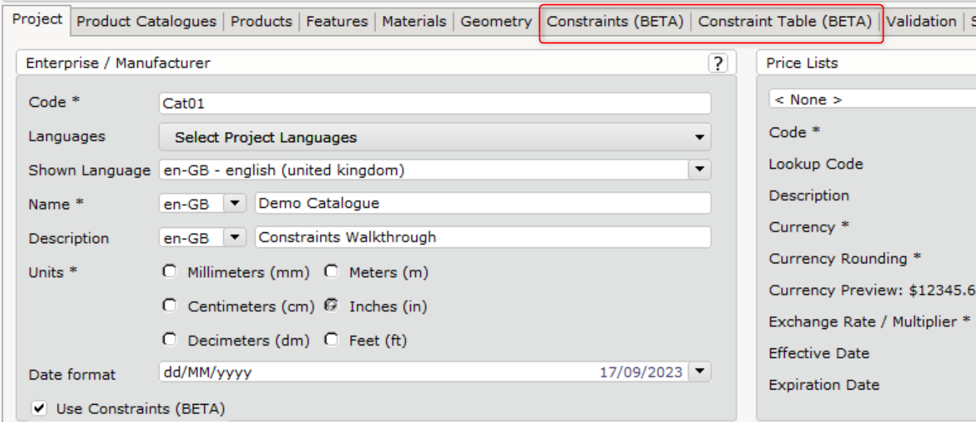

Catalogue Creator will now show the Constraints (BETA) and Constraint Table (BETA) cards

Opening existing catalogue without prior Constraints usage in Catalogue Creator

Step 1:

Open Catalogue Creator and then load the project

Step 2:

Enable the Use Constraints (BETA) checkbox. Click the OK button on the message dialog.

Catalogue Creator will now show the Constraints (BETA) and Constraint Table (BETA) cards

Step 3:

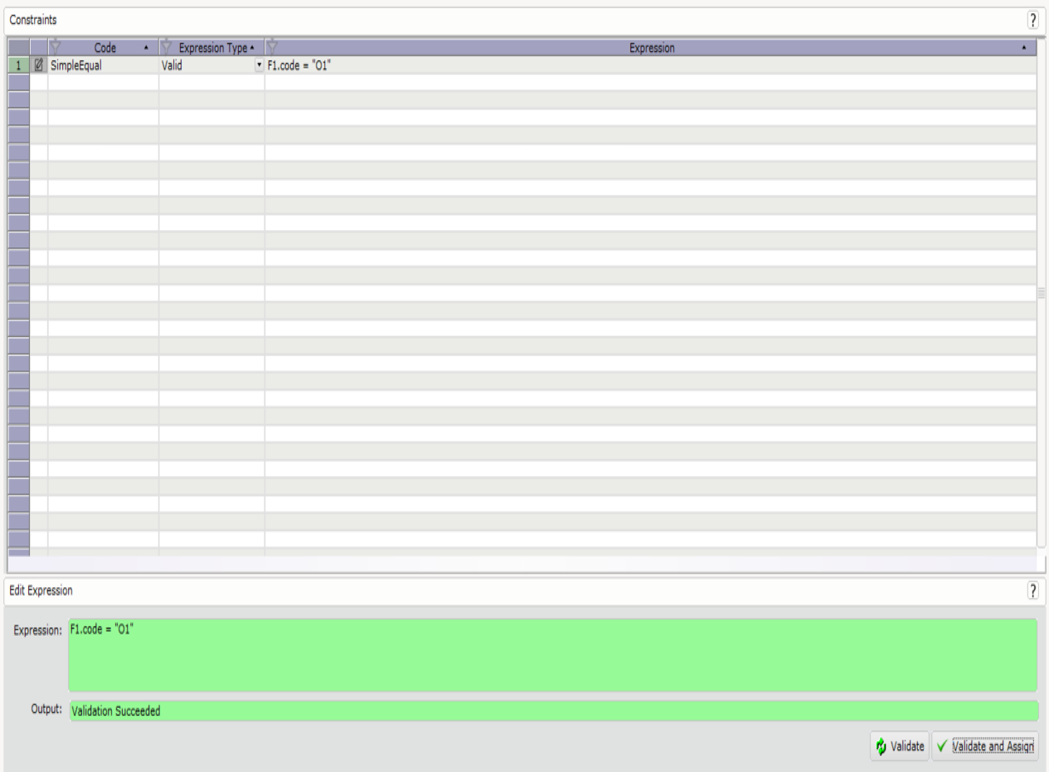

Go to Constraints (BETA) card and double click on any Code cell. Enter the Constraints code.

Step 4:

Enter the Constraints .Expression in the Expression text field.

Step 5:

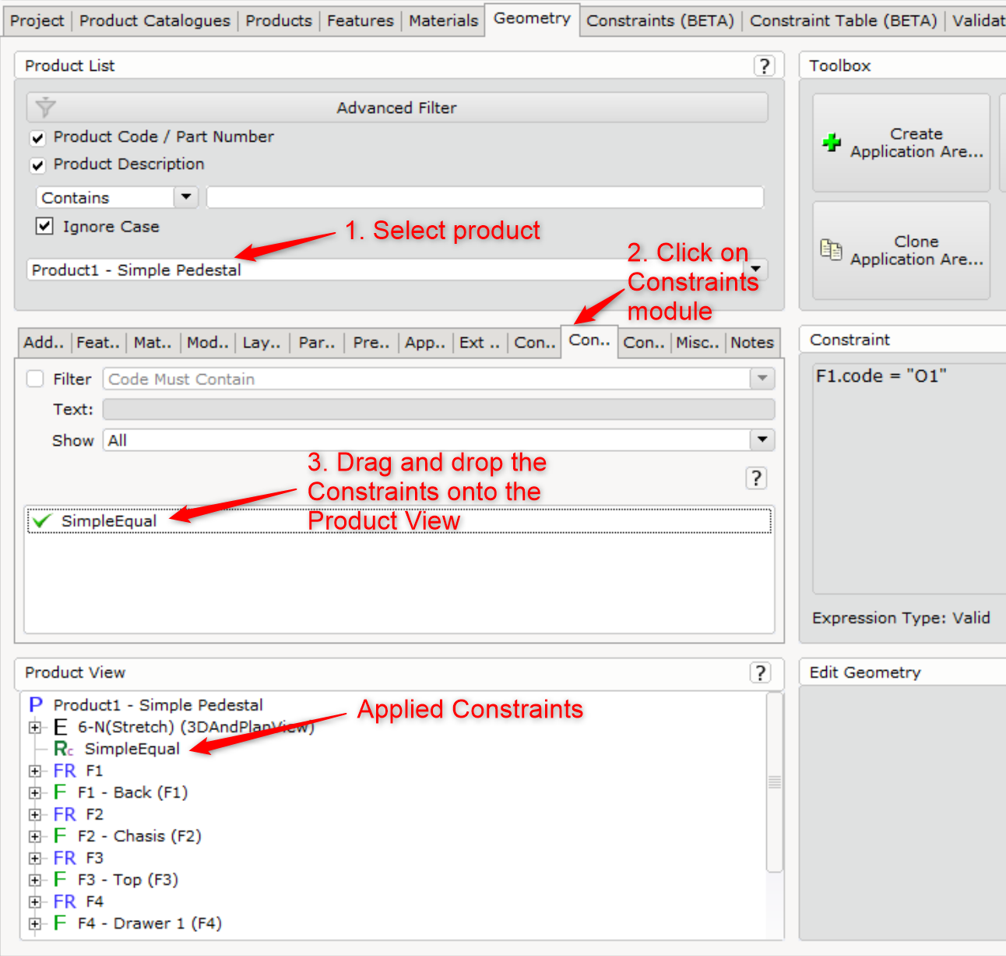

Go to Geometry card, select any product via the Product List drop down

Click on the Constraints module tab, drag and drop created Constraints to the Product view

You have now successfully assigned the Constraints to the product

Step 5 (alternative):

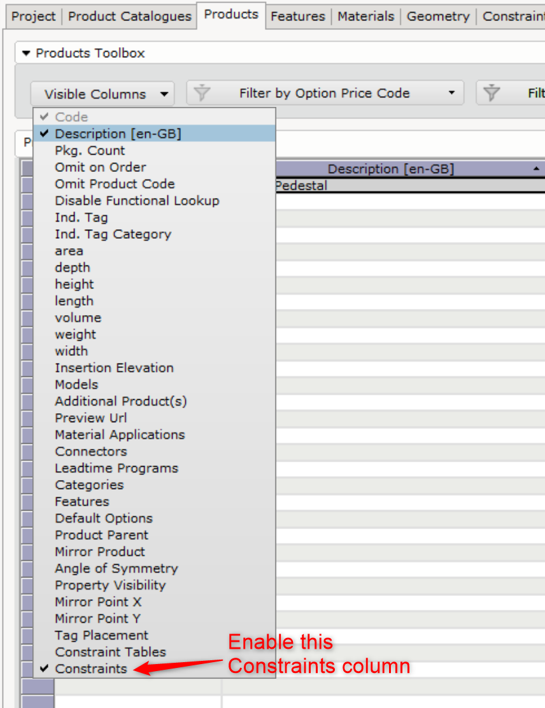

Go to Products card, enable Constraints from the Visible Column drop down

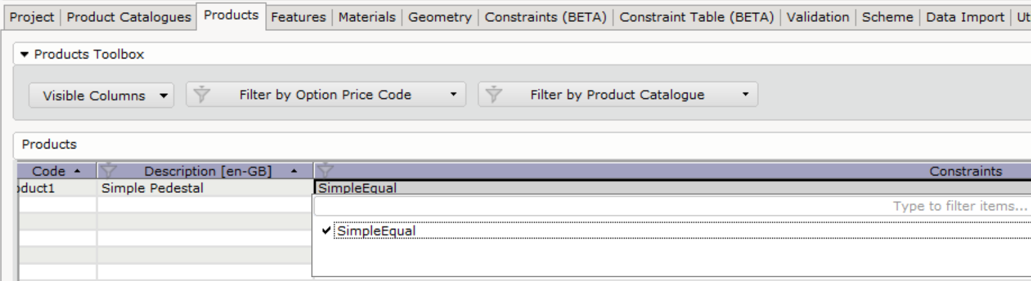

Click the Constraints drop down and select the Constraint you want to apply to the product.

You have now successfully added the Constraints to the product

Opting-out from using Constraints

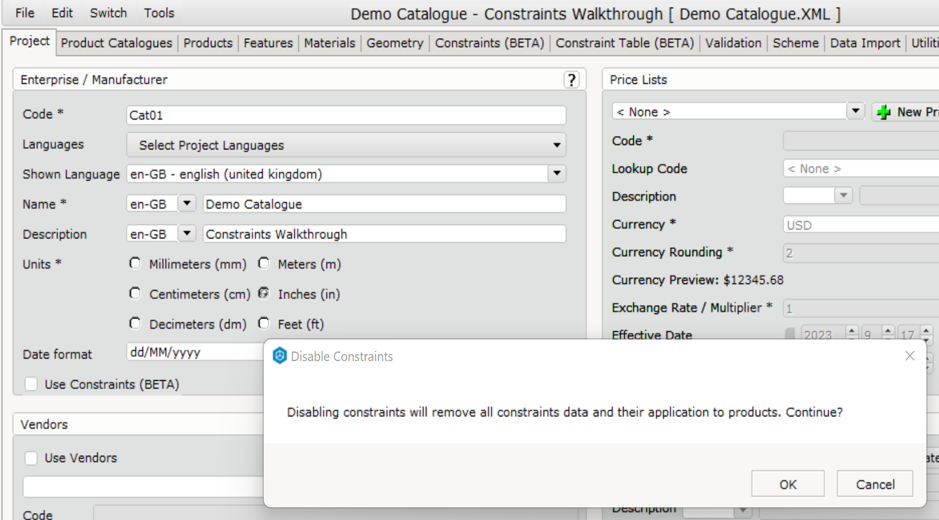

If users want to opt-out from using Constraints,  they can do it by unchecking the Use Constraints (BETA) checkbox in the Project card
