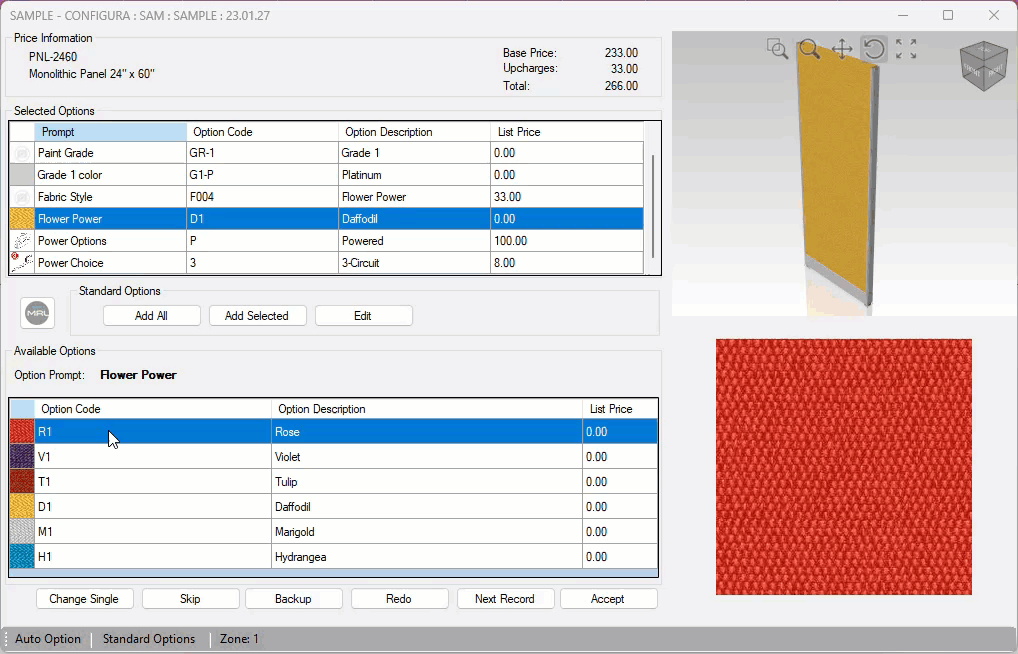

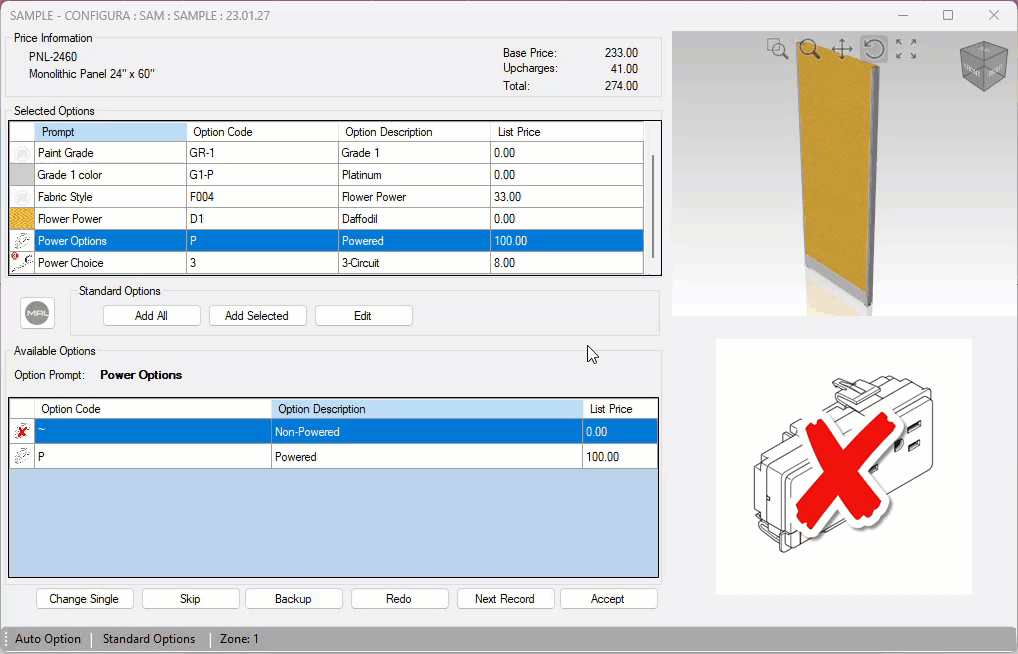

- A swatch image is displayed as a thumbnail to the left of the Available Options section.
- A larger swatch image is displayed in the bottom right corner under the Part Preview.
How To Add Material Swatches
| Code | Name | Definition |
| ON_IM | Option Based Image | Small JPG used to display a graphical option such as grommet, handle, pull, foot type, edge style, etc. |
| ON_MAT | Option Based Material | Small JPG or PNG used to show material such as an option swatch |
Step 1: Create a Folder with Image Files
You will need to provide a folder of all the images and material files to be referenced in the spreadsheet. We recommend naming these folders "ON_IM" and "ON_MAT".
The ON_IM and ON_MAT columns need to have different names for the swatch image to show up. Otherwise, the swatch will pull from the ON_MAT column, overwriting the ON_IM column.
Transparency can be added to the PNG files submitted for Material Mapping.

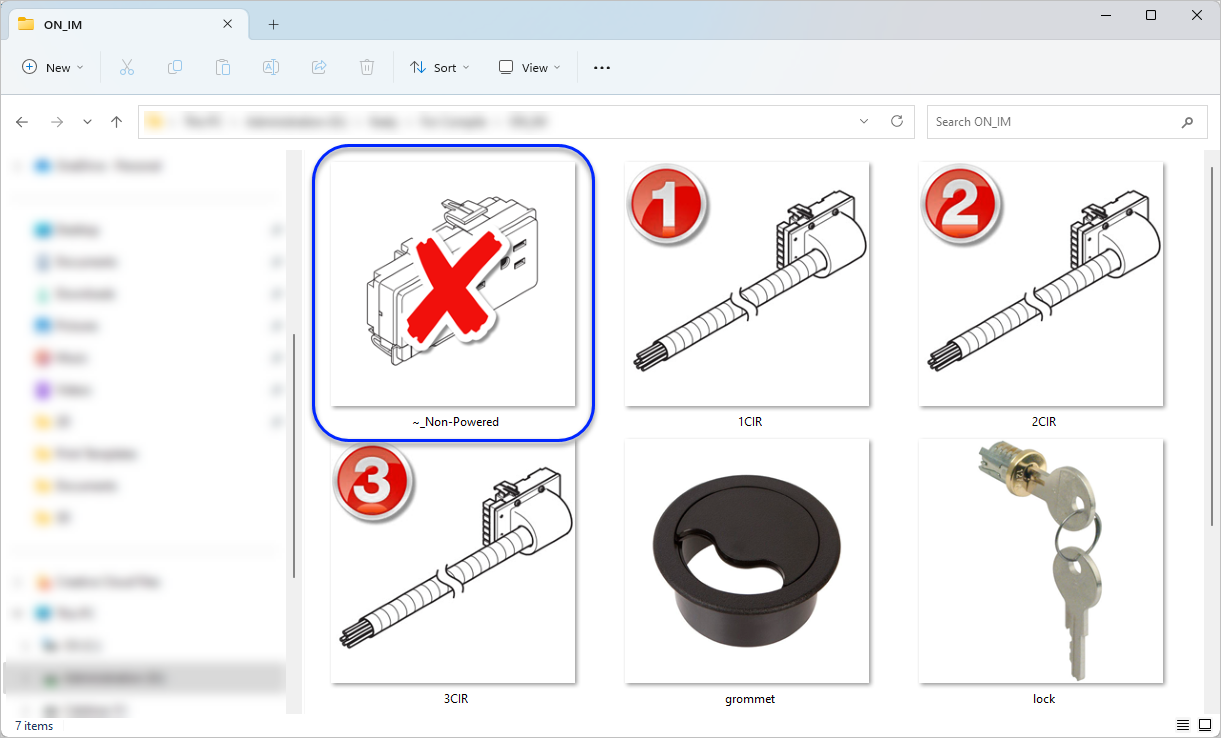

Example 1: ON_IM Images
If you are not submitting layer information (ON_MAT), the file names should be added to the ON_IM column so they can exist as a swatch preview.
Example 2: ON_MAT Images
Step 2: Add Image Names to Spreadsheet
Fill in the EXACT option image file names to the ON_IM and ON_MAT column in the spreadsheet.
Example 1: ON_IM Images

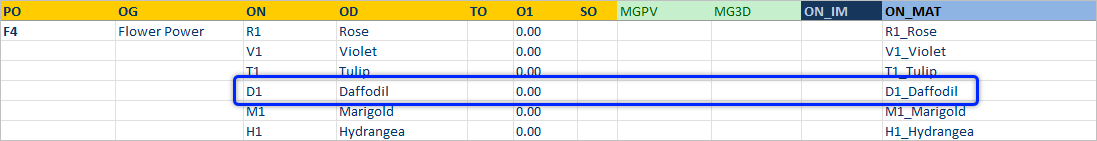

Example 2: ON_MAT Images
Step 3: Submit Image Folders
Please submit the completed ON_IM and ON_MAT folders to data@configura.com for review and publication testing. We'll notify you of any updates or changes required.
