On the Drawing Settings tab you can select the option to Use Part Number in place of Ind. Tag in 2D/3D views.
This is unchecked by default and drawing views and View Modes that display Ind. Tags will show the tag text as assigned by the extension creator.

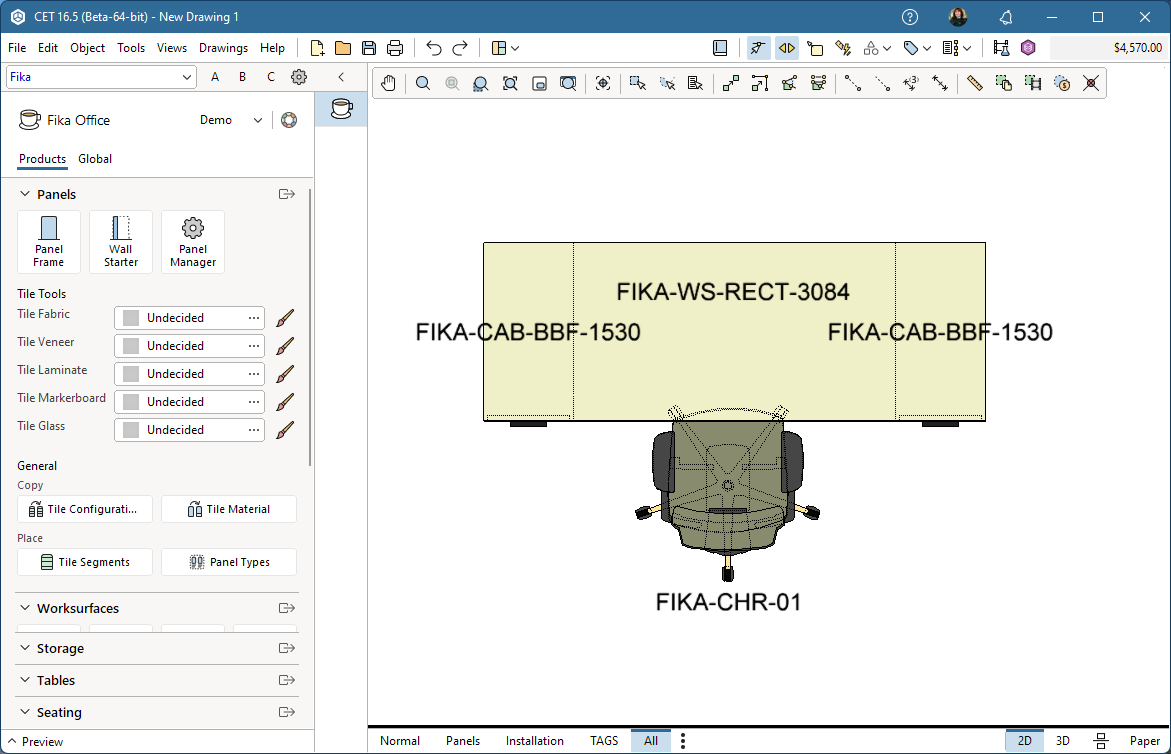

When the option is checked, the tag will display the Part Number instead.
This does not affect how the Ind. Tag is displayed in the Calculations dialog. The Ind. Tag column in Calculations will always display the tag text as assigned by the extension creator.
This does not affect how the Ind. Tag is exported to SIF, XML, or PMX formats. The exported items will maintain the Ind. Tag text as assigned by the extension creator.
