CET 16.5 Major: November 17, 2025
All Editions
News & Changes
General Usability Updates
- CET now alerts users when attempting to close the application while a background install is in progress
- As previously communicated, the ‘Email Drawing’ feature under the Help menu has now been removed. We encourage users to use the ‘Send Feedback’ option for bug reports and feature requests, and send drawings via their own email client for better formatting and attachment support.
Smarter Drawing Interactions

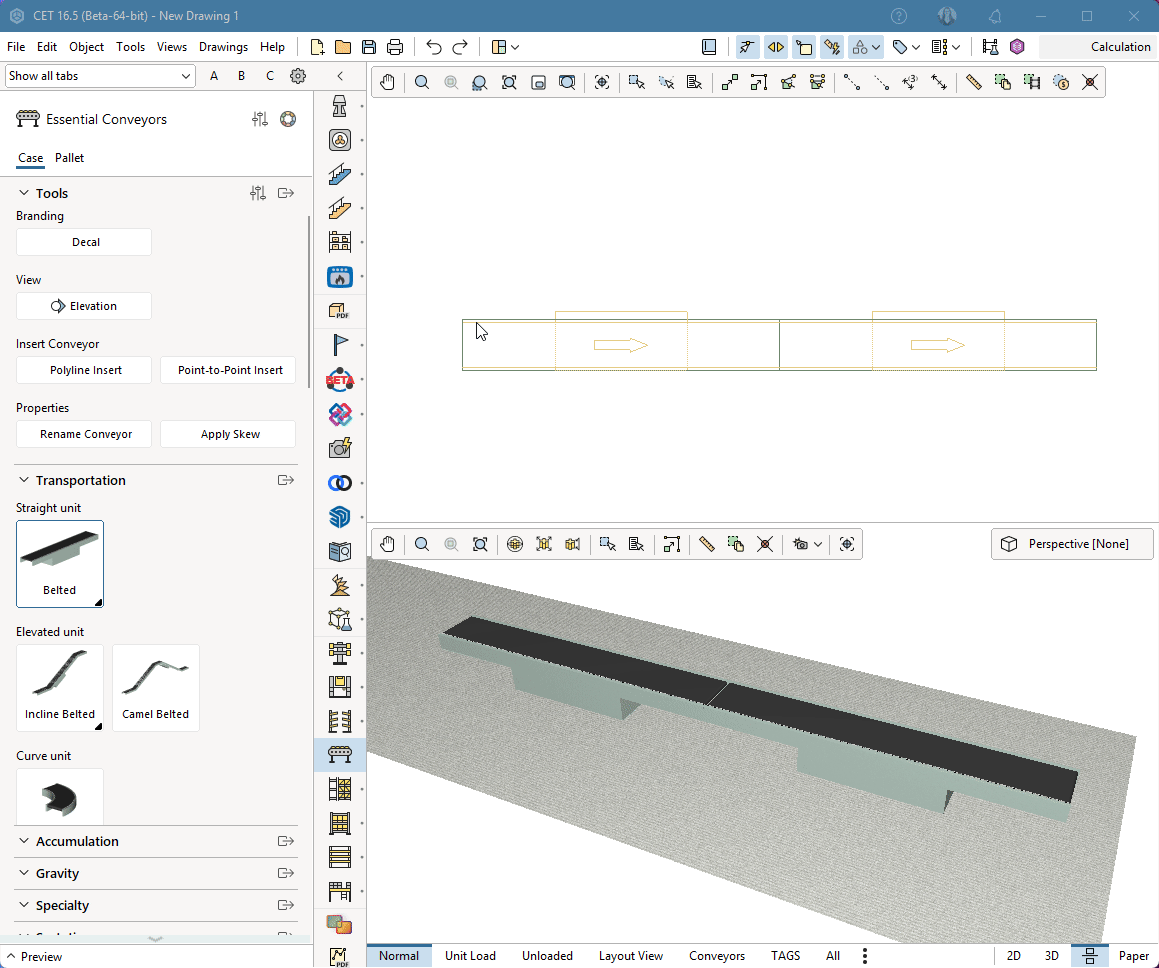

- Objects you are about to select will now be highlighted when holding your mouse over them. This is enabled by default but can be disabled in Control Panel → Views → Highlight component under cursor.

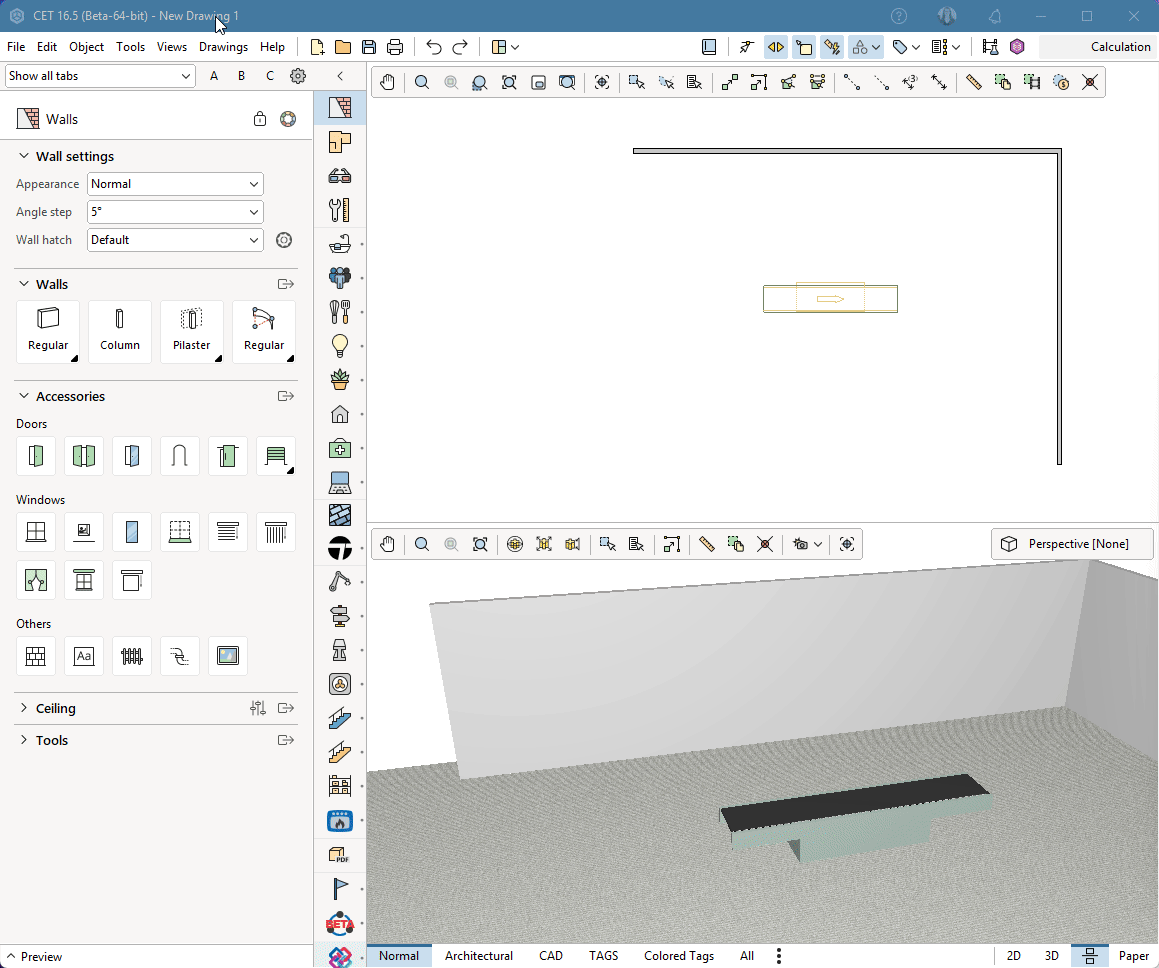

- Symbols that are within a selection but not visible in the active View Mode will now be displayed as transparent shapes, letting you see edits you perform to them. This behavior is now the default, but can be disabled in Control Panel → Views → Show hidden components in selection.
Enhancements to Calculations
- Introduced a new 'Lead Time' column in the Calculations dialog, which auto-fills from manufacturer catalogs or can be defined by the Extension.
- Improved Excel export from Calculations with enhanced data formatting, support for project details, cell highlighting, and preview images.
Control Panel & Settings Options
- Added a new ‘Control Panel’ setting to toggle install text display in drawings between part numbers and Ind. Tag data, without affecting values in ‘Calculations’ or exports (SIF, XML, PMX).
Please note that this is not applicable to the Kitchen & Bath Edition of CET.
Categorization Tools and Part Tagging

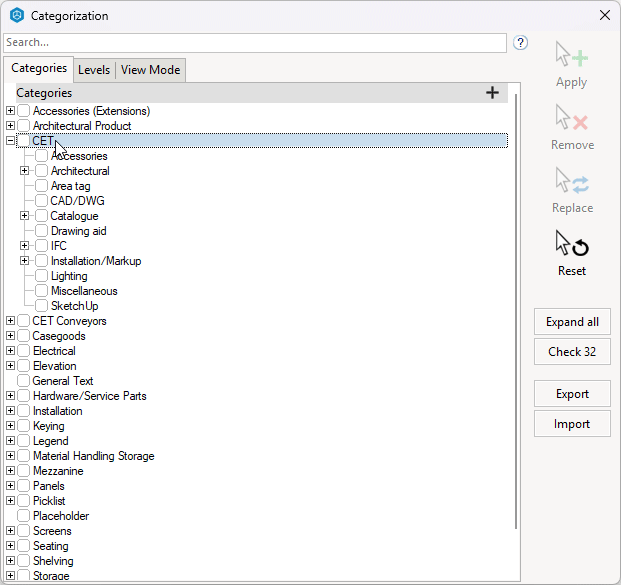

- Added an uncheck button to the Categorization dialog that unchecks the selected category and all of its subcategories, making it faster to disable deeply nested items.

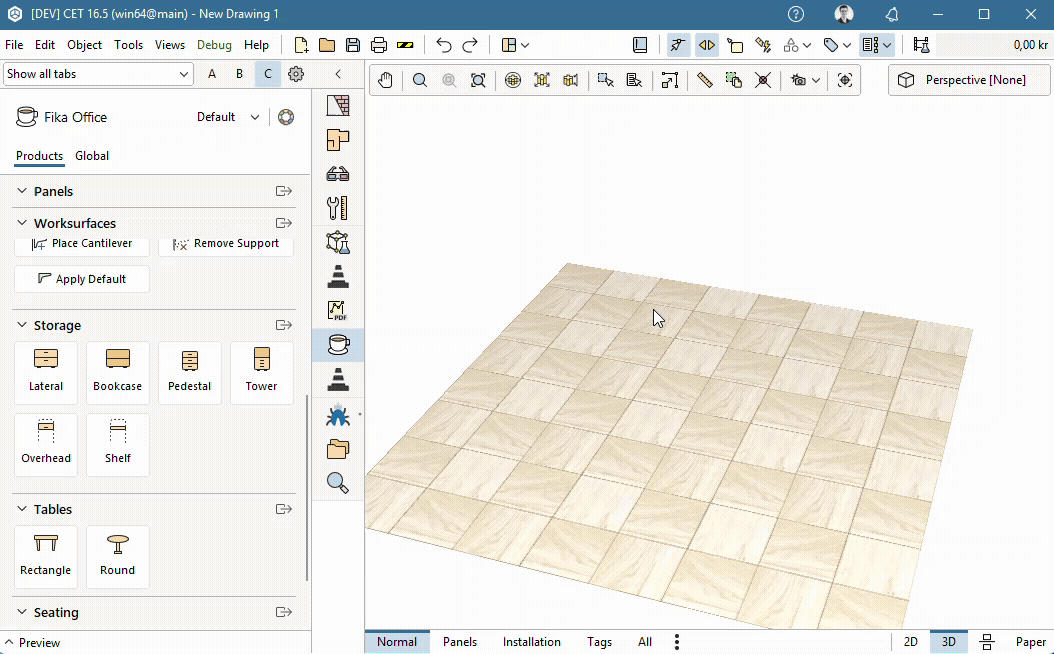

- The ‘Add extra categories on insert’ category preview now has a bright blue background for user-added categories to improve visibility and awareness.
- A 'Sort' button has been added to the 'Part Tagging' dialog that will sort all tags in the selected category in alphanumerical order. It alternates between ascending and descending order.
User Feedback Integration
- Added a popup dialog in CET for users to receive curated surveys and provide feedback.
Improvements
Drawing Tools & Visual Aids
Updated the tooltips for 2D Lines in the Drawing Tools to clarify the difference between grouped lines that stay connected and those that do not.
The Ruler tool used in the 3D view has been improved to be readable from a top-down view and now measures without depth when using side views in Orthographic 3D view.
Dimensions displaying imperial units with fractions will now always show a denominator that is a power of 2, improving readability and consistency, including in older drawings.
CAD & DWG Handling
- Added a clear (‘X’) button to the search fields in the CAD settings dialog, allowing users to quickly clear the search fields.
- Updated the DWG export dialog to disable the ‘Selection’ filter option when no components are selected in the drawing.
The CAD Settings dialog can now edit the settings and layers of multiple DWGs at the same time by holding SHIFT or CTRL to select them.
The Layers tab in the CAD Settings dialog has been rewritten for significantly improved performance.
Filtering in the CAD Settings dialog is now case-insensitive and supports wildcards (
*).The CAD Settings dialog now includes an Xref tab where you can control which External References to import; all are selected by default.
Added a progress bar when importing large CAD files to better track import progress.
Performance & Stability
Improved performance of CET when there are multiple Extensions and component tabs installed.
Improved the reliability of downloads and synchronization of catalogue resources embedded by CET Extensions.
Crash reporting in CET has been improved by moving report uploads to a separate process, allowing reports to send even if CET crashes. We recommend excluding CETReportUploader.exe from antivirus scanning to avoid upload issues.
UI & Labeling Enhancements
The labels on buttons in the CAD sections of Tools and Paper Tools have been updated for visual consistency.
Improved sorting in the Part Tag dialog so that numbered tags now appear in correct numerical order (e.g., ‘Tag 10’ after ‘Tag 9’).
Changed the French translations of the TAG part tag categories for better consistency.
Renamed the OK button in the Project Info dialog to 'Apply'.
Calculations
Added support for exporting calculation results to Excel for all editions of CET.
Fixes & Enhancements
Fixed issue with selection preview that could cause a crash when the mouse hovered over symbols in an unusual state.
Fixed issue with creating 3D shapes that could lead to a crash.
Fixed issue that could cause a crash when trying to trim/remove the diameter of a hatched circle drawn in 2D.
Fixed issue where using ‘Tag 2’ in Part Tagging either failed or caused a crash.
Fixed problem in the Export Filter dialog for CAD drawings where clicking on a custom view mode would reset the scroll position.
Fixed problem where DWG files could not be reimported after having been turned into a block and subsequently exploded.
Fixed problem where CAD content was not showing properly in print when multiple layers existed in the drawing.
Fixed problem where Article Views would not print to PDF unless ‘Fit Content’ was enabled.
Fixed problem where the ‘Summary’ section was missing in Print Reports when no Ext. Buy/Sell/List column was enabled; the Ext. List column now appears by default on new installations but can still be disabled.
Fixed problem where characters after dot (.) were not included in the file name when printing reports.
Fixed problem where CET did not restart automatically after choosing ‘Update and Restart’.
Fixed problem that prevented CET from updating correctly with newly downloaded catalogue data.
Fixed problem with the cursor jumping unexpectedly in the Text Symbol text editor with the spell check enabled.
Fixed problem where the camera zoom and focus were incorrectly applied when loading a drawing.
Fixed problem with content in the ‘Scheme’ dialog not expanding correctly to fit the full width of the window.
Fixed problem where textures stretched incorrectly on arched walls.
Fixed problem where Custom View Modes appeared to include more categories than they actually did.
Fixed problem where switching between component tabs could leave the view stuck in a view mode not supported by the new component tab.
Fixed problem where undo (Ctrl+Z) would not reselect categories that contained subcategories.
Fixed problem where copying a symbol could unintentionally cause the source to connect to nearby symbols or get new categories.
Fixed problem with some scrollbars in Quick Properties extending unnecessarily when the content was limited.
Fixed problem where data was saved in the Project Info dialog when closing via Cancel or X. Now, data is only saved when pressing OK.
Fixed problem where snip-to-paper 3D Viewclips were zoomed out when rendered.
Fixed problem with the Position Tool icon in Paper View looking different from the same tool in the 2D / 3D views.
Fixed problem with several tools not updating correctly when switching between 2D and 3D views.
Fixed problem where some tools tracked the wrong view when switching between 2D and 3D views.
Fixed problem with the mirror tool not working properly on custom 3D shapes.
Fixed problem where the angle property had no effect when using ‘Mirror across a line’.
Fixed problem where the Measure tool would sometimes show an incorrect bound when hovering over a symbol.
Fixed problem with chain and normal dimensions in new drawings not maintaining equal spacing between the dimension line and text.
Fixed problem where the ‘Insert Wall on Edge’ tool forgot settings between placements.
Fixed problem where users running CET in a language other than English couldn’t adjust the scale of Revision Clouds.
Fixed problem where the ‘Email Drawing’ option under the Help menu, or in custom Extensions, did not work with the new Outlook.
CET Edition Specific Release Notes
News & Changes

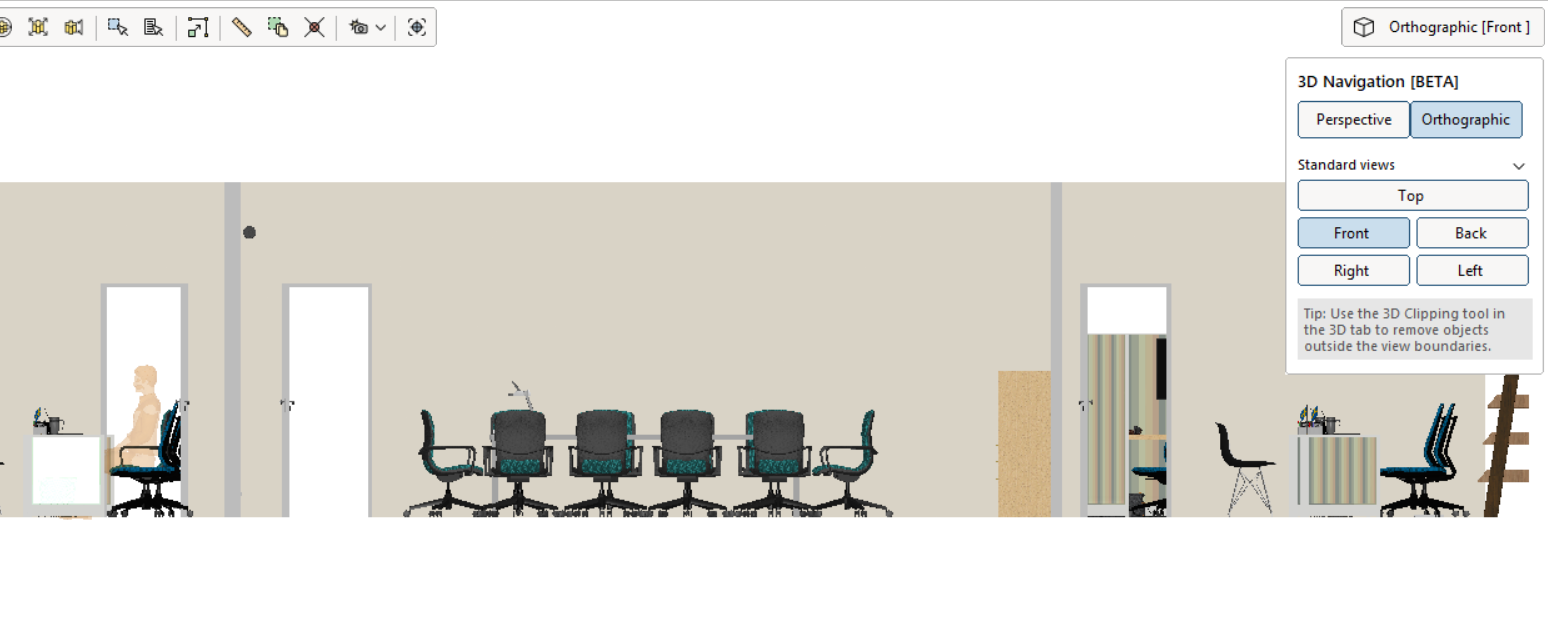

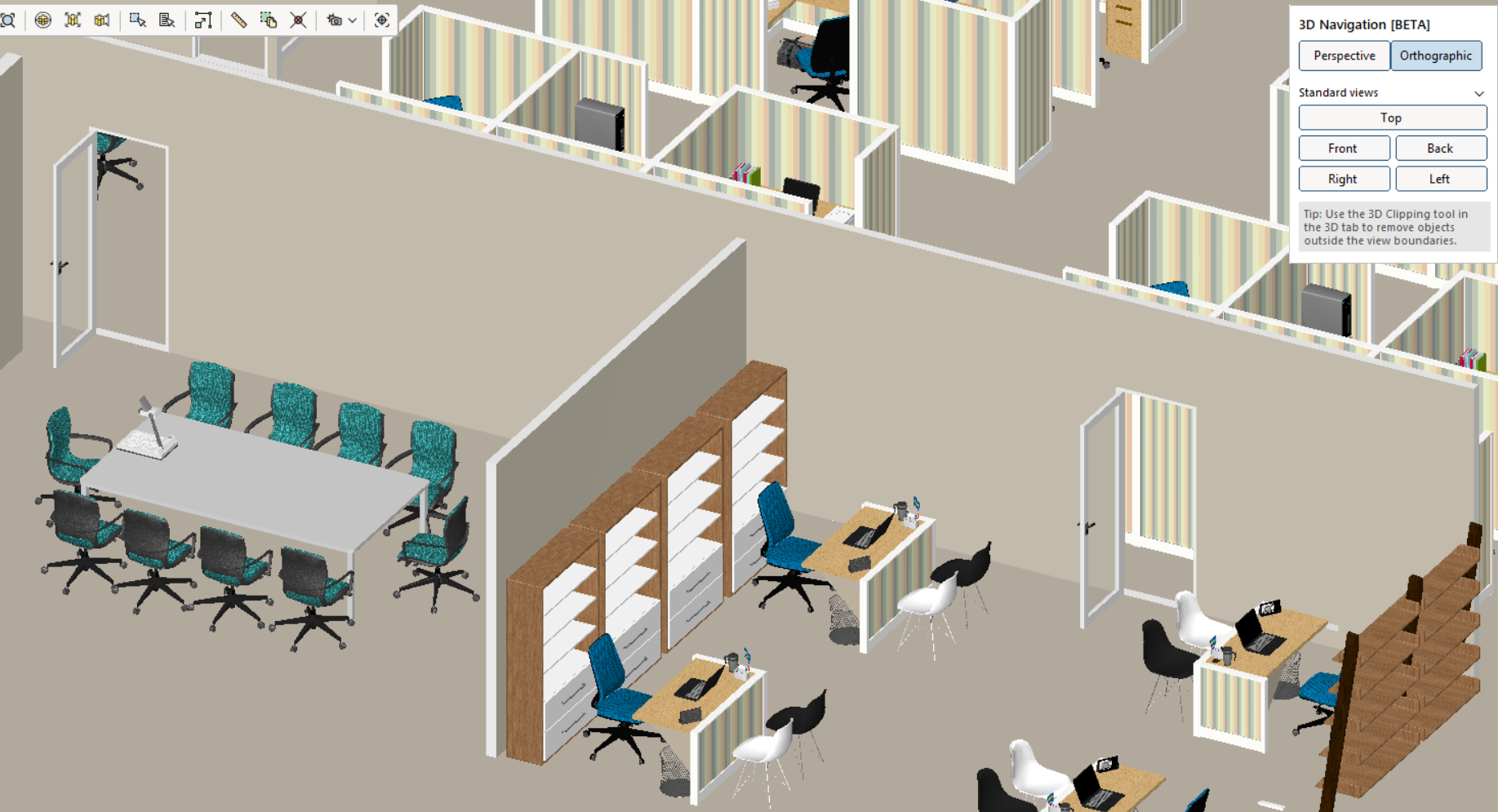

New Beta Feature: Orthographic View Support with Camera Presets
For the Commercial Interiors Edition of CET, we're expanding the 3D navigation options in the workspace. In addition to the default perspective view, you can now switch to an orthographic view — ideal for layout planning, alignment, and spatial organization.
Orthographic mode is advantageous when:
- Checking alignment and spacing without depth perspective.
- Working from fixed, standard angles.
We're also adding certain camera positions that are typical for working in orthographic mode, but they can also be accessed from perspective mode: Top, Front, Back, Left, and Right. The view from these positions gives you a clear head-on look at your design, helping ensure everything lines up just right.
Catalog Browser & Query Dialog
Enhanced Product Data Customization for Catalogue Browser objects. Catalogue Browser objects now support modification of queried product data options; giving you greater flexibility in managing product information.
Added an ‘Add Option’ button to the Query dialog for inserting customizable special options.
Enabled copy functionality in the Query dialog, supporting full grid, row, or individual cell copying with formatting.
Added visual highlights in the Query dialog: blue for specials and purple for custom-added options.
Calculations
Added ‘Attribute Note’ and ‘Attribute Description’ columns to the Calculations dialog, with tooltips and double-click support for editing. These columns are now included in PMX, SIF, OFDA XML, and Excel exports.
Material Portal
Added a Help dialog in the Material Portal for workflow guidance.
Fixes & Enhancements
Bug Fixes
- Fixed problem where GMaterials appeared at different scales when applied through the Material Explorer versus the Custom Material dialog.
- Fixed problem with incorrect Z-offset coordinates for CIL symbols using multi-graphics.
- CIL symbols will now display a warning in the tooltip when CIL categories are not initialized from the database.
News & Changes

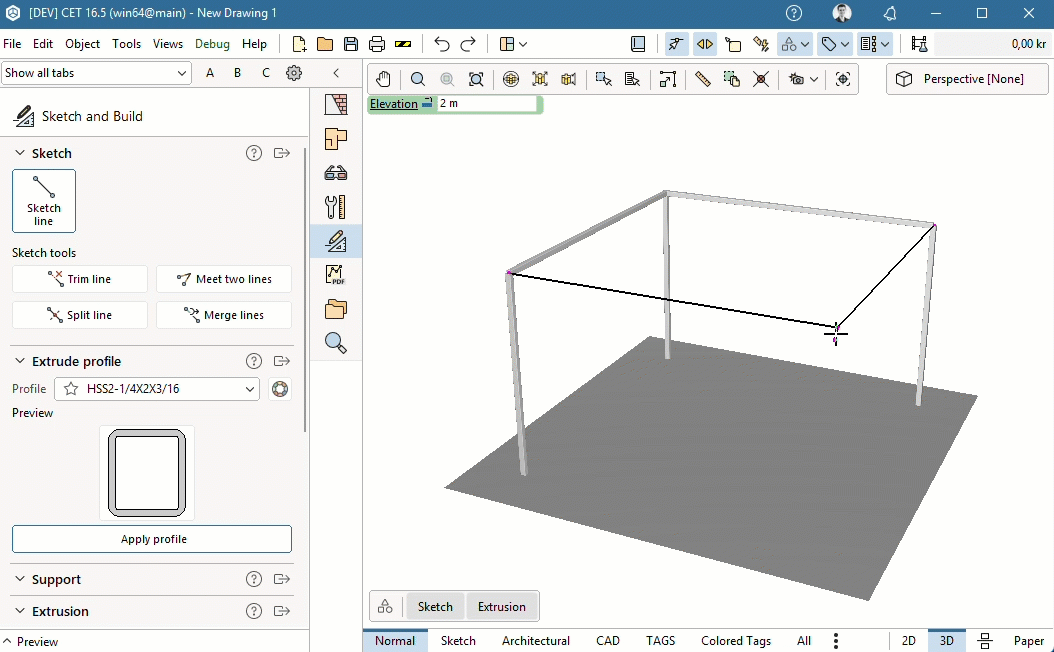

New! Sketch & Build Extension for Custom Structures
Introducing the Sketch & Build Extension—now available on the Marketplace. This free Extension allows you to sketch wooden or metallic structures and apply profiles to turn them into beams—ideal for supporting architectural needs in Material Handling layouts.
General Updates
Added a weight option for lattice boxes.
Added IBC container as a unit load.
Added new pallet types: JP type 11 and JP type 12.
Added support for saving unit loads as reusable files for future use.
RAL dependency has been removed from Essential Material Handling so it can be used by other Extensions.
Essential Extension Updates
Essential Conveyors
Improved conveyor insertion so that mapped layouts are now placed in the drawing even if you press Esc or move the mouse away before completing the insert animation.
Added support for snapping multiple conveyors to the charge end of a chute, similar to the discharge end.
Added flow‑direction arrow for curved conveyors.
Added new driver‑location options (‘Charge‑Top’ and ‘Roller’) for Case Conveyors.
Added support for displaying case conveyor and pallet conveyor as separate values in the ‘Total Length’ table.
Added 37.5° and 52.5° options for curved conveyors.
Increased the adjustable width range for chute charge and discharge to 50 mm–127,000 mm.
Lowered the minimum height for the Pick & Drop Station to 100 mm to allow for more compact layouts.
Essential Cantilever Racking
Added Decking to the accessories for Cantilever Racking.
Hid the ‘Bracing Height’ property when the bracing type is set to Single, since it only applies to Double bracing.
Essential Guarding
Updated the lower limit of side fence bracket depth to match the fence depth, allowing it to be mounted directly to racking.
Essential Pallet Racking & Essential Deep Racking
In the Pre-Configurator, the term 'Aisle Distance' has been changed to 'Aisle Width'.
Added support for displaying 3D dimensions in the Unit Load Editor preview, including both the main editor and template preview areas.
Increased maximum incline angle for pallet live and push‑back racking from 4° to 7° to support steeper designs.
Lowered the minimum pallet height to 1″ to support a wider range of pallet sizes in designs.
Industrial Marking & Signage
Added a multi-help line feature with measurements to improve precision when drawing Floor Markings.
Fixes & Enhancement
Crash Fixes
Fixed issue with CET crashing when adjusting the incline angle and stretching chute.
Fixed issue where stretching conveyors with side guard attached could cause a crash.
Fixed issue with changing zone value for multi‑zone conveyors that could cause a crash.
Fixed issue with Essential Conveyors where snapping a merge to a wedge with a large BF could cause a crash.
Fixed issue with Essential Cantilever where deleting a bay in an elevation view could cause a crash.
Bug Fixes
General
Fixed problem where a gap could appear between a unit load and beam when spreading the unit load.
Fixed problem with Flue Space widening unexpectedly after removing the bottom level of unit loads.
Essential Pallet Racking
Fixed problem where detailed tooltips could exceed the screen size.
Fixed problem with footplates floating above the floor when footplate thickness was increased.
Fixed problem with pallet racking beams appearing white instead of orange when RAL material was turned off.
Fixed problem with Mesh Deck not appearing in the Elevation View.
Fixed problem in the ‘Calculation’ dialog where changing the unit load quantity in one category could affect the quantity in another category.
Selective Pallet Racking
Fixed problem with the title disappearing from the table legend.
Essential Deep Racking
Fixed problem with flank protector shifting out of position when dragged between frames in deep racking setups.
Fixed problem with horizontal beams in deep racking not aligning with monoposts, affecting top, shuttle, and rail beam types.
Essential Cantilever Racking
Fixed problem with row shifting when using the Spread Tool on rows in Cantilever racking.
Fixed problem with incorrect aisle clearance when using the Spread Tool on aisles in Cantilever racking.
Fixed problem with selecting cantilever racking bays in 2D that could cause the row to be selected instead of the bay.
Fixed problem with systems shifting position when stretching a single bay.
Essential Mezzanine (Beta)
Fixed problem with broken mezzanine cut out stretching animation.
Fixed problem with objects not moving along with mezzanines.
Industrial Marking & Signage
Fixed problem where the Industrial Marking & Signage Extension would not download and show Sign products.
Essential Conveyors
Fixed problem with missing zone numbers for multi‑zone conveyors in several languages.
Fixed problem with adjacent conveyors aligning to the side instead of the middle, causing them to shift when changing the base frame of the conveyor.
News & Changes
General
Removed multiple drawing support for the Kitchen & Bath Edition of CET; only one drawing can be open at a time.
Adjusted sink placement in Essential Kitchen to default 15 mm from cabinet front for improved alignment.
Introduced filtering on fan types (wall, ceiling, under cabinet, bench) in the Appliance selection.
Fixes & Enhancement
Crash Fixes
- Fixed issue where expired appliance products combined with expired accessories could cause CET to crash.
Bug Fixes
Fixed problem where unavailable tools would reappear when switching to Paper View.
Fixed problem with switching between 'Normal' and 'Countertop' view modes that could result in noticeably slower performance.
Fixed problem where dimensions of a wall worktop in 2D overlapped with dimensions of a bench-placed worktop.
Fixed problem with incorrect handle placement on 90x90 corner cabinets when the hinge side was changed.
Fixed problem with handles being incorrectly placed on wall corner cabinets.
Fixed problem where full covering sink edges were sloped instead of vertical, causing a visible gap between the worktop and sink edge.
