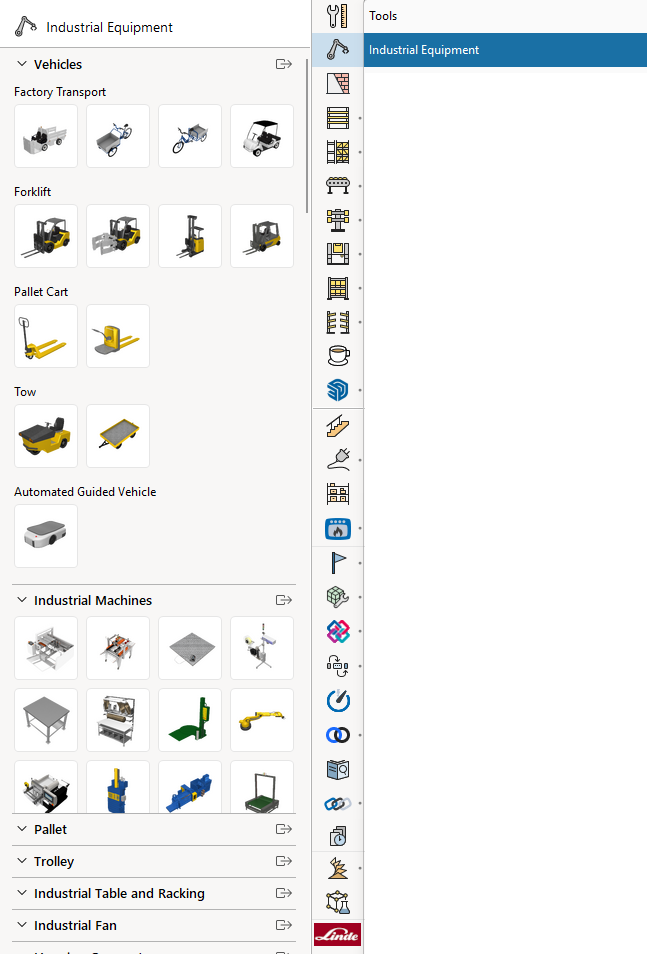

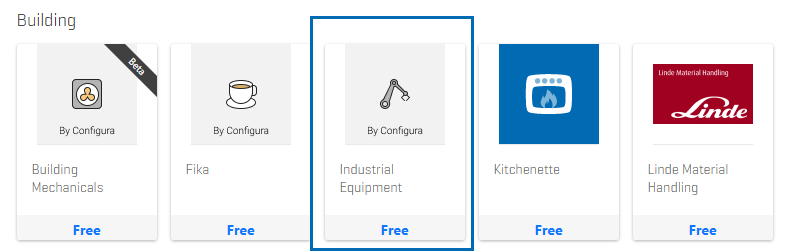

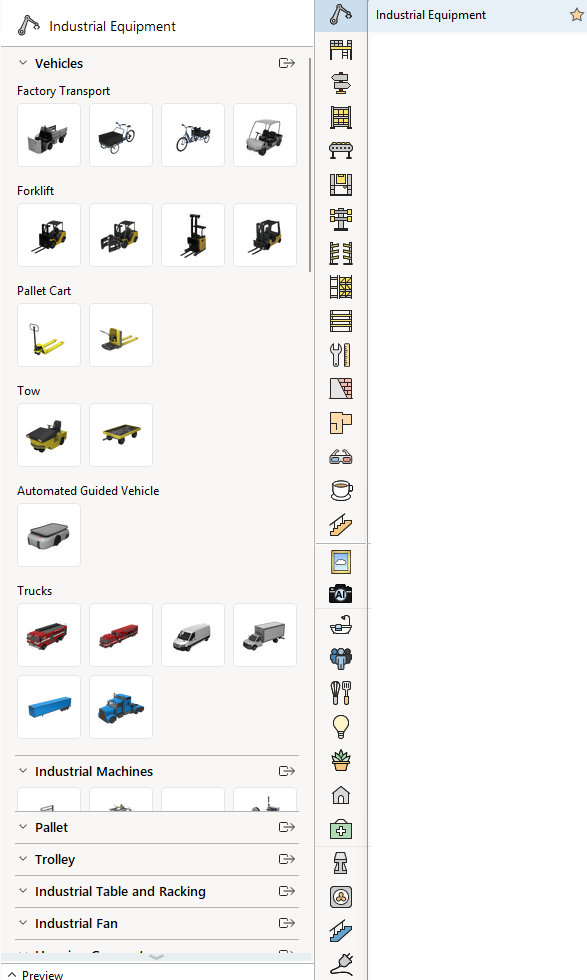

Industrial Equipment is a free extension available in the Marketplace that includes generic industrial themed accessories such as vehicles, machines, pallets, and signs.

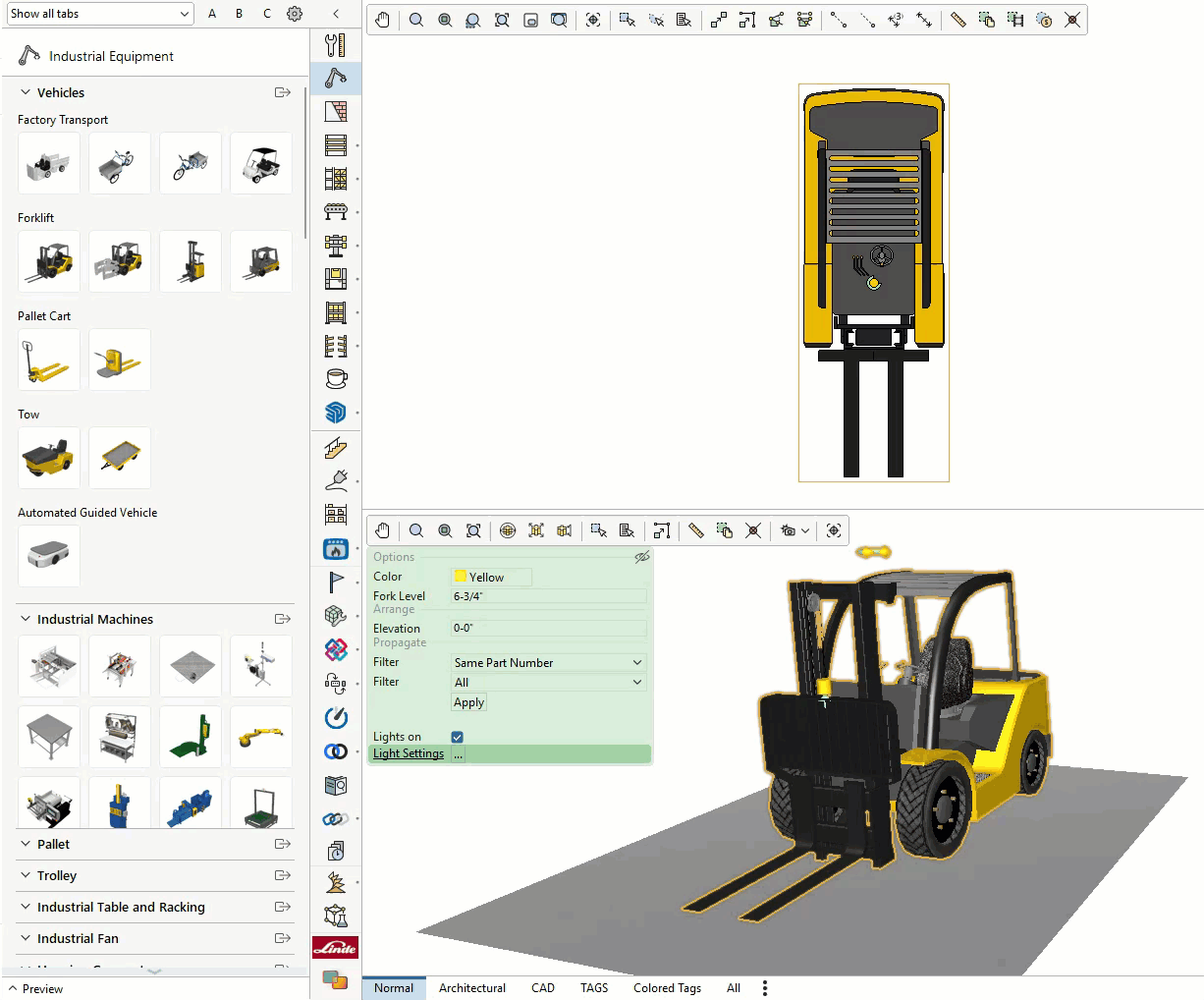

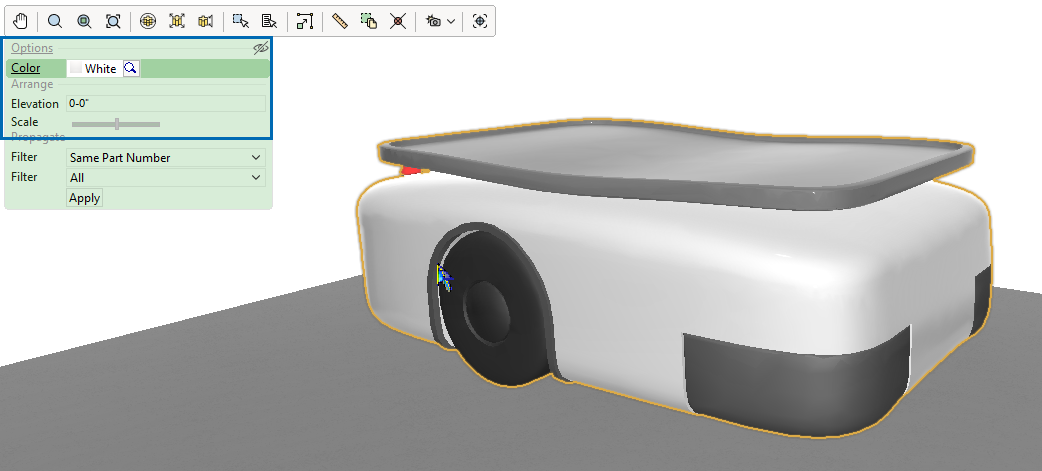

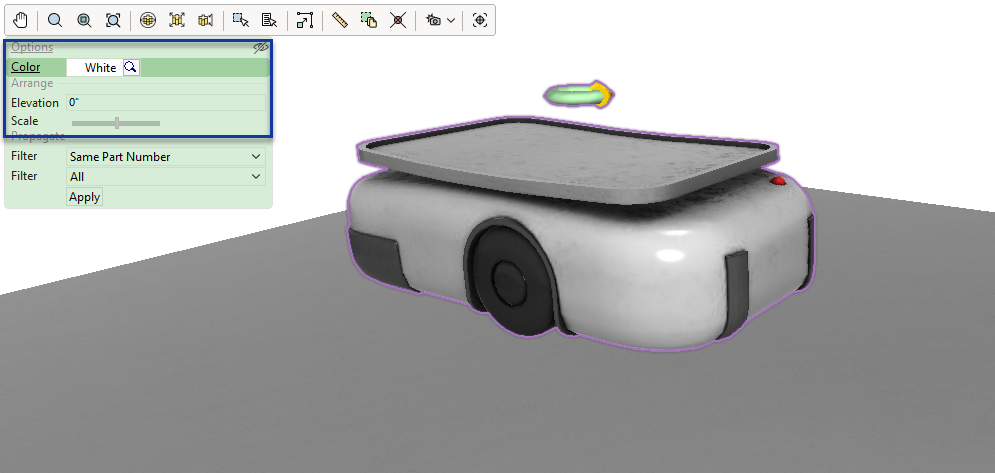

Be sure to check the Quick Properties, as many of the accessories have color, feature, or scale, options available.

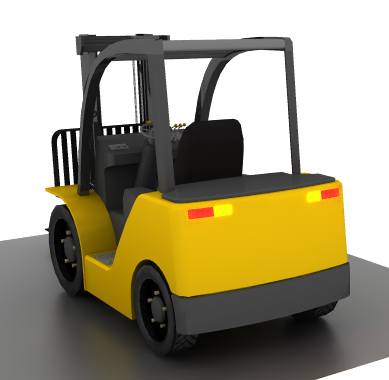

Image above shows a rendered image of a forklift with the Lights On checkbox selected.

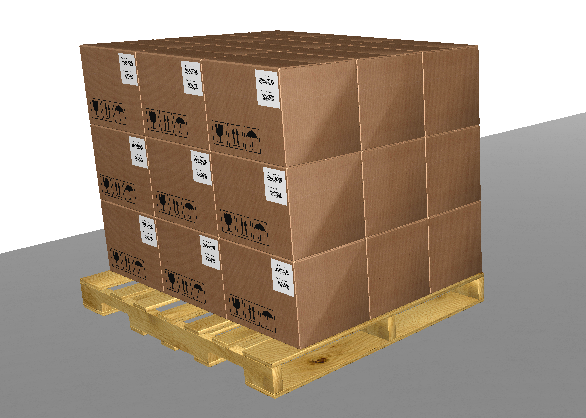

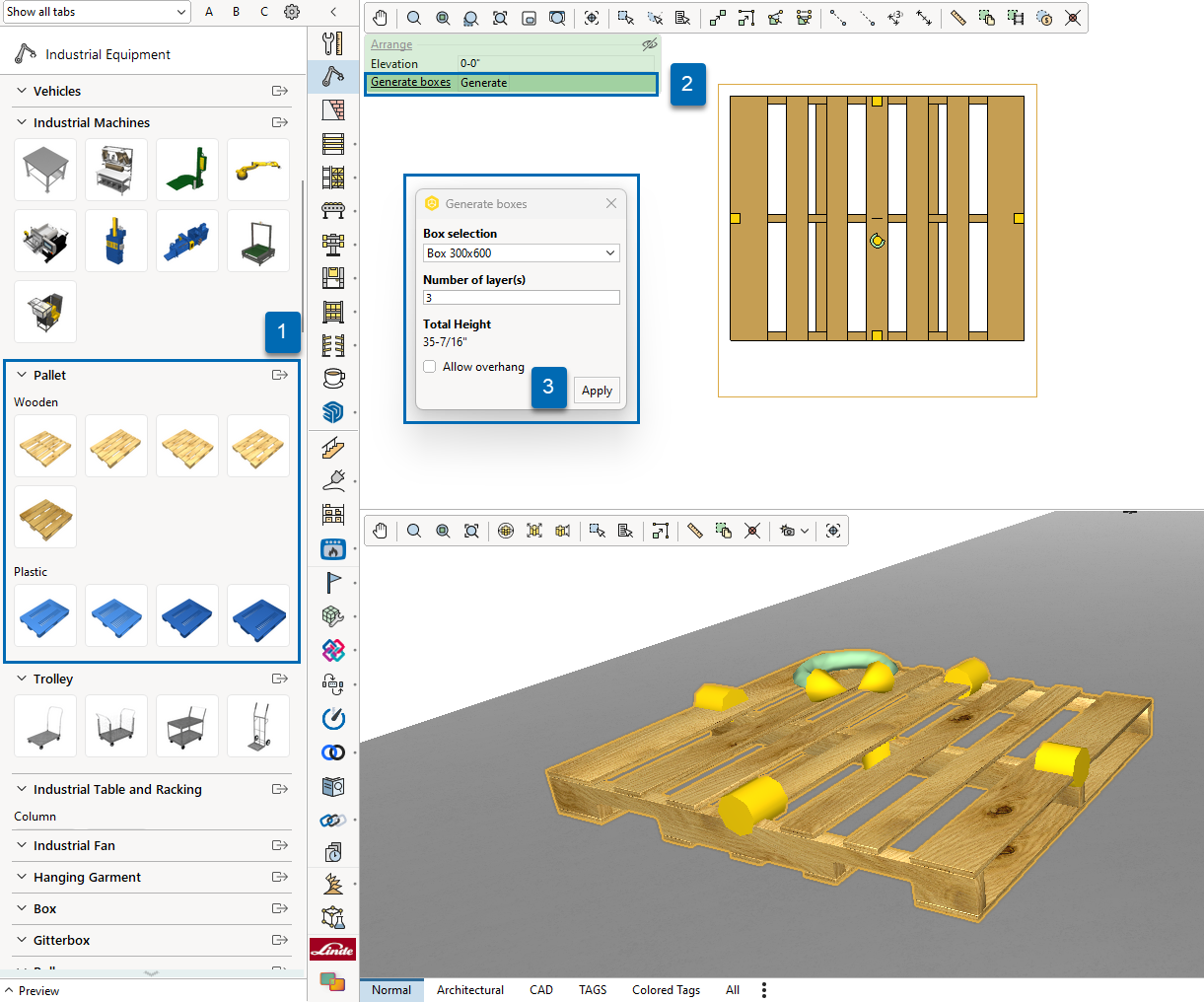

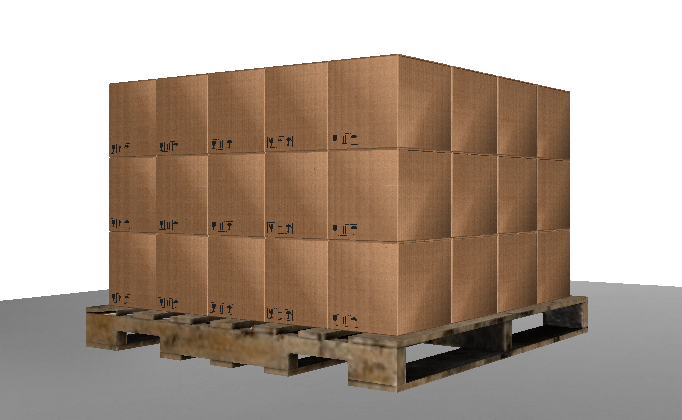

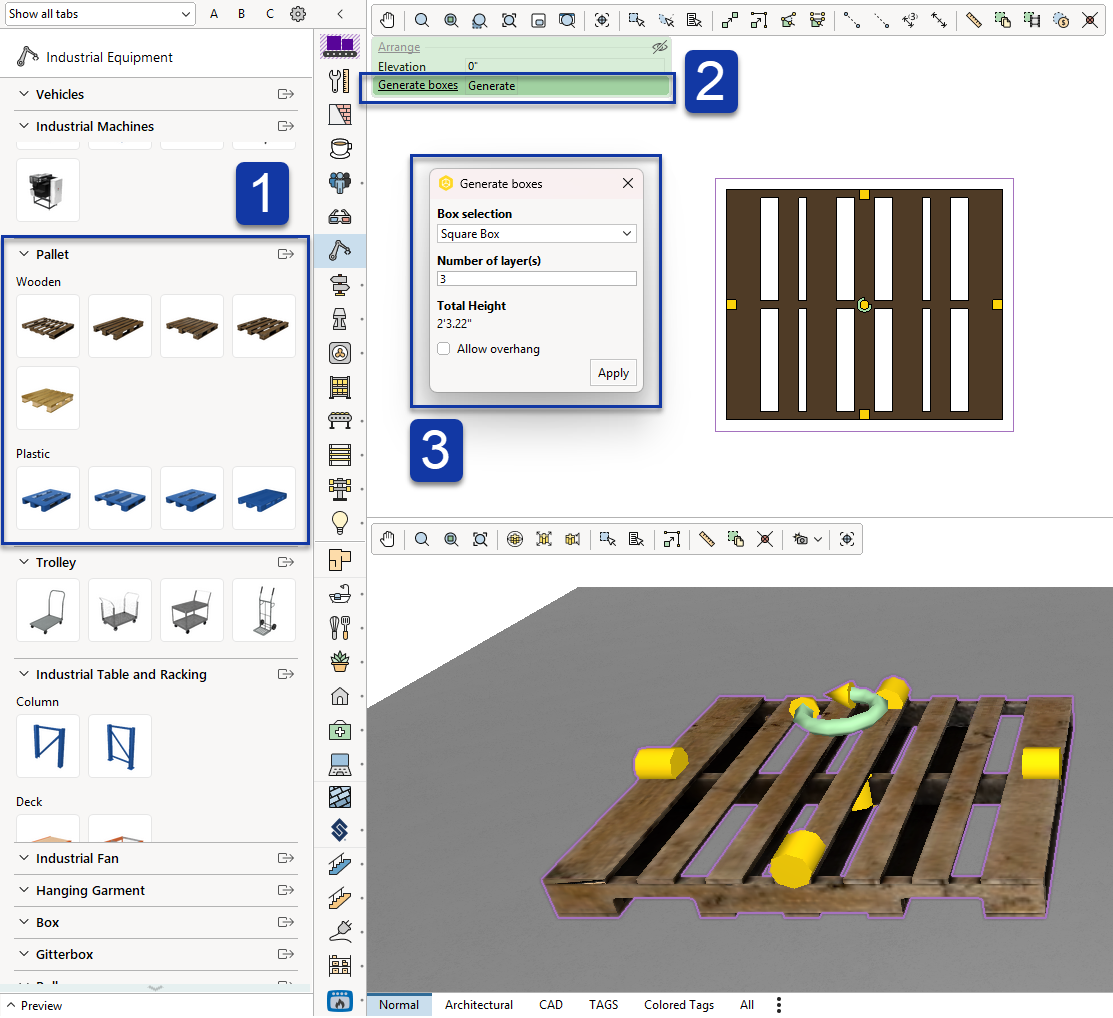

Pallets have a Generate boxes button within the Quick Properties that allows you to automatically populate stacked boxes upon them.
1. Select the Pallet you would like to use, and place it in your drawing.
2. Press the Generate button
3. Enter desired properties and click Apply

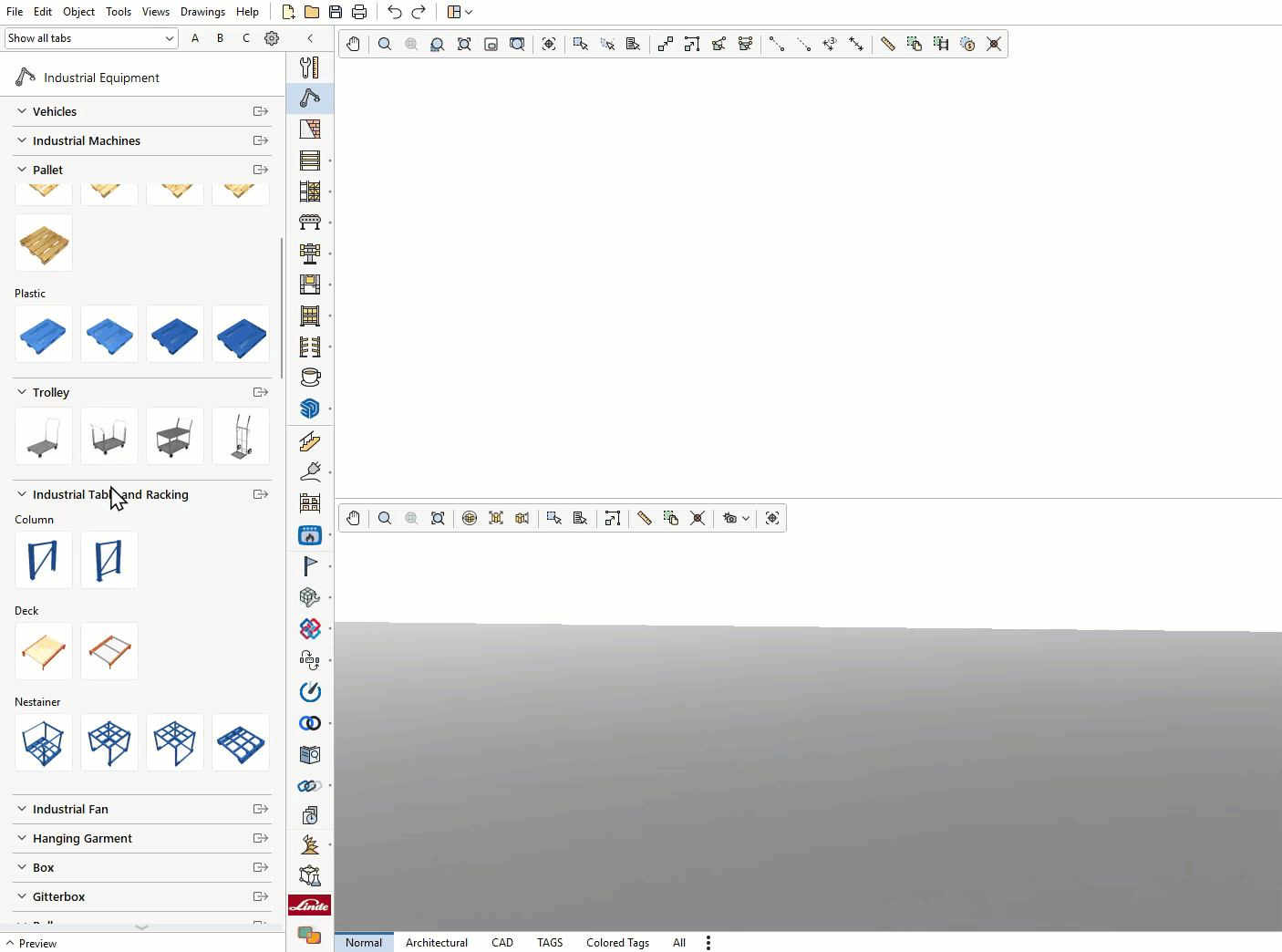

The Industrial Table and Racking section includes Column and Deck symbols that can be placed together to create simple racking storage.

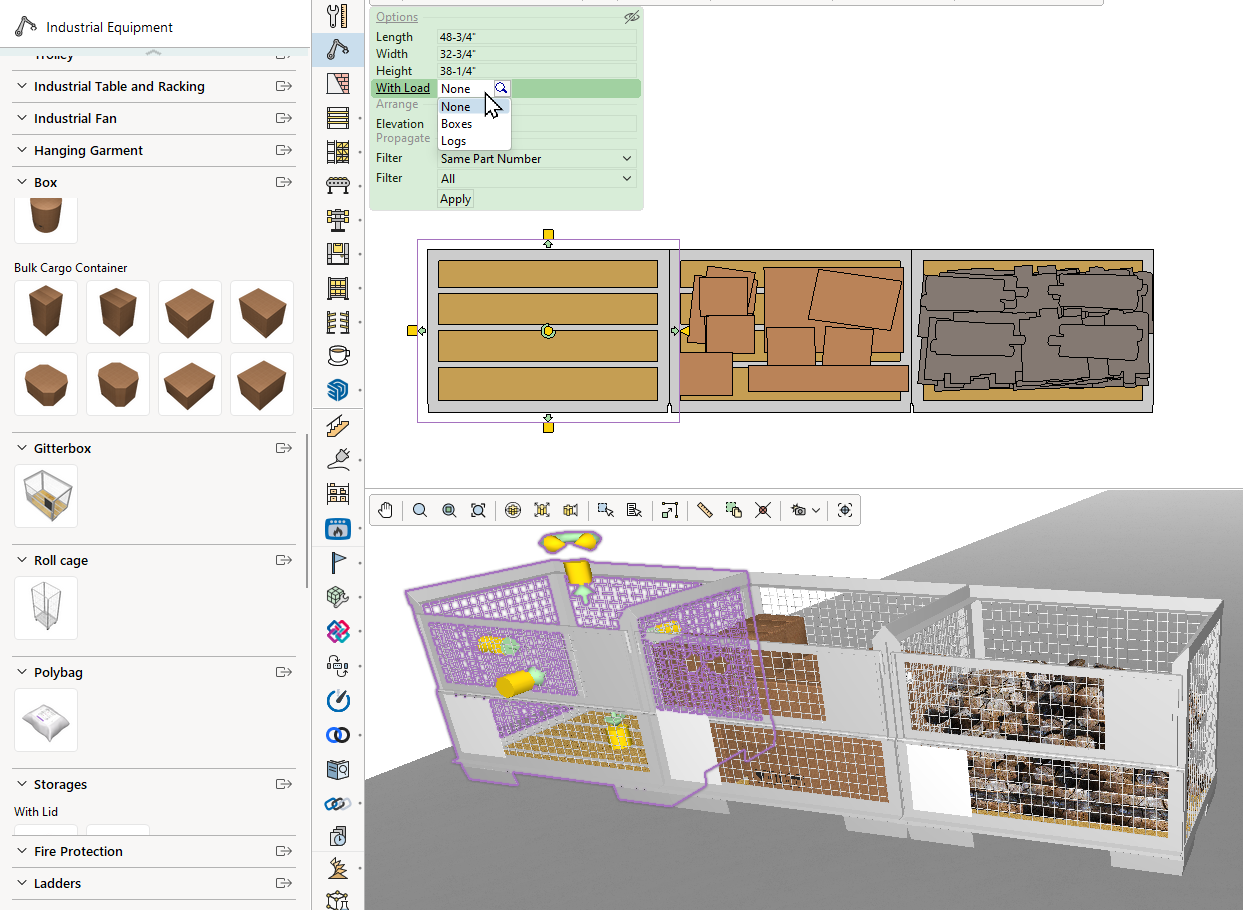

Glitterboxes have load options available by using the With Load dropdown within the Quick Properties. They may be shown with None, Boxes, or Logs.

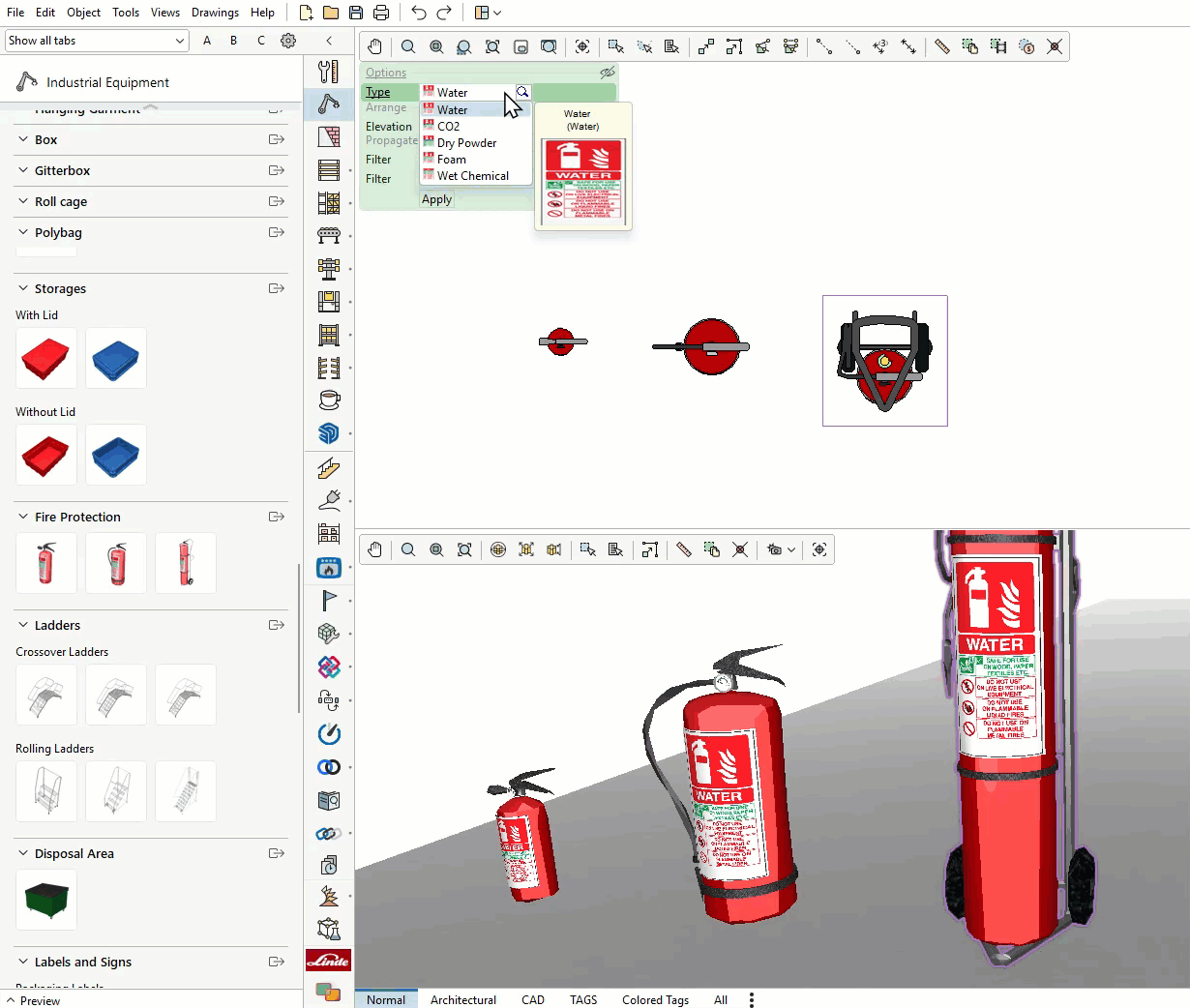

Fire extinguishers in the Fire Protection section have a Type option within the Quick Properties so you can add the appropriate type of extinguisher to you space.

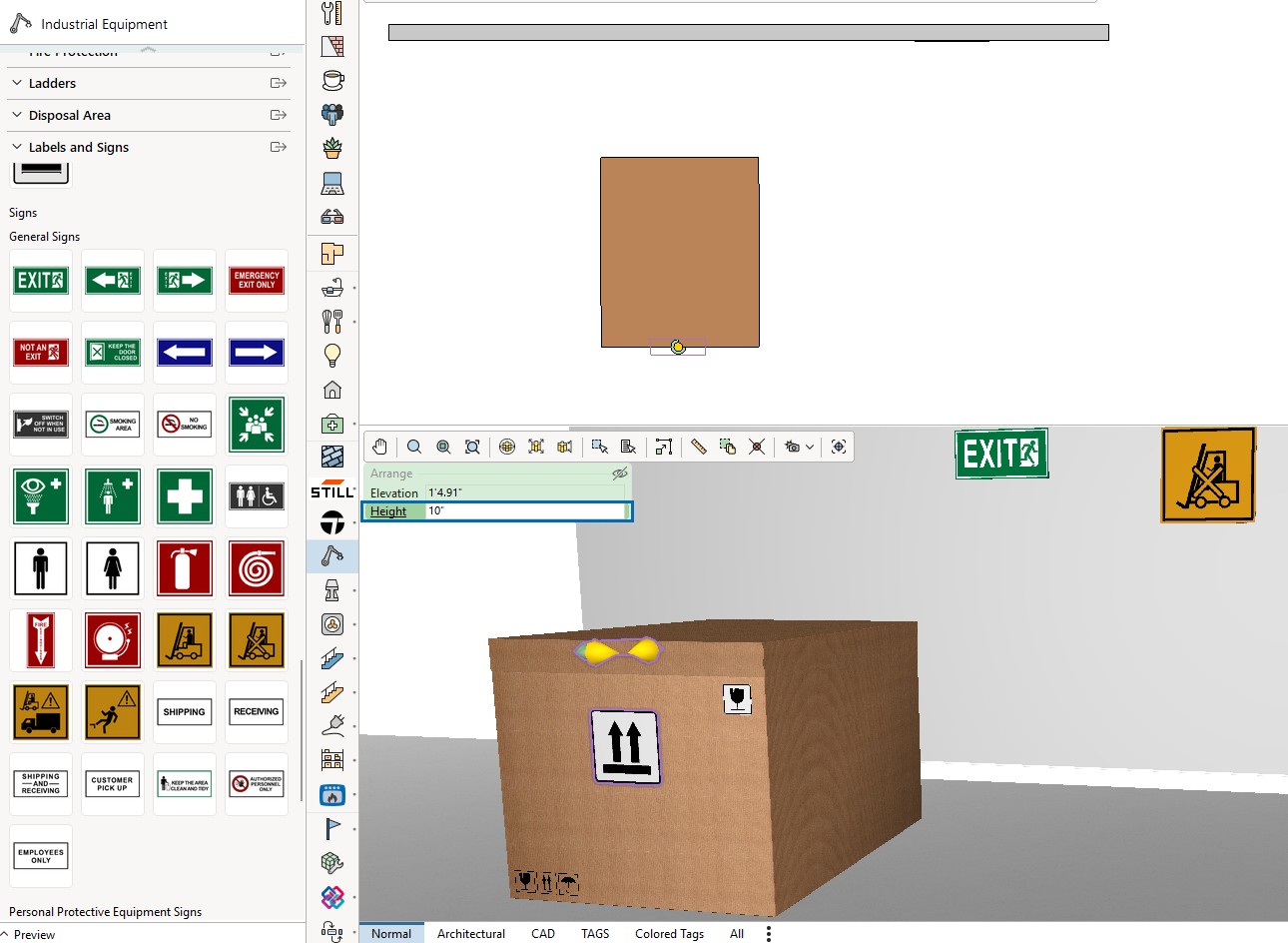

Labels and Signs can be placed on any surface, including walls and boxes. The size of the labels and signs can be changed by altering the Height property.
