Overview

Since our first release in 2004, the CET ecosystem has grown significantly, and we have seen technological advancements, evolving design paradigms, and shifting user expectations transforming the way we work. However, our core mission remains - to be the world's most intelligent platform for designing sustainable, efficient, and beautiful spaces; and this mission drives every improvement we make. As part of our steadfast commitment to enhancing usability and efficiency, and delivering a standardized user experience across the platform, we launched a facelift initiative in 2024.

Primary Goals of the CET Facelift

• New Visual Design aims to modernize the CET experience you know and love, enhancing usability while paving the foundation for us to deliver exciting new features.
• UI Stability with backend improvements to improve user experience and general system performance.
• UX Design Guidelines introduced to development teams to improve quality, design cohesion, and user experience across the platform.

For a video walk-through of the changes, please view our online tour, or keep reading for side-by-side comparisons of the old and new UI.

2D Toolbar

Previous version (15.0 old UI):

Updated version (15.5):

Tools that have been converted to Toggle tools and moved to the right side of the Menu bar:

Menu bar Toggle tools:

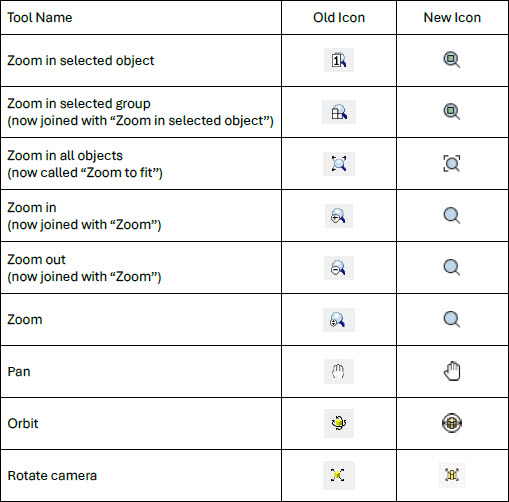

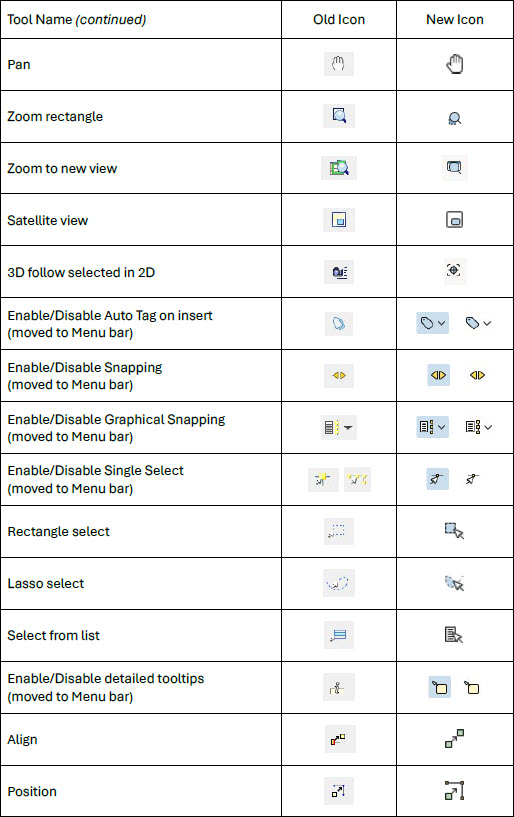

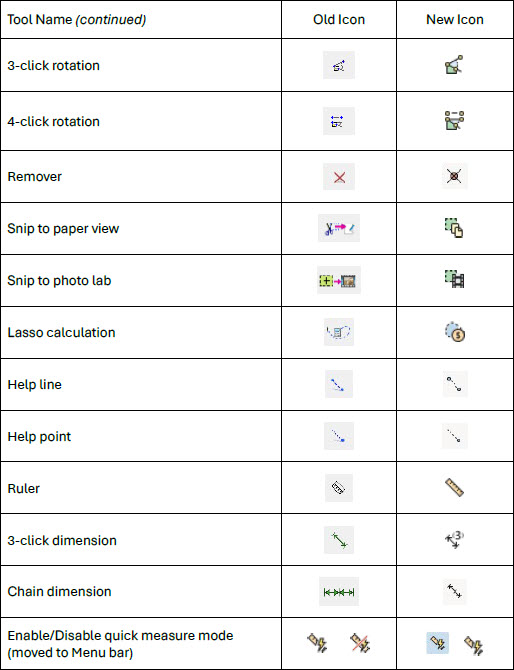

2D Toolbar Icons:

3D Toolbar

Previous version:

Updated version:

Tools that have been converted to Toggle tools and moved to the right side of the Menu bar:

Menu bar Toggle tools and Photo Lab launcher:

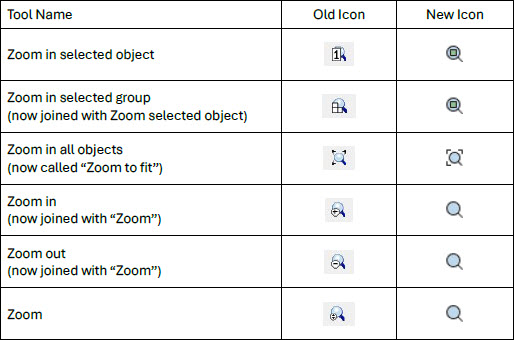

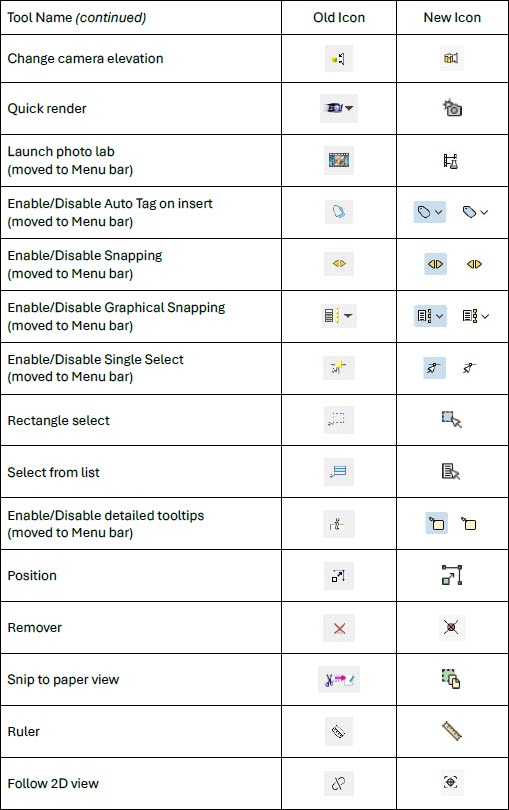

3D Toolbar Icons:

Dropdown Menus

The dropdown menus have also been reorganized. The Arrange menu was removed and a new Object dropdown was added. Below, you will find a list of functions that have moved around in the dropdown menus.

Previous version:

Updated version:

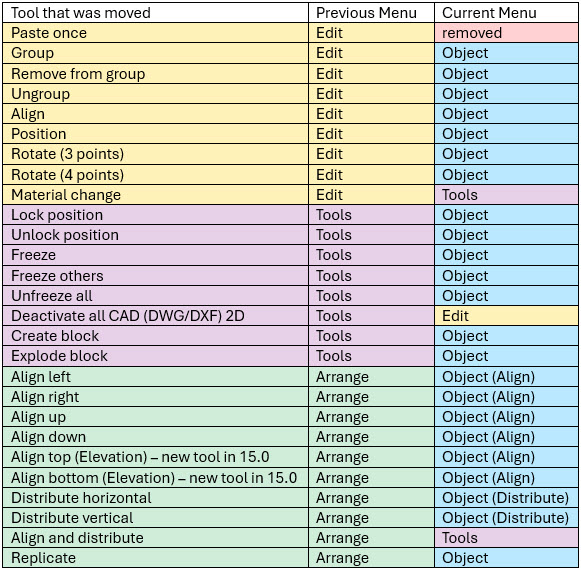

Dropdown menu tools that were moved to another menu:

Other Menu Bar Changes

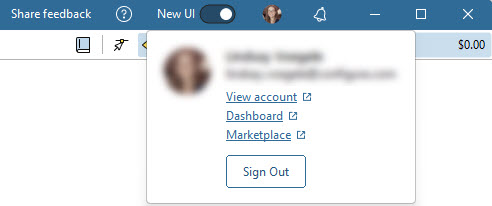

Buttons for the Marketplace, as well as your MyConfigura account and dashboard, can now be found by clicking on your profile image. For notifications, select the bell icon (top right).

Work Mode now has an icon instead of text. Use the dropdown arrow to select your preferred Work Mode or to create a custom mode.

Core Component tabs

• Like items may be nested under other tools. For example, the various types of Walls are now found nested under a single button, indicated by a small triangle in the bottom corner:

• Two new dimension tools were added to the Tools tab:


  2-click dimension
  Quick chain dimension

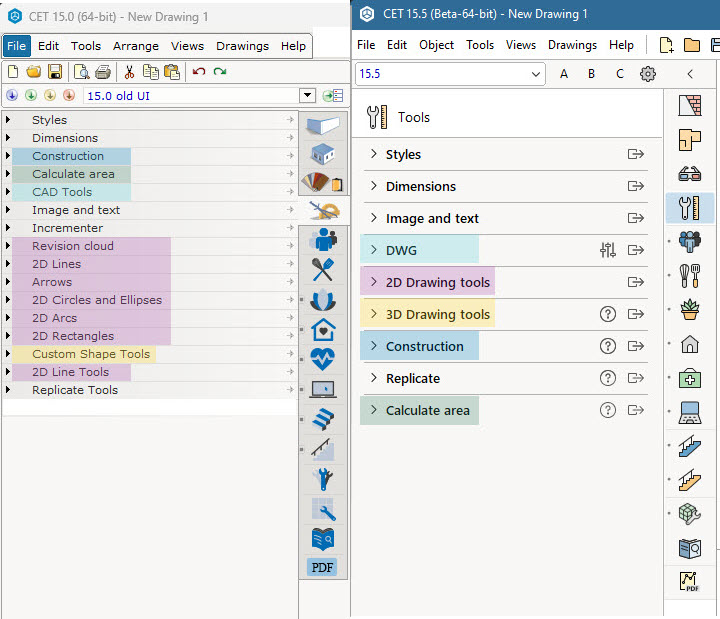

• The tabs on the Tools tab were reorganized to be more user-friendly and efficient
