About the Bay Editor

The Bay Editor is used to predetermine the bay properties before placing products in the project. The benefits of using the Bay Editor include:

• Ability to customize and edit bay properties
• Apply updated bay properties directly in the drawing
• Save and load reusable templates

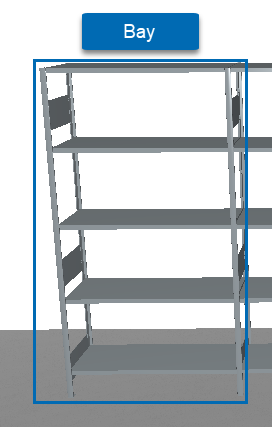

A bay is a set of stacked compartments between two uprights. A compartment is a space where pallets are stored and consist of the horizontal (beam) and vertical (upright) components.

Navigating the Bay Editor

To open, click Bay Editor in the Settings component section.

1. The Save button will save just the selected bay type. If you have multiple bay types, you must save each individually. Because these files are saved locally, they can be moved or shared. The Load button will allow you to browse for a previously saved bay style. A loaded file is listed in Types of Bay.

2. Types of Bay lists the loaded and drawing bay types. Selecting a bay type will preview it in the editing window.

1. • • The  button will add a new default bay type.
     • The  button will refresh the Bay Editor.

3. There are three properties tabs: Size, Level, and Accessories.

• • The Size tab sets and shows bay measurements and allows you to change the number of Levels.
  • The Level tab allows you to select a Level to change the Unit Load and Level Clearance.

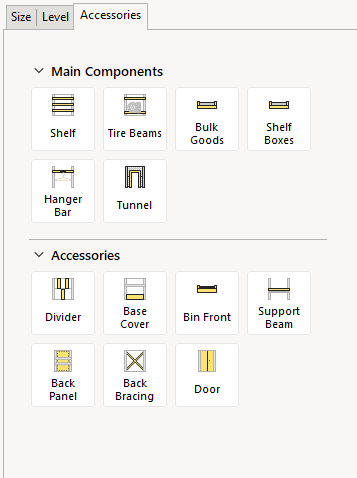

  • The Accessories tab allows you to customize bays with the following:

4. The Editing Window is the area to make the changes to the selected bay type.

• The View Mode button on the bottom right allows you to select a view mode.  Normal shows all components, Unit View allows you to select individual unit loads, and Unloaded view shows the bay without any units.

5. The Save and Apply buttons are used to save changes and apply the changes to the drawing.  See below for more information.

Create and Apply a Bay Type

To CREATE a new bay type, follow these steps:

1. Add a new bay type under Types of Bay.
   • Click the  button to add an automated default bay.
   • Click the  button to copy an existing bay type.
2. Enter the name or rename the bay type with the  button.
   • Bay types can be renamed at any time!
3. Use the Size, Level, and Accessories tab to add/edit properties.
4. Save the bay type, if desired.

To EDIT an existing bay type, follow these steps:

1. If necessary, click Load to open an existing file
2. Select the name of a bay type to edit
   • Located under Types of Bays on the left-hand side
3. Use the Properties section to edit the settings information
4. (Optional) Click Save to save your changes

To APPLY a bay type, follow these steps:

1. Select your desired bay under Types of Bay
2. Select an application option:
   • Save and apply existing will save the changes the the selected Bay and replace all of the existing selected Bay types currently in the drawing
   • Save and apply all allows you to make changes to several Bays at once, then save those changes and apply those changes to the existing Bays in the drawing with one button. Names of Bays that have been edited and are not yet saved will appear in italics
   • Apply to target allows you to locate the specific Bay or Bays in the drawing to apply the changes to, then click to replace the existing.  Press the ESC key to exit the command and return to the Bay Editor
