System Requirements

• Have fully licensed version of AutoCAD Installed
• Supported versions: 2025-2026
• Download and install Notify and CI Warehouse

Installing CI Library into AutoCAD

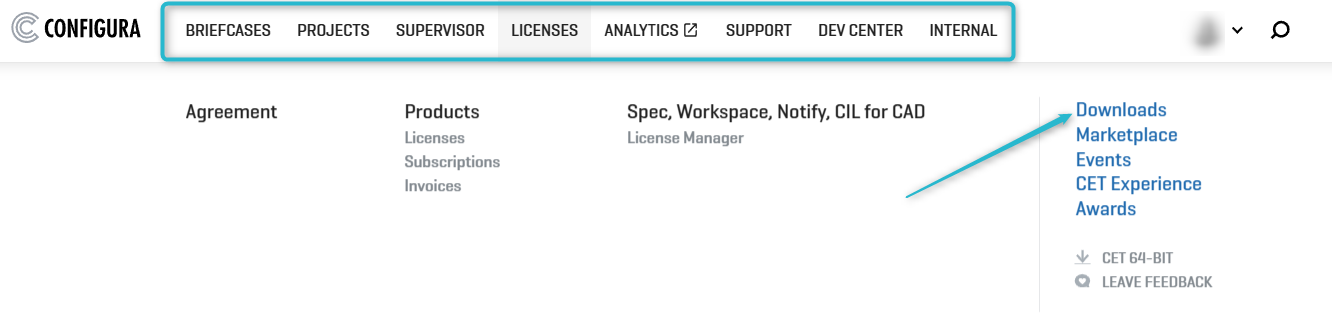

1. To download CI Library for AutoCAD, you will need to hover over the tabs in MyConfigura and then click "Downloads" on the right:

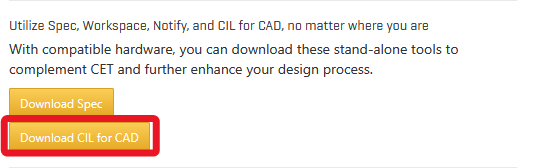

2. This will bring up the Downloads page, and you will need to run the executable for CI Library for AutoCAD:



3. Once installed, Ribbons/Menus for CI Library should automatically appear.

   However, if that does not happen, please follow the next steps:

   • Right click to open Options in the Command Line OR typing in "Options" -

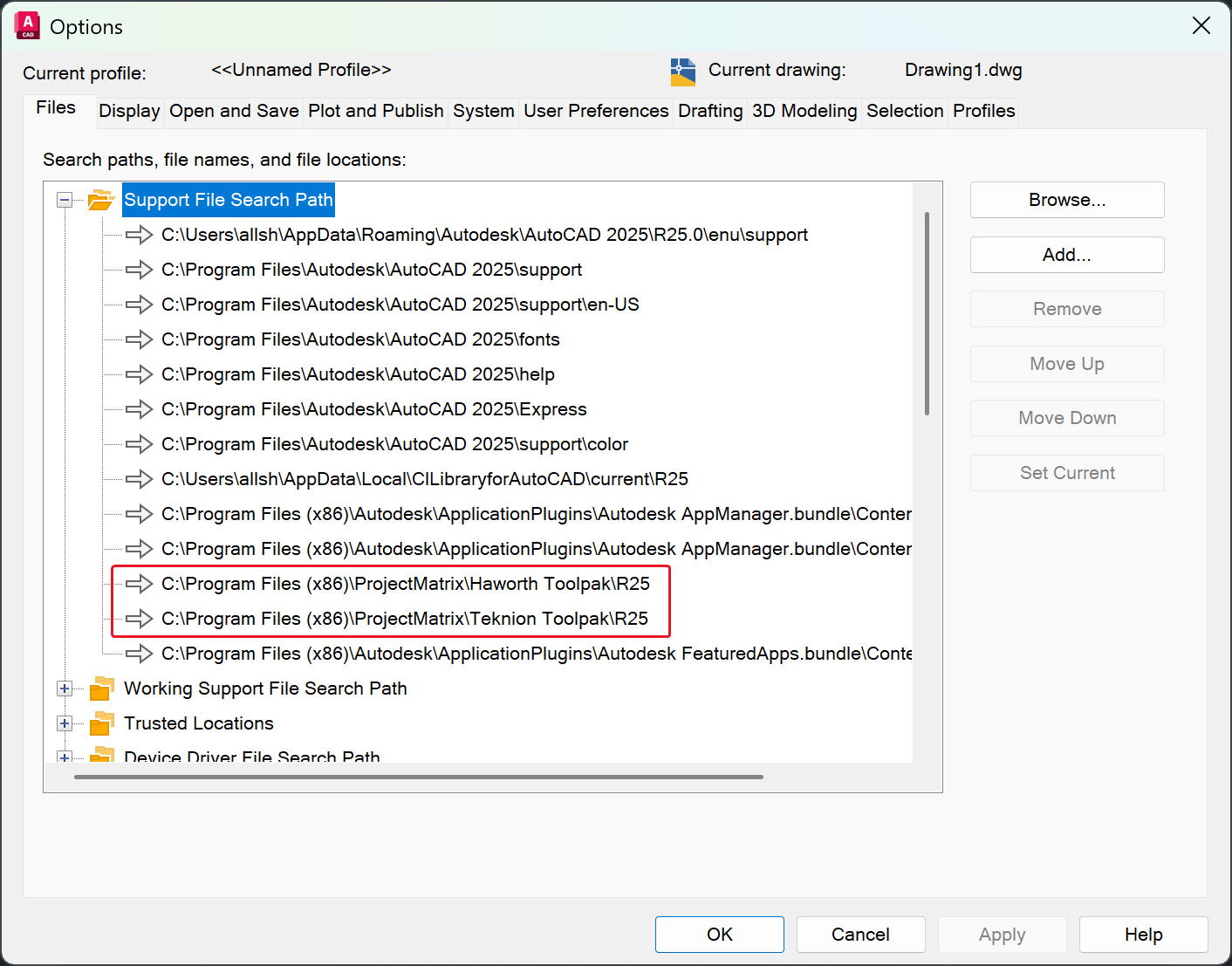

   • On the left, expand the FILES tab- click the + next to Support File Search Path

   • Manually add the search path in the Support file. The search path is:

     %LOCALAPPDATA%\CILibraryforAutoCAD\current\R25



4. Restart AutoCAD

If the "CI Library" menus still do not load, please try this:

1. Save the workspace as a new template using the Workspace Switching gear icon (bottom right of AutoCAD screen):



2. In the command line of AutoCAD, type: MENULOAD

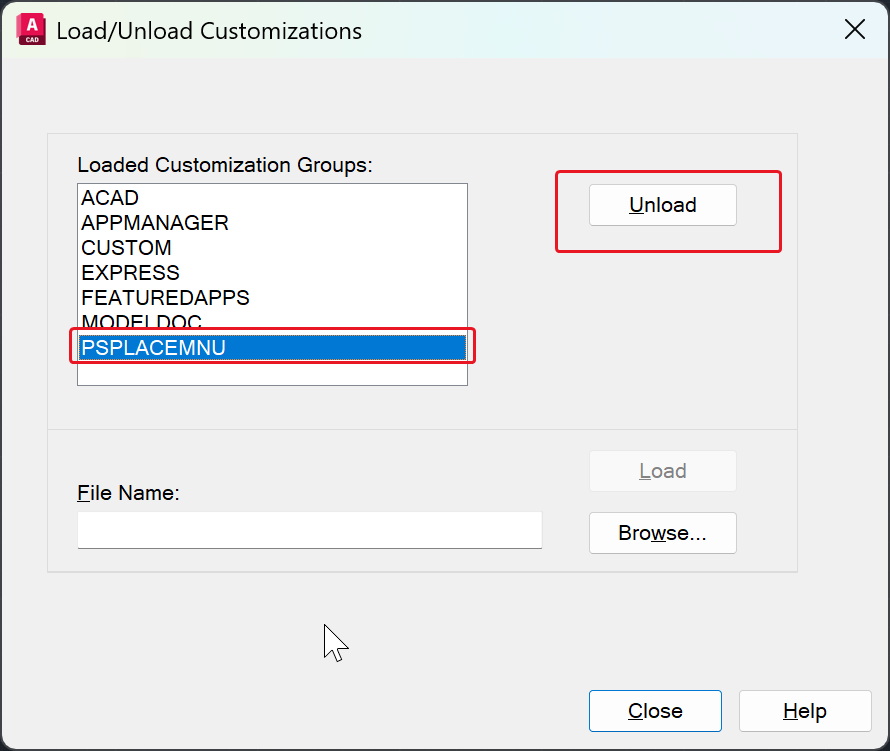

3. In the "Load/Unload" dialog, unload the PSPLACEMNU:



4. Reload the PSPLACEMNU by typing ADDPSPL in the Load section:



5. Close the MENULOAD dialog
6. Ribbons should now appear

Installing Panelbuilders

Panelbuilders can be installed from the Downloads page on MyConfigura if the account is licensed for CI Library for Autocad:

Once installed, Panelbuilders becomes available inside CI Library for AutoCAD as soon as AutoCAD restarts.

IMPORTANT SIDE NOTES:

• If the builder is inoperable and a "program not found" message appears (see below), the path will need to be manually added.

TO MANUALLY ADD THE PATH:

1. Right click to open Options in the Command Line OR typing in "Options"
2. Open the SUPPORT FILE SEARCH DIRECTORY by clicking OK on the above message
3. Click ADD

4. Path the specific AutoCAD version being used

   Example: Using AutoCAD 2025 and the Haworth Toolpack

   Add a path in the SUPPORT FILE SEARCH PATH to:

   C:\Program Files (x86)\ProjectMatrix\Haworth Toolpak\R25
