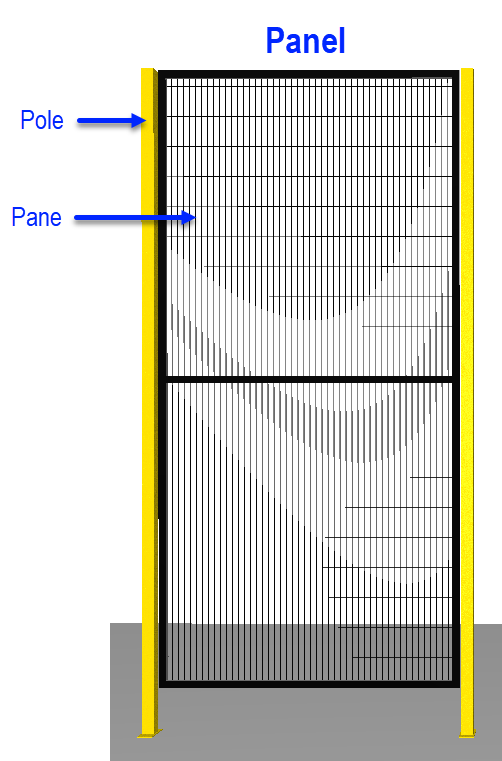

Panes and posts provide the framework of the panel structure. Panels offer the versatility to be stretched to varying widths and heights along with skin options to suit the scope of your project.
Use Group select mode and Single select mode to adjust the height, width, and properties of a panel.
- Group select mode allows you to stretch the panel's height by dragging the yellow cylinder.
-
Single select mode allows you to select an individual pane and update the skin properties.

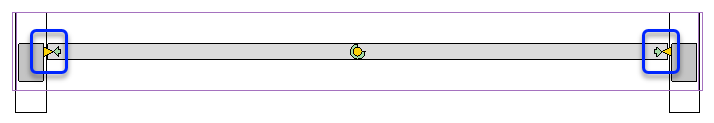

The yellow arrows on the 2D panel are used to adjust the width. Use the Quick Properties box to select a predetermined width in the dropdown menu.
Panel tool
The Panel tool places a panel and post with one pane or replaces an existing one
To create a Machine fencing barrier, follow these steps:
- On the Essential Guarding Extension tab, select the Panel button.
- Move the cursor to the drawing area. There will be a panel attached to the cursor.
- Click to place a stand-alone panel with a post on both sides.
- Move the cursor to plan for the next panel placement.
Panels and posts are built with snapping properties that create a magnetic-like effect when placing multiple panels next to each other. A post has two "snapping" points on each of its four sides. This allows you to appropriately plan for the placement of the panes and create 90° corners.
- Click again to place another stand-alone panel.
- Repeat steps 3 and 4 until you achieve the desired design.
- When finished, press Esc or move the cursor off the drawing area to release the command.
Insert rectangular fenced area
Insert rectangular fenced area is a convenient tool used to add fencing in a rectangular form rather than manually inserting one panel at a time.
To quickly create a rectangular Machine fencing barrier, follow these steps:
- On the Essential Guarding Extension tab, select the Insert rectangular fenced area button.
- Move the cursor to the drawing area. The cursor will have a circle next to it.
- Click once to secure the starting point.
- Create the rectangle by following these steps:
- Move the cursor in the desired direction until the rectangle reaches the desired width.
- Click once to confirm the width.
- Move the cursor in the desired direction until the rectangle reaches the desired depth.
- Click once to confirm the depth.
- When finished, press Esc or move the cursor off the drawing area to release the command.
Door tool
The Door tool inserts a door with a stretching connector to act as an entrance with the ability to open and close. It can be used to serve as a replacement for an existing panel or as a new add-on.
You have the ability to modify the door swings, ensuring they align correctly and determining whether the door swings inward or outward. Additionally, you can adjust the angle of the open door.
Service opening
The Service opening tool provides an open space/passage on a panel.
