Alternatives in the Print Report dialog

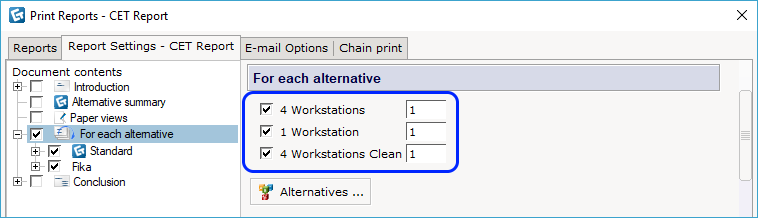

To print a drawing alternative, follow the steps below:
- Go to the File menu and select Print Reports.
- Click the Report Settings tab and select For each alternative.
- To avoid printing any contents from a particular alternative, uncheck the box here.
- Keep the alternatives dialog open. Switch between alternatives. The Article Views listed will reflect those existing in Calculations for the selected alternative. Select the desired Article Views for each alternative as it is selected in the Alternatives window.
Alternatives in Photo Lab

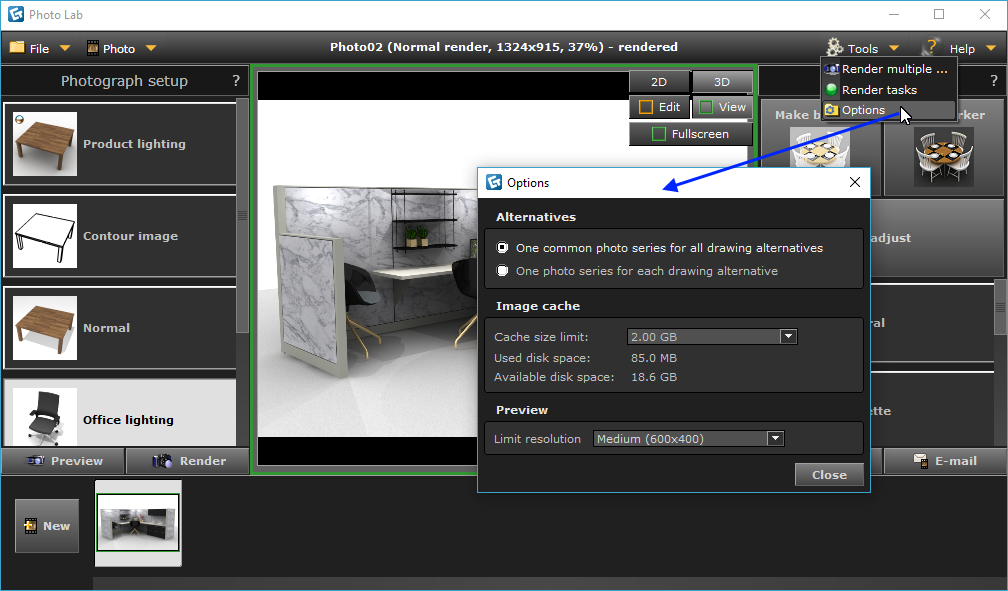

To decide the behavior of renderings in Photo Lab for drawings with Alternatives, go to the Tools menu in Photo Lab and choose Options:
Your two options are:
One common photo series for all alternatives
Every thumbnail you create in one alternative will create a matching thumbnail in all other alternatives. It will have the same photograph setup and camera view (camera angle, pitch, etc.). This way you can have side-by-side renderings of the different alternatives and avoid images that are slightly off, which can be distracting.
One photo series for each drawing alternative
Photo Lab in each alternative will have a separate set of thumbnails with independent photograph setup, camera views, etc. This is can be a good option if you do not need to compare similar renderings between alternatives.
Alternatives in Paper View

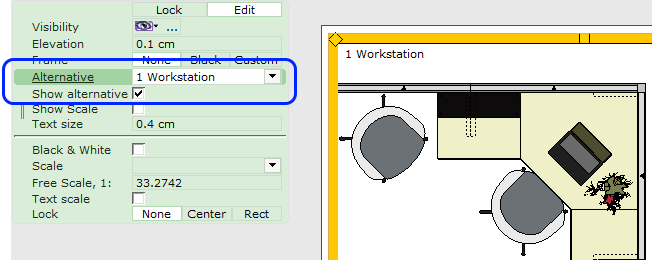

Selecting a Viewport or View Clip in Paper view brings up the quick properties box where you can select which alternative you want visible. For View Clip 2D:s see View, and for Viewport 3D:s, see Alternative.
If you would like the name of the alternative to be displayed in the top left corner of a Viewport 3D, select the Show Alternative checkbox. This is currently not available for View Clip 2D:s.
The Alternative drop-down menu appears for 3D Viewports, Article Views, and Renderings in Paper View.
