Photos that have been rendered in the Photo Lab can be inserted in the paper view. There are two ways to insert a photo; it can either be imported into Paper View or exported from Photo Lab.  Read more about both procedures below.

Importing photo into Paper View

To place a photo in Paper View using the import feature in Paper View, follow these steps:

1. Go to the component tab Tools (paper) in the paper view and click the Photo icon in the Image section:


2. Move the cursor to the paper. A rectangle is attached to the cursor.
3. Click once to set the starting point for the photo and then release the mouse button.
4. Stretch the photo vertically and horizontally to the desired size by moving the mouse.
5. Click once to set the ending point for the photo. Yellow snap points become visible on the photo and an property box is displayed in the top left corner.
6. Select the desired photo from either the drop-down menu Photo or click the Choose… button to select from a list of thumbnails. If Photo Lab does not contain any photos, the property box displays a New button. Click this button to create a new photo. You can then double-click on the photo to open Photo Lab for editing and rendering. When you are satisfied, close Photo Lab to return to the Paper View. The photo has been updated to display the changes made in Photo Lab.
7. You can now continue working in the Paper View.

Exporting photos from Photo Lab

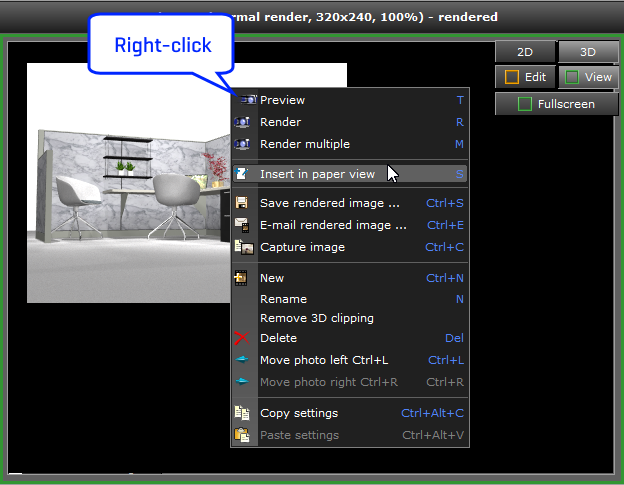

Figure 2: Insert in paper view option in the Photo Lab.

To place a photo in Paper View using the export feature in Photo Lab, follow these steps:

1. Place the cursor over the desired photo in Photo Lab; either on one of the thumbnails at the bottom of the page, or on the photo displayed in the viewing area.
2. Right-click and select Insert in paper view from the context menu:




3. The Paper view opens as a separate window and shows the selected photo inside a viewport.
4. You can now continue working in the Paper View.
